Measure the level of insulation between two contact points with the Chauvin Arnoux CA6240 Microhmmeter. Applications for this tester include contact resistance of switches and circuit breakers, earth continuity evaluations, quality of welding spots, surface condition and metallising, graphite electrode testing and more.

To protect this tester from harm and ensure it is ideal for use out in the field the CA6240 comes built into its own protective carry case with flip-lid. When closed, the screen, knobs and dials are protected from damage and it is possible to carry the tester like a briefcase thanks to an included carrying handle.

Testing with the CA6240 is performed by using a 4-wire testing method, ensuring that the effects of lead resistance and contact resistance is eliminated. This helps to make sure that testing accuracy is as high as possible.

This tester features six separate measurement ranges: 5 to 3999μΩ, 4 to 39.99mΩ, 40 to 399.9mΩ, 400 to 3999mΩ, 4 to 39.99Ω and 40 to 399.9Ω. All tests are carried out with high accuracy of ±0.25% + 2 counts using measurement current of 10A, 1A, 100mA and 10mA.

Chauvin Arnoux CA6240 Microhmmeter Key Features

  • 4-wire measurement method with test current up to 10A and current reversal function
  • Simple operation
  • Automatic measurement mode
  • Manual recording mode
  • Inductive component measurements
  • Measurements are automatically prohibited when disturbance voltage is detected
  • Protection against accidental overload up to 500V
  • Large-size LCD display
  • Six measurement ranges of 5 to 3999μΩ, 4 to 39.99mΩ, 40 to 399.9mΩ, 400 to 3999mΩ, 4 to 39.99Ω and 40 to 399.9Ω

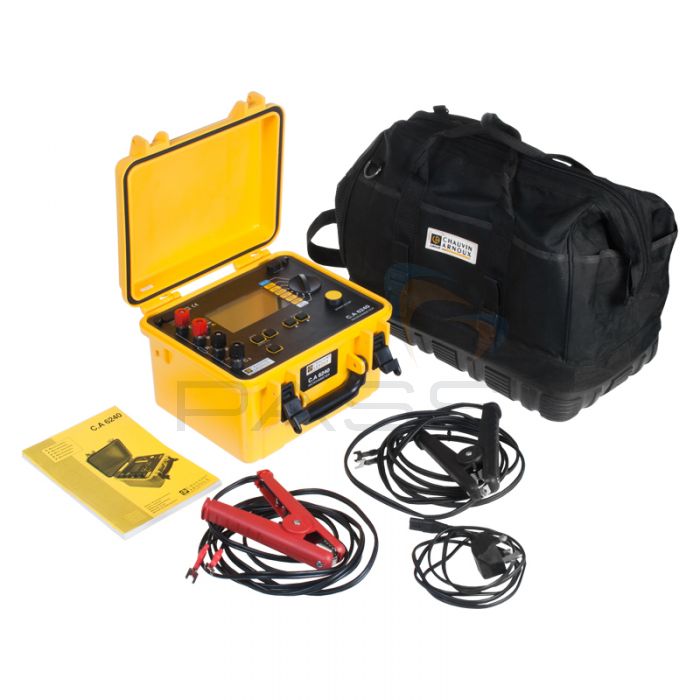

Full List of Products Included

  • Chauvin Arnoux CA6240 Microhmmeter
  • Euro Power Lead (2m)
  • 2 x 10A Kelvin Clamps with 3m Cable
  • Optical/USB Communication Cable
  • Micohmview Software
  • Operating Manual (Simplified and Full)
Part CodeP01143200

Electrical Specifications

Measurement Range    5 to 3,999 µΩ        4 to 39.99 mΩ
   40 to 399.9 mΩ
   400 to 3,999 mΩ
   4 to 39.99 Ω

   40 to 399.9 Ω

Resolution

1 µΩ

10 µΩ

100 µΩ
1 mΩ
10mΩ
100mΩ
Accuracy

±0.25% ±2 counts

Measurement Current

10 A

1A 100mA 10 mA
No-load Voltage

4 to 6 V



General Specifications

  • Connection: 4 screw terminals 4mm in diameter
  • Leakproofing: IP53
  • Automatic power-off
  • Data: optical / USB link
  • Power supply: NiMH rechargeable battery
  • Electrical safety: IEC 61010-1 / CAT III 50V
  • Dimensions: 273 x 247 x 280 mm
  • Weight: 5kg
