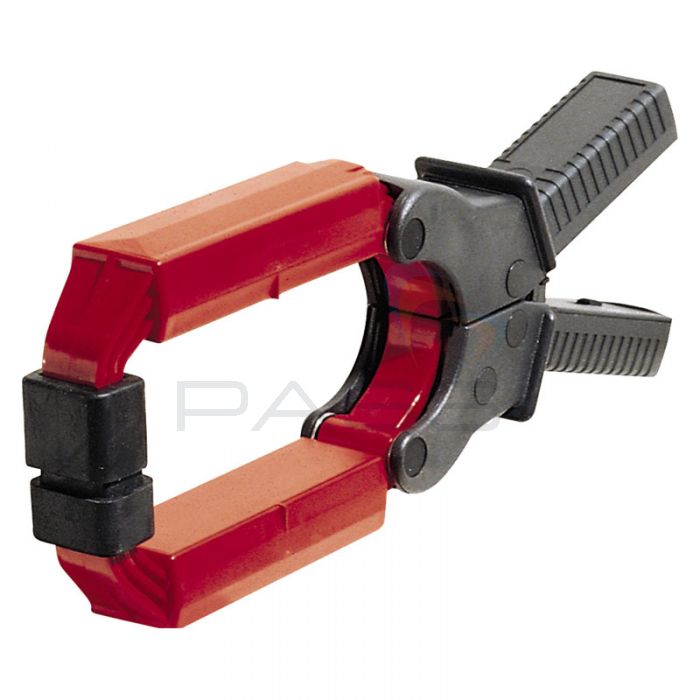

Chauvin Arnoux D33N Current Clamp Adaptor - 2400A AC
- Large-size clamp for use with digital multimeters
- Range to 2300A AC
- Jaw opens to max of 90mm
SKU
P01120052A
MPN
P01120052A
The Chauvin Arnoux D33N is an optional AC current clamp for use with digital multimeters, allowing you to measure current from 1A to 2400A AC.
Equipped with extremely large jaws, the D33N can comfortably fit wires with thickness of up to 64mm inside, or groups of wires with dimensions of 50 x 135mm and 64 x 1000mm. The jaws have maximum opening of 90mm.
Chauvin Arnoux D33N Current Clamp Key Features
- Optional clamp with 4mm jack connectors for use with digital multimeters
- AC current from from 1A to 2400A AC
- Maximum jaw opening of 90mm
- Double insulation or reinforced insulation between primary and secondary circuits
- 600V AC operating voltage
Technical Information
Additional Information
SKU
P01120052A
Manufacturer Part Code
P01120052A
Country of Origin
France
