Designed to be as simple to use as possible, Chauvin Arnoux's pocket-sized MTX202 gives you quick, easy access to basic electrical measurement procedures and is ideal for both experienced and beginner self-employed electricians.

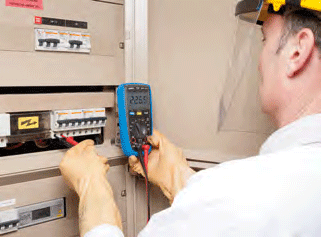

Chauvin Arnoux MTX202 digital multimeters are compact, easy-to-grip and even come with a built-in magnet, allowing the multimeter to be easily fixed to an electrical cabinet or metallic surface for seamless, hands-free use.
Measurement Capabilities
The Chauvin Arnoux MTX202 digital multimeter has the following measurement capabilities:
- AC and DC Voltage Measurements - from 0.4V to 600V (true RMS on AC to ensure accuracy)
- AC/DC Current Measurements - from 0.02A to 10A (true RMS on AC to ensure accuracy)
- Diode Test - to 3V with 0.001V resolution
- Resistance Measurements - from 1Ω to 40MΩ
- Continuity Test - with integrated beeper
- Capacitance Testing - from 1nF to 100mF
- Temperature Measurements - (using type K thermocouple) from -55 to +1200°C
Before testing, you can also use the MTX202 to verify whether there's voltage present thanks to a built-in non-contact voltage detector. If a 230V voltage is detected, the blue backlight on the screen will turn red to ensure you get the message.
Practical Design
Pocket-sided, portable and easy to use, the Chauvin Arnoux MTX202 digital multimeter is designed with practical use in mind.
- 19mm Spaced Test Lead Slots - fix your test leads to the pack of the multimeter, ideal for use on European power sockets
- Built-in Stand - fix the meter in a specific position, making it easy to view when working on a bench in a lab etc
- Integrated Torch Light - see where you're going even when working in the dark
- Quick Access to Fuse and Batteries - just two screws for quick, easy access
- Data Hold Function - press the button to temporarily freeze the current values shown on the screen
- Selectable Auto/Manual Ranging - press the range button to easily switch between automatic or full manual control over measurement ranges
- Rotary Dial Test Selection - easy to use with just 1 finger, with 1 position for every measurement type
- Backlit Monochrome Digital Display with Backlight - glows blue for use in poor lighting conditions. Measures 52 x 37mm
- Compatible with Chauvin Arnoux MulitFix accesory - allows the meter to be installed in cabinets etc
- Safety In Mind - the MTX202 is IP54 protected, operates from -20 to +55°C, is double insulated and CAT III 600V rated

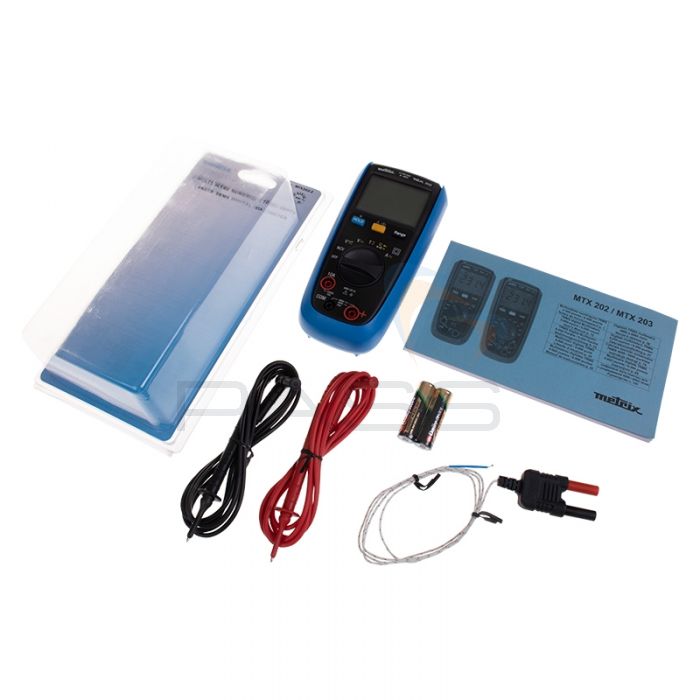

What's Included?
- Chauvin Arnoux MTX202 Multimeter
- Shockproof Sheath
- 1.5m Lead with 4mm Diameter Elbowed Plug + Red CAT III 600V Test Probe
- 1.5m Lead with 4mm Diameter Elbowed Plug + Black CAT III 600V Test Probe
- Flexible K Thermocouple with 4mm Diameter Adapter
- Operating Manual
- 2 x 1.5V AA Batteries
Optional Accessories
- P01102100Z: MultiFix Mounting Accessory for Digital Multimeters
- P01102097: SHT40KV HV Probe
- P01102107Z: Adapter + TK Temperature Sensor
- HX0064: CMS Clamp
- P01297096: F1000V 10A Fuse, 10 x 38mm (x5)
- P01297098: F1000V 0.63A Fuse, 6.3 x 32mm (x5)
- HX0052B: MTX Digital Multimeter Transport Kit
Chauvin Arnoux MTX202 Technical Specifications
AC Voltage | |
Range | 0.4 to 600V |
Basic Accuracy | 0.2% + 2D |
Resolution | 0.001V |
DC Voltage | |
Range | 0.4 to 600V |
Basic Accuracy | 0.2% + 2D |
Resolution | 0.001V |
AC/DC Current | |
Range | 0.02A to 10A |
Basic Accuracy | 1% + 5D |
Resolution | 0.001A |
True RMS AC Bandwidth | 1kHz for voltage and current |
Temperature | |
Range | -55 to +1200°C |
Accuracy | 2% |
Resolution | 0.1°C |
Resistance | |
Range | 1Ω to 40MΩ |
Accuracy | 0.5% + 5D |
Resolution | 0.1Ω |
Continuity | |
Range | 600Ω - beep <50Ω |
Capacitance | |
Range | 1nF to 100mF |
Accuracy | 2% + 5D |
Resolution | 0.001nF |
Additional Specs | |
Protection | IP54 |
Safety | IEC 61010-2-033 600V CAT III |
Power Supply | 2 x 1.5V AA batteries / LR6 / NEDA15A |
Dimensions | 170 x 80 x 50mm |
Weight | 320g |
Warranty | 2 years |
SKU | MTX202-Z |
---|---|
Manufacturer Part Code | MTX202-Z |
Country of Origin | China |
