Chauvin Arnoux MX1 Analogue Multimeter

Reward Points (?)

Logged in, worth £2.90, read more.

£174.00 £145.00
Only 1 in Stock Free UK Delivery* Delivery Options

UK - Zone 1 Orders

England, Wales & most of Scotland.

Free 3-5 Working Day1
Orders Over £99 & Selected Items

Economy 2-3 Working Day1
From £1.95

Tracked 2-3 Working Day

Express Next Working Day

Priority Next Working Day
£14.95 (Pre-Noon)
£19.95 (Pre-10:30am)

Saturday & Sunday
£14.95 (Pre-Noon)

UK - Zone 2 Orders

Highlands, Islands & Northern Ireland.

Free 3-5 Working Day1
Selected Items (Calculated at Checkout)

Economy 2-3 Working Day2
From £1.95

Tracked 2-3 Working Day

International Orders

Delivery is calculated at checkout.

Note: Next day delivery is not guaranteed for orders placed after 3:00pm. Prices Ex VAT.

1, 2 See delivery page for more details.

Advice & Support
Price Match Request

The Chauvin Arnoux is a rugged and highly durable analogue multimeter with water-resistant casing. Ideal for those tough environments like industrial areas!

As it is an analogue digital multimeter, the MX1 has a needle scale rather than digital readout. It can be used to measure DC voltage from 150mV to 600V, AC voltage from 5V to 600V, DC current from 50μA to 10A, AC current from 500μA to 10A and resistance from 20kΩ to 2MΩ. It can also perform diode tests and continuity tests (with integrated buzzer).

The MX1 is made with safety in mind; it has a shockproof sheath, protection on all ranges with an ultra-fast electronic system and HRC fuse protection on current measurements, double insulation up to 1500V and SECUR'X locking system which prevents accidental disconnection of measurement leads/unwanted opening of the battery compartment.

Chauvin Arnoux MX1 Analogue Multimeter Key Features

  • Measure DC voltage from 150mV to 600V
  • Measure AC voltage from 5V to 600V
  • DC current measurements from 50μA to 10A
  • AC current measurements from 500μA to 10A
  • Resistance measurements from 20kΩ to 2MΩ
  • Diode test
  • Continuity test with integrated buzzer
  • Blown fuse LED indicator
  • Audible alarm in resistance mode when mains AC voltage is present on input
  • IP65 watertight rugged casing

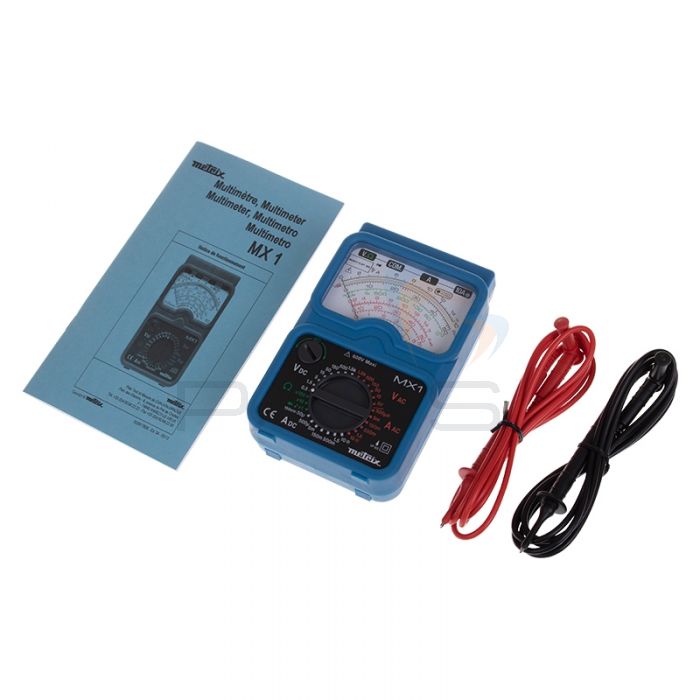

What's Included?

  • Chauvin Arnoux MX1 Analogue Multimeter
  • Leads
  • Battery
  • Operating Manual
Accessories related to this product:
Part CodeMX1
