Chauvin Arnoux PEL113 Power & Energy Logger, Contractors Kit
Free PASS Football (Spend £250+)
Free Gift
- AC/DC voltage up to 1000V
- Active energy values
-
MA194‑350 MiniFlex sensors
- Hard case
SKU
KPEL113MA194HC
MPN
KPEL113MA194HC
The Chauvin Arnoux PEL113 features three voltage and three current inputs, displayed on a four-section backlit display. It captures extensive electrical parameters, including active, reactive, harmonic, and apparent energy. Phase-powered for easy installation without interrupting the mains, the PEL113 stores all measurements on a removable SD card for later analysis. This contractor's kit includes a hard case and MA194‑350 MiniFlex sensors with an adapter. For further information, please visit our Chauvin Arnoux PEL113 Power & Energy Logger listing.
Unboxing the Chauvin Arnoux PEL113 Power & Energy Logger
Key Features
- Electrical monitoring instrument with three voltage and three current inputs
- Quadruple, backlit display
- Identify sources of energy loss
- Optimise energy efficiency
- Record electrical parameters over serveral months
- Break down energy losses
- Self-powered via the phase
- Can be installed without cutting off the mains supply
- Useful energy
- Unbalance active energy
- Harmonic active energy
- Non-active energy
- Reactive energy
- Distorting energy
- Apparent energy
- RMS and DC measurement with 128 samples/cycle simultaneously on each phase
- AC/DC voltage up to 1000V
- Current up to 10 kA AC, 5 kA DC (depending on the current sensor)
- Active, reactive (N, D, QF) and apparent power values
- Active energy values
- Fundamental active power values (Pf)
- Balanced active power values (P+)
- Unbalance active power (Punb)
- Motor measurement and characterisation
- Breakdown of energy losses
- Phase data: cos, tan, power factor (PF)
- Crest factor
- THD calculation for currents and voltages
- DC, 50Hz, 60Hz, and 400Hz (Naval, etc)
- Voltage and current ratios provide an extensive measurement range
- Automatically recognises the connected sensor type
- Data is saved to a removable SD card
- PEL Transfer Software for configuration, analysis, and reporting
- Android application with motor diagnostics
- Ethernet
- Wi-Fi
- IRD DataView® Synch
- USB interface
- Suitable for renewable energies, process industries, building, construction, renovation, public services/transport, and datacentres
- Ideal for energy audits and preventative and predictive maintenance
- A comprehensive electricity monitoring tool
What's Included?

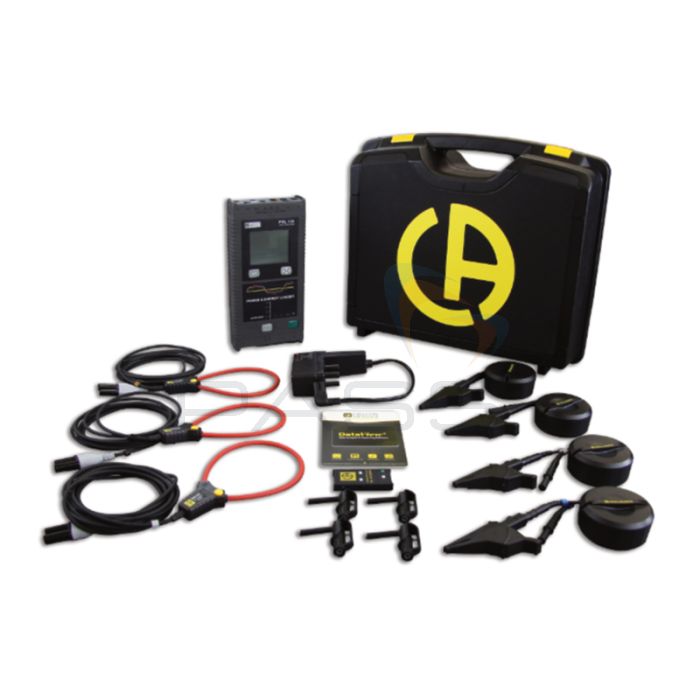

- Chauvin Arnoux PEL113 Portable & Energy Logger
- 4x Voltage Cables
- 4x Crocodile Clips
- 1x Set of Inserts/Rings
- SD Card
- SD Card-USB Adapter
- USB Cable
- PEL Transfer Software
- Quick Start Guide
- MA194-350 MiniFlex Sensors & Adapter
- Hard Case
Call for Pricing
Call 01642 931 329 or complete the form:
Offers
Free PASS Football (Spend £250+)
Automatically adds to your basket when the total exceeds £250+ (ex VAT). Limited Stock. More details here.
Free Dataview Software
- Free Chauvin Arnoux DataView Software - DATAS-PROMO, typically £395.00
Technical Information
Specification
Chauvin Arnoux PEL110 Series Power & Energy Logger Technical Specifications
| PEL112 | PEL113 | PEL115 | |
| Display | None | Quadruple digital display | |
| Types of installations | Single-phase, split-phase, three-phase with or without neutral, and many other specific configurations | ||
| Number of channels | 3 voltage inputs, 3 current inputs (neutral current calculated) | 4 voltage inputs, 4 current inputs | |
| Measurements | |||
| Network frequencies | DC, 50 Hz, 60 Hz and 400 Hz | ||
| Voltage (measurement ranges) | 10.00 - 1,000 Vac / 100.00 – 1,000 Vdc | ||
| Current (see previous page) | 5 mAac to 10 kAac / 50 mAdc to 5 kAdc | ||
| Calculated measurements | |||
| Ratio | Up to 650,000 V / up to 25,000 A | ||
| Power (P, Pf, P+ , Punb, Qf, N, D, S) |
10 W to 10 GW / 10 var to 10 Gvar / 10 VA to 10 GVA | ||
| Energy | Up to 4 EWh / 4 EVAh / 4 Evarh (E = 1018) | ||
| Phase | cos φ, tan Φ, PF | ||
| Harmonics | THD | ||
| Additional functions | |||
| Phase order | Yes | ||
| Min / Max | Yes | ||
| Alarm | Yes | ||
| Mounting | Magnet | Hook (Opt.) | |
| Recording | |||
| Acquisition rate / Aggregation period | 5 measurements/s - 1 min to 60 min | ||
| Data storage | SD card, 8 GB (up to 32 GB on SD-HC card) | ||
| Communication | USB, Ethernet, Wifi (Access point and Hotspot), IRD Server DataView® Synch | ||
| Power supply | 110 V - 250 V (+10 %, -15 %) at 50-60 Hz & 400 Hz | Powered by the phase – 1,000 V AC/DC | |
| Safety | IEC 61010 600 V CAT IV and 1000 V CAT III | IEC 61010 1000 V CAT IV | |
| Mechanical Specifications | |||
| Dimensions | 256 x 125 x 37 mm without sensor | 245 x 270 x 180 mm without sensor | |
| Weight | 900 g | 950 g | <3400 g |
| Casing | IP54 | IP67 | |
| Operating temperatures | -20 °C to +50 °C | 0 °C to +50 °C | -20°C to +50 °C |
Document Downloads
Chauvin Arnoux PEL110 Power & Energy Logger - Datasheet
Chauvin Arnoux PEL112 & PEL113 Power & Energy Logger - User Manual
Chauvin Arnoux Reeling Box - User Manual
Chauvin Arnoux PEL110 Power & Energy Logger - Quick Start Guide
Chauvin Arnoux PEL Adapter - Instruction Sheet
Chauvin Arnoux PEL110 Power & Energy Logger - Motor Sensor Application Note
Chauvin Arnoux PEL110 Power & Energy Logger - IRD Server Application Note
Additional Information
SKU
KPEL113MA194HC
Manufacturer Part Code
KPEL113MA194HC
Chauvin Arnoux PEL113 Power & Energy Logger, Contractors Kit
