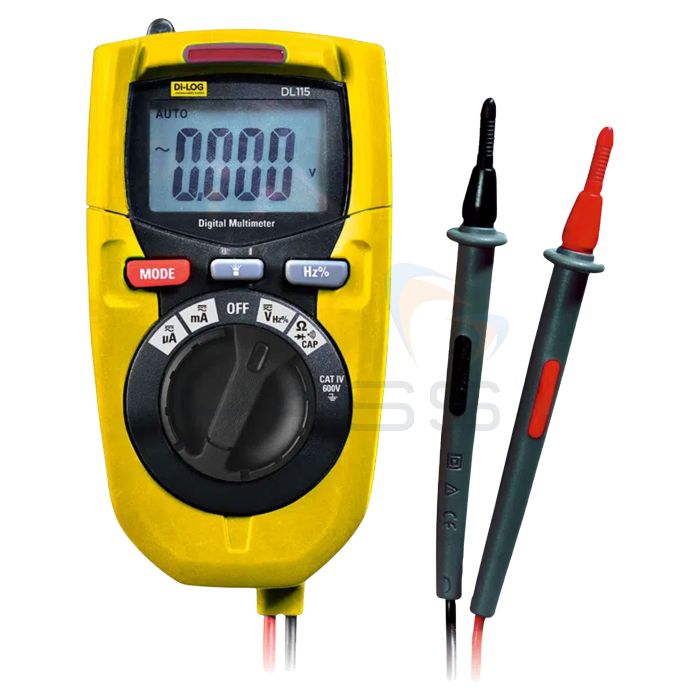

Di-Log DL115 3-in-1 Pocket Digital Multimeter, 600V

The Di-LOG DL115 combines electrical measurement, non-contact voltage detection and an ultra-bright LED flashlight in a pocket-sized design. CAT IV-rated for use in high-energy environments, it features auto-ranging for voltage, current, resistance, capacitance and frequency measurements, plus a 4000-count backlit display and audible continuity indication. Its rugged 105 × 60 × 38 mm housing weighs just 145 g, making the DL115 a practical choice for electricians, technicians and engineers carrying out everyday testing and fault-finding.

Key Features

• AC & DC Measurement: Handles both DC voltage (400 mV to 600 V) and AC voltage (4 V to 600 V) with solid accuracy for general use
• Current Range for Low-Power Circuits: Measures DC and AC from 400 µA to 200 mA, suitable for small electronics and control systems
• Wide Resistance Range: Detects resistance from 400 Ω up to 40 MΩ, perfect for fault-finding and circuit analysis
• Capacitance & Frequency Checks: Measures up to 100 µF capacitance and frequencies up to 10 kHz, helping with capacitor testing and signal tracking
• Non-Contact Voltage Detection: Detects live voltage in the 100-600 V AC range without physical contact—an essential safety feature
• Audible Continuity & Diode Test: Clear audio signal for continuity testing and dedicated diode check for quick circuit verification
• Auto-Ranging Simplicity: Automatically selects the optimal measurement range, making operation fast and foolproof
• Backlit 4000-Count Display: Crisp, backlit LCD screen displays values clearly, even in dim work environments
• Slim & Tough Housing: Compact dimensions of 105 x 60 x 38 mm with a fixed probe layout and sturdy construction for day-to-day reliability
• Lightweight Design: Weighs just 145 g, making it ideal for technicians and engineers on the move

What's Included?

• DL115 3-in-1 Digital Multimeter
• Carry Case
• Batteries
• Instruction Manual
