Dilog SL300 Advanced Solar PV Kit

This special solar kit comes with everything installers will need to assist with the installation of solar PV systems.

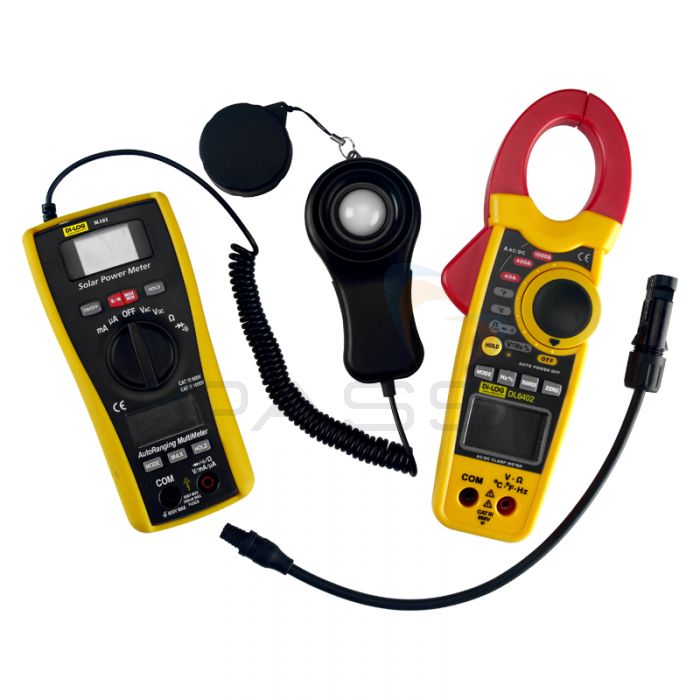

The kit comes with two meters, a Dilog SL102 solar irradiance meter and a DL6402 AC/DC current clamp for checking the efficiency of the solar installation. A handy carrying case is also included for both meters.

DiLog’s SL102 is a portable, multimeter-shaped and sized irradiance tool suitable for carrying out solar irradiance measurements from 1999W/m² or 634BTU/ft2*h. It also features a dual display for simultaneous irradiance and voltage measurements, can record MIN/MAX values, has an auto holding facility and audible continuity/diode testing.

The DL6402 has jaw opening of 30mm for use on smaller to medium conductors. Once clamped on this tester can evaluate both AC/DC current to 1000A and also includes a suite of multimeter functions such as audible continuity, temperature testing and frequency/capacitance.

DiLog SL102 Solar Irradiance Meter Key Features

• Solar irradiance measurements from 1999W/m² or 634BTU/ft2*h
• Dual display for simultaneous irradiance and voltage measurements
• MIN/MAX mode
• Auto data hold automatically stores the last value taken temporarily
• AC/DC voltage measurements to 600V
• Audible continuity and diode testing
• AC/DC current testing to 200mA

DiLog DL6402 AC/DC Clamp Meter Key Features

• Audible continuity testing
• AC/DC voltage testing to 600V
• Backlit display
• Electronic overload protection
• 1000A AC/DC current testing
• 30mm jaws
• Frequency and capacitance
• Temperature measurements via thermocouple

What’s Included In the Kit?

• DiLog SL102 Solar Irradiance Meter
• DiLog DL6402 AC/DC Clamp Meter
• Carrying Case
