The Extech DL160 allows users to simultaneously measure two inputs at the same time, so it's possible to either measure two AC voltage inputs together, two AC inputs together, or a mixture of both over time.
Capable of storing up to 256,000 readings, the DL160 is ideal for constantly monitoring a system and allows users to adjust the sample rate between a range of 1 second per reading up to reading once every 24 hours. This data is automatically stored on the tester as a downloadable reading, and by hooking the DL160 up to PC users can analyse the data by downloading the DL160 Windows Software.
Readings are stored with exact measurement data, a time stamp, and also with MIN/MAX measurements.
Extech DL160 Dual Input True RMS AC Voltage/Current Datalogger Key Features
- Simultaneously measure two AC Voltage inputs or two AC Current inputs or one AC Voltage and one AC Current Input
- Readings can be downloaded to your PC via the USB interface and analyzed using the DL160 Windows Software or exported to a spreadsheet
- LCD indicates time/date, current readings, and Min/Max
- Auto Power off and battery check

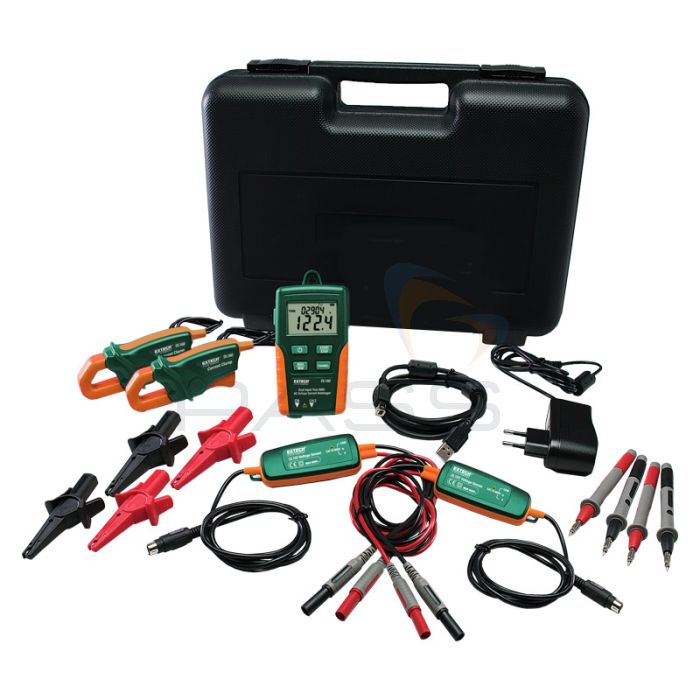

Full List of Products Included
- Extech DL160 Dual Input Datalogger
- 2 x Current Sensor Modules
- 2 x Voltage Sensor Modules
- 2 x Sets of Test Leads
- 2 x Sets of Alligator Clips
- USB Cable
- Universal AC Adaptor
- 4 x AAA Batteries
- Carry Case
Extech DL160 Technical Specifications
Function | Range | Resolution | Basic Accuracy |
AC Current | 10 to 200A | 0.1A | ±(2% rdg ± 1A) |
AC Voltage | 10 to 600V | 0.1V | ±(2% rdg ± 1V) |
Memory | 256,000 points | ||
Sampling Rate | 1 second to 24 hours | ||
PC Interface | USB includes software | ||
Power | 4 x AAA batteries | ||
Dimensions | 4.5 x 2.5 x 1.3" (114 x 63 x 34mm) | ||
Weight | 8.7oz (248g) |
SKU | DL160 |
---|---|
Manufacturer Part Code | DL160 |
Model Ref | Extech DL160 |
Country of Origin | China |
