FilesThruTheAir EL-SGD 43-ATP EasyLog Touch Display 4Ch Temp Data Logger - Choice of 4.3 or 7" Screen
Free Tyre Inflator (Spend £1000+)
- Measurement range: -40°C to +125°C (-40°F to +257°F)
- Store up to 100 000 readings per channel
- Available with a 4.3” or 7” touchscreen display
SKU
EL-SGD-43/70-ATP

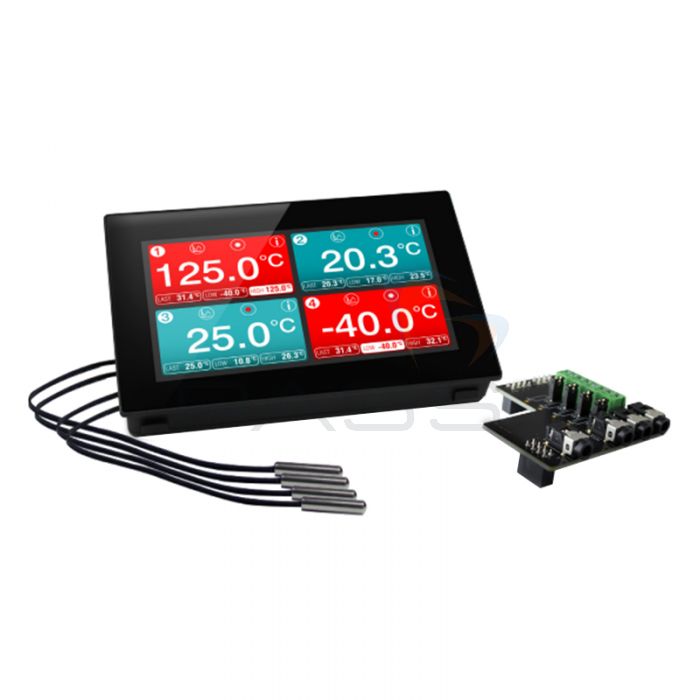

The FilesThruTheAir EL-SGD43-ATP Data Logger is a four-channel temperature data logger based on the PanelPilotACE platform. It is available with a 4.3” or 7” panel mounted display module with a capacitive touchscreen. Both models are supplied with four 1m thermistor probes that can measure temperatures between -40°C and +125°C (-40°F to +257°F) to an accuracy of ±1.0°C (±1.8°F). The FilesThruTheAir EL-SGD 43-ATP Data Logger displays temperatures to a 0.01°C (0.01°F) resolution.
Via the FilesThruTheAir EL-SGD 43-ATP Data Logger’s display, you can view real-time readings for all four temperature channels and live graphs. It also provides access to a suite of real-time data analysis information. Additionally, the FilesThruTheAir EL-SGD 43-ATP Data Logger can store up to 100 000 readings per channel and can be set to record data at a rate ranging from every five seconds to every twelve hours. Data may be downloaded using the FilesThruTheAir EL-SGD 43-ATP Data Logger’s USB interface and FilesThruTheAir’s Device Utility Software (available as a free download from FilesThruTheAir).
The FilesThruTheAir EL-SGD 43-ATP Data Logger is an advanced, four-channel temperature data logger.
How to Set Up the FilesThruTheAir EL-SGD43-ATP Data Logger
How to set up your PanelPilot EL-SGD 43 & EL-70-ATP
FilesThruTheAir EL-SGD 43-ATP Data Logger Key Features
- A four-channel temperature data logger based on the PanelPilotACE platform
- Available with a 4.3” or 7” touchscreen display
- 4x 1m thermistor probes
- Measurement range: -40°C to +125°C (-40°F to +257°F)
- Accuracy: ±1.0°C (±1.8°C)
- Resolution: 0.01°C (0.01°F)
- View real-time readings for all four channels
- View live graphs
- Suite of real-time data analysis information
- Store up to 100 000 readings per channel
- Record data at rates ranging from every five seconds to every twelve hours
- USB interface
- Download data via the USB interface and using FilesThruTheAir’s Device Utility Software
- An advanced, four-channel temperature data logger
What’s Included?
- Your Choice of either a 4.3” or 7” PanelPilotACE Display with Mounting Kit
- Four-Channel Thermistor Add-on Board
- 4x 1m Thermistor Probe with 3.5mm Plug
- Mini USB Cable
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
Files Thru The Air EL-SGD 43-ATP EasyLog Touch Display 4Ch Temp Data Logger Technical Specifications
| Supplied probe measurement range | -40°C to +125°C (-40°F to +257°F) |
| Internal Resolution | 0.01°C (0.01°F) |
| Temperature Accuracy | ±1.0°C (±1.8°F)* |
| Number of Readings (per channel) | 100,000 |
| Logging Rate | 15 seconds to 12 hours |
| Number of Channels | Up to 4 |
| Outside Dimensions | 119.3 x 79.8 x 31.3 mm (4.7 x 3.1 x 1.2 in) |
| Communications Protocols | USB |
| Note | * Between -5°C and 40°C without offset calibration. Between -40°C and +125°C with offset calibration applied. |
