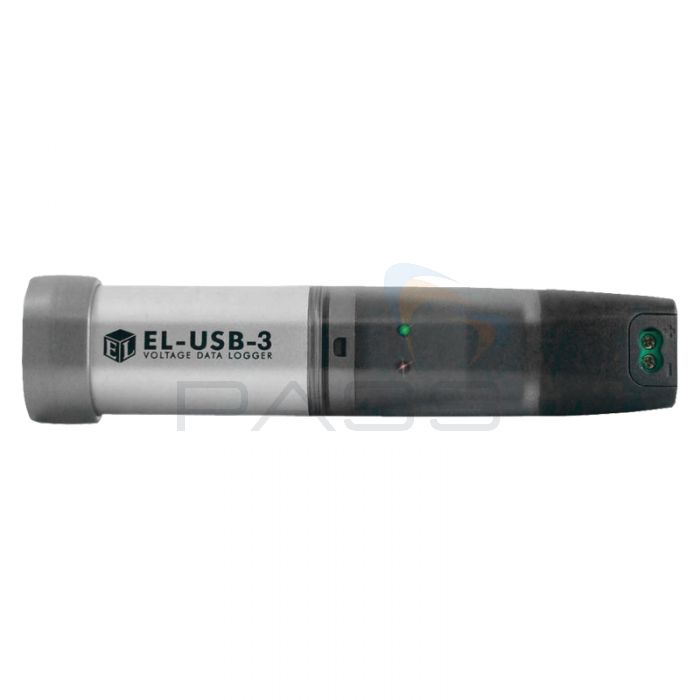

FilesThruTheAir EL-USB-3 EasyLog USB Voltage Datalogger

Using the two screw terminals, connect this logger directly to a voltage source to constantly log voltage from 0-30V DC.

Shaped like a pen with a USB connector on one end, the EL-USB-3 interfaces directly with a PC so that the user can configure the logging rate, start time and alarm thresholds before logging begins. Once done, simply mount the logger where you want, leave it to log and download the data to your PC as needed.

Up to 32,150 individual voltage readings can be stored directly on this logger. The logging rate can be adjusted between a range of 1 second to every twelve hours and if any readings are outside set alarm thresholds, the EL-USB-3 will use LED light indicators to alert those around.

This product comes with an internal lithium battery which will last on average for two years. It is also supplied with a set of measurement leads which terminate in crocodile clips.

FilesThruTheAir EL-USB-3 EasyLog USB Voltage Datalogger Key Features

  • 0-30V DC measurement range
  • Logging rate can be set between a range of every second to every 12 hours
  • Stores up to 32,510 readings
  • Connection via two screw terminals
  • USB interface – connect to PC to adjust logging rate and alarm thresholds
  • Compact, pen-shaped design allows the unit to be mounted in any application
  • Status indication using red and green LED indicators
  • Replaceable internal lithium battery
  • Free Windows control software
  • Includes set of measurement leads with crocodile clips

FilesThruTheAir EL-USB-3 Technical Specifications

Specifications Minimum Typical Maximum
0-30V DC Measurement Range 0V   30V
Internal Resolution   50mV DC
Accuracy (Overall Error)   ±1%
Logging Rate Every 1sec   Every 12 hours
Operating Temperature Range -35°C (-31°F)   +80°C (+176°F)
Batery Life   1 year (depending on ambient temperature, logging rate and use of alarm LED
