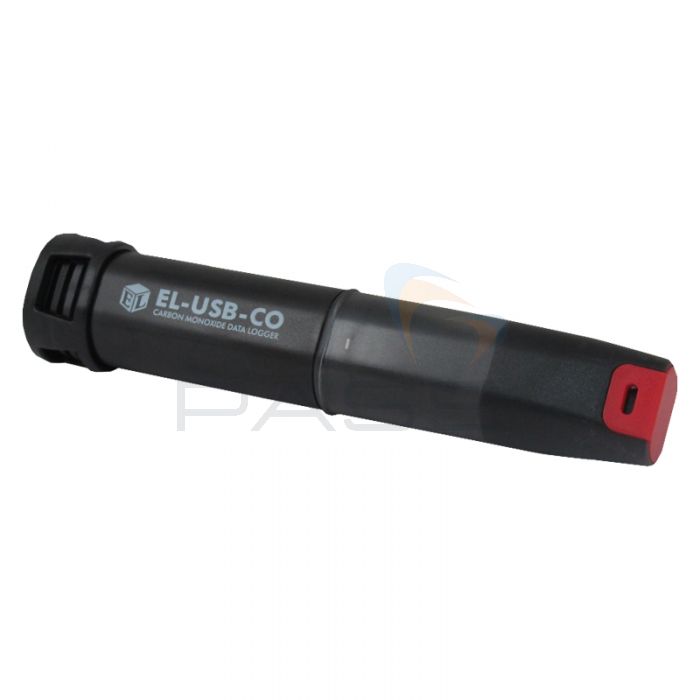

FilesThruTheAir EL-USB-CO Carbon Monoxide USB Datalogger
- Two models available - standard and high accuracy
- Configurable logging rate
- Stores over 32000 readings
SKU
FTTA-EL-USB-CO
MPN
EL-USB-CO
Note: there are two versions of this product available. The EL-USB-CO300 has a lower measurement range but is more accurate.
Place the EL-USB-CO in an area to constantly monitor and record the value of carbon monoxide (CO) present in the air.
Fully configurable, the logger’s settings, including start time and logging rate, can be adjusted by plugging it into PC (via the USB connector) and using the included software package.
The logger is designed to be used for extensive periods and has a long length, fully rechargeable battery. It can store a total of up to 32510 carbon monoxide readings for as long as it remains active, and this data can then be transferred to PC for further analysis in the software.
This product is not a suitable substitute for a domestic or industrial carbon monoxide detector/alarm.
FilesThruTheAir EL-USB-CO Carbon Monoxide USB Datalogger Key Features
- Can measure CO (carbon monoxide) levels from 0 to 1000ppm
- Storage of up to 32,510 measurements
- User-programmable warning threshold with bright visual/audible warnings
- USB connector – adjust settings and download data to PC
- Expected sensor life of 4 years
What’s Included?
- FilesThruTheAir EL-USB-CO Carbon Monoxide USB Datalogger
- Replaceable Lithium battery
- Windows Control Software
Technical Information
Specification
FilesThruTheAir EL-USB-CO Technical Specifications
| Specifications | Minimum | Typical | Maximum |
| Measurement Range | 3ppm CO | - | 1000ppm CO |
| Internal Resolution | - | 0.5ppm CO | - |
| Accuracy (Overall Error) | ±2ppm | ±6% | - |
| Repeatability | - | ±3% | - |
| Long Term Drift | - | - | 5%/year |
| Zero Offset | - | ±2ppm CO | - |
| Response Time (To Reach 90%) | - | 1 minute | - |
| Logging Rate | Every 10 seconds | - | Every 5 minutes |
| Operating Temperature Range | -10°C (+14°F) | - | +40°C (+104°F) |
| Operating Pressure Range | 900mBar | - | 1100mBar |
| Battery Life | - | - | 3 months |
Document Downloads
Additional Information
SKU
FTTA-EL-USB-CO
Manufacturer Part Code
EL-USB-CO
