FLIR A40 Early Fire Detection Kit
Free Tyre Inflator (Spend £1000+)
- Flexible Scene Enhancement
- MSX Image Enhancement
- 29°, 51° & 95° lenses
SKU
A40-EFD-KITS
FLIR A40 Thermal Camera – Early Fire Detection Kit
The FLIR A40 Thermal Camera Early Fire Detection Kit is an automated monitoring set specifically designed for detecting hot spots (potential precursors to fires) in industrial environments such as data centres, waste/recycling facilities, and manufacturing/utilities plants.
The kit includes a FLIR A40 Advanced Smart Sensor Thermal Camera with your choice of lens, an IP67 housing, and a sunshield.

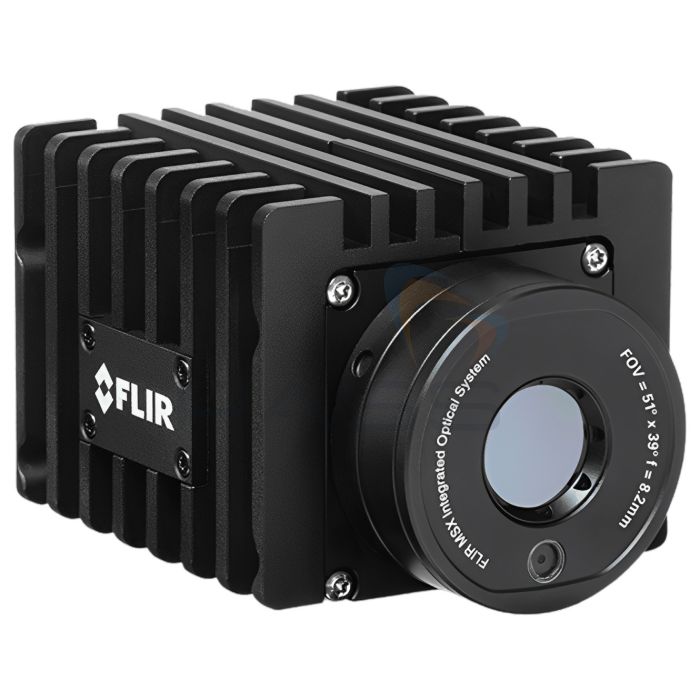

FLIR A40 Advanced Smart Sensor Thermal Camera
The FLIR A40 Advanced Smart Sensor Thermal Camera is an automated thermal camera suitable for condition monitoring and early fire detection. It offers an IR resolution of 320 x 240px, MSX imaging (except models with a 95° lens), FSX technology, and built-in analytics and alarms. In addition to this, the rugged and ergonomic FLIR A40 integrates seamlessly with condition monitoring/video management systems.
The FLIR A40 Advanced Smart Sensor Thermal Camera is available with your choice of lens. Choose from 29°, 51°, or 95° lenses.
Discover the FLIR A40 Advanced Smart Sensor Thermal Camera

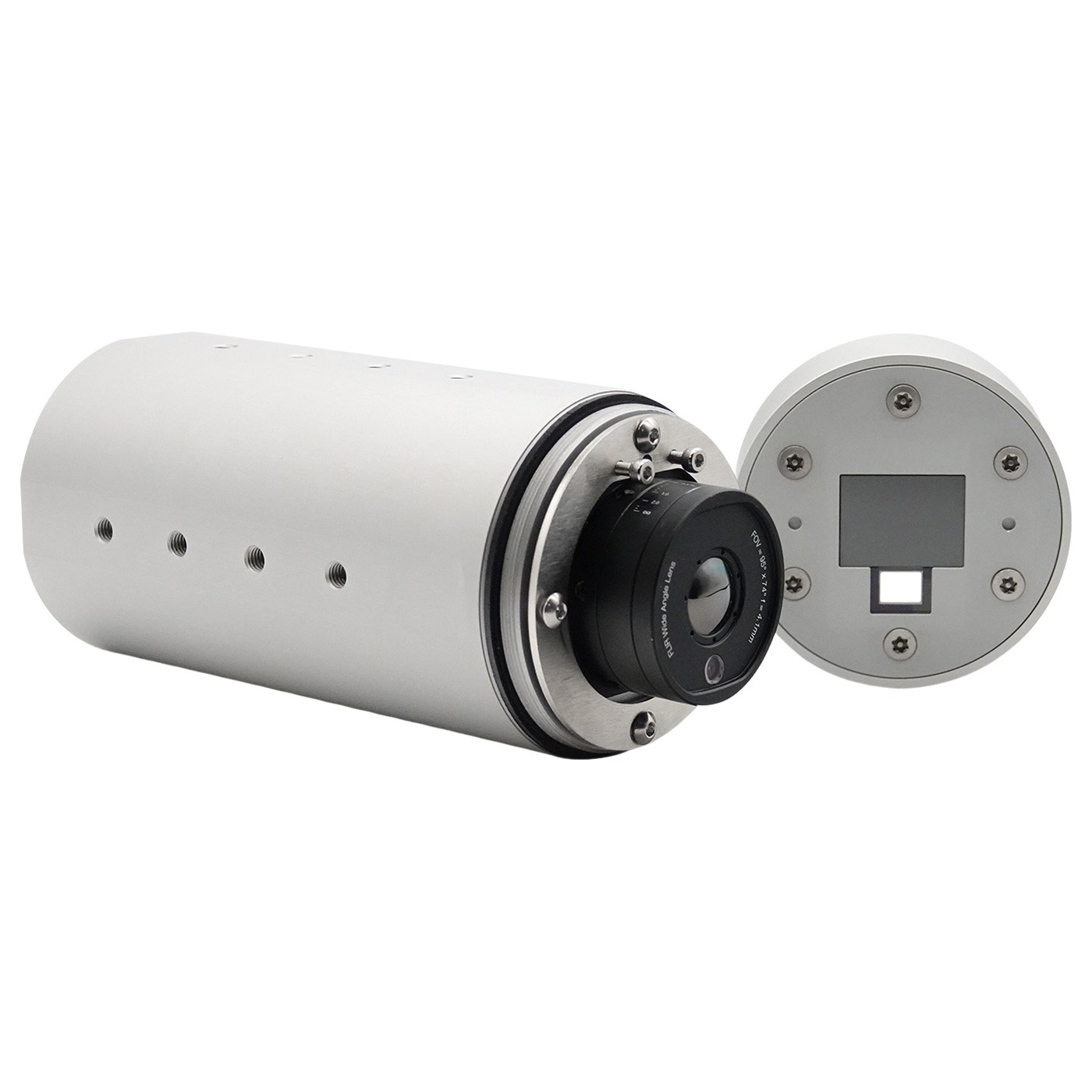

FLIR A-Series IP67 Housing
This aluminium housing protects the FLIR A40 Thermal Camera from dust and water ingress. It is IP67 rated and includes windows for the A40’s thermal and visual sensors, ensuring the camera's coverage is not impeded. Moreover, FLIR’s proprietary radiometric formulas ensure the FLIR A40’s accuracy remains within specification.
View the FLIR A-Series IP67 Housing
FLIR Sunshield for IP67 Housing
FLIR’s sunshield with adjustable positioning can be fitted to the IP67 housing.
Videos
FLIR A40: The Thermal Camera That Detects Hidden Faults Instantly!
What's Included?
- FLIR A40 Advanced Smart Sensor Thermal Camera with Your Choice of Lens
- FLIR A-Series IP67 Housing (T912493)
- FLIR Sunshield for IP67 Housing (T912378)
- Ethernet Cable M12 to RJ45 10m (T911855ACC)
- U Bracket for FLIR A-Series IP67 Housing (T912370)
Product Range
- FLIR A40-FIREDET-KIT-29 A40 Early Fire Detection Kit, 29° Lens
- FLIR A40-FIREDET-KIT-51 A40 Early Fire Detection Kit, 51° Lens
- FLIR A40-FIREDET-KIT-95 A40 Early Fire Detection Kit, 95° Lens
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Image and Optical Data | |
|---|---|
| IR Resolution | 320 × 240 |
| Visual Resolution | 1280 × 960 |
| Thermal Resolution | 29°: <35 mK 51°: <35 mK 95°: <35 mK |
| Focus | Fixed, adjustable, with included focus tool |
| Spatial Resolution (IFOV) | 29°: 1.7 mrad/pixel 51°: 3.0 mrad/pixel 95°: 5.8 mrad/pixel |
| FOV Options | 29° 51° 95° |
| Detector Pitch | 25 µm |
| Spectral Range | 7.5-14.0 µm |
| Frame Rate | 30 Hz |
| Measurement | |
| Object Temperature Range | -20°C to 250°C (-4°F to 482°F) 175°C to 1000°C (347°F to 1832°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Analysis | |
| Standard Functions | 10 Spotmeters 10 Boxes or Polygons 3 Deltas (difference any value/reference/external lock) 2 Isotherm (above/below/interval) 2 Iso-coverage 2 Lines 1 Polyline 1 Reference temperature |
| Automatic Hot/Cold Detection | Max./Min. temperature value and position shown within the box |
| Measurement Frequency | Up to 10 Hz |
| Measurement Result Read-out | EtherNet/IP (pull), Modbus TCP server/client (pull) MQTT (push) Query over REST API (pull) Measurements and still image (radiometric JPEG Visual 640 × 480 Visual 1280 × 960) Read access only Web interface |
| Alarm | |
| Alarm Function | On any selected measurement function, digital in, and internal camera temperature |
| Alarm Output | Digital out, e-mail (SMTP) (push), EtherNet/IP (pull), file transfer (FTP) (push), Modbus TCP server (pull), MQTT (push), Query over RESTful API (pull), and store image or video |
| Video Streaming, RTSP | |
| Unicast | Yes |
| Multicast | Yes |
| Radiometric RTSP | Compressed JPEG-LS (FLIR Radiometric) |
| Multiple Image Streams | Yes |
| Video Stream 0 | |
| Streaming Resolution | 320 × 240 |
| Source | Visual / IR / MSX® (*Not available in the 95°) / FSX® |
| Contrast Enhancement | FSX® / Histogram equalisation (IR only) |
| Overlay | With/Without |
| Encoding | H.264, MPEG4, or MJPEG |
| Video Stream 1 | |
| Streaming Resolution | 1280 × 960 |
| Source | Visual |
| Overlay | No |
| Encoding | H.264, MPEG4, or MJPEG |
| Ethernet | |
| Interface | Wired |
| Ethernet Connector Types | M12 8-pin X-coded, female |
| Ethernet Type & Standard | 1000 Mbps, IEEE 802.3 |
| Ethernet Power | Power over Ethernet, PoE IEEE 802.3af class 3 |
| Ethernet Protocols | EtherNet/IP, Modbus TCP Server, MQTT, SNMP, TCP UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP |
| Digital Input/Output | |
| Connector Type | M12 Male 12-pin A-coded (shared with external power) |
| Digital Input | 2× optoisolated, Vin (low) = 0 to 1.5 V, Vin (high) = 3 to 25 V |
| Digital Output | 3× optoisolated, 0 to 48 V DC, max. 350 mA (derated to 200 mA at 60°C). Solid-state opto relay, 1× dedicated as fault output (NC) |
| Power | |
| Power Consumption | 7.5 W at 24 V DC typical 7.8 W at 48 V DC typical 8.1 W at 48 V PoE typical |
| External Power Operation | 24/48 V DC 8 W max |
| External Voltage | Allowed range 18 V to 56 V DC |
