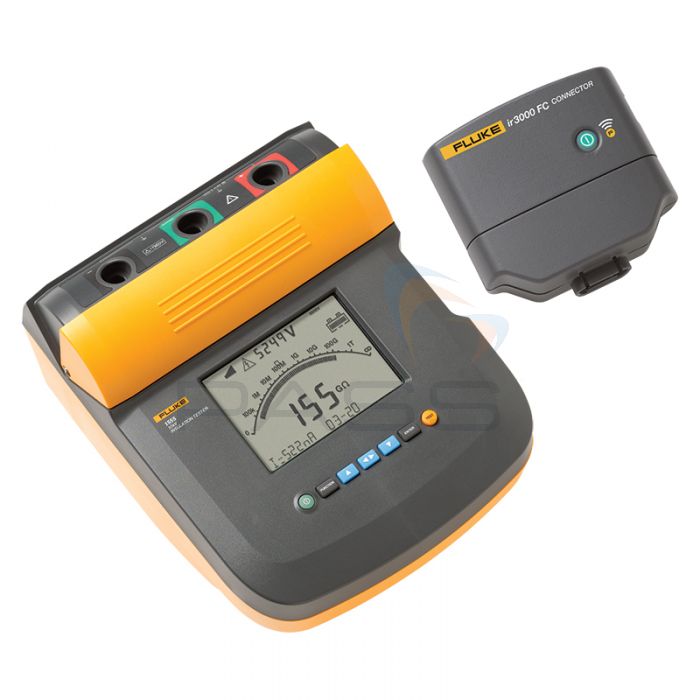

Fluke 1555 Insulation Resistance Tester & IR3000FC Connector Kit

SKU
1555KIT+IR3000FC
Rating:
0%
(0)
£4,098.00 £3,415.00
Due In: 1-6 Days Free UK Delivery* Delivery Options

UK - Zone 1 Orders

England, Wales & most of Scotland.

Free 3-5 Working Day1
Orders Over £99 & Selected Items

Economy 2-3 Working Day1
From £1.95

Tracked 2-3 Working Day
£4.95

Express Next Working Day
£7.95

Priority Next Working Day
£14.95 (Pre-Noon)
£19.95 (Pre-10:30am)

Saturday & Sunday
£14.95 (Pre-Noon)

UK - Zone 2 Orders

Highlands, Islands & Northern Ireland.

Free 3-5 Working Day1
Selected Items (Calculated at Checkout)

Economy 2-3 Working Day2
From £1.95

Tracked 2-3 Working Day
£9.95

International Orders

Delivery is calculated at checkout.


Note: Next day delivery is not guaranteed for orders placed after 3:00pm. Prices Ex VAT.

1, 2 See delivery page for more details.

Price Match Guarantee & Advice

The Fluke 1555 Insulation Resistance Tester & IR3000FC Connector combines the Fluke 1555 Insulation Resistance Tester with a Fluke IR3000FC Fluke Connect Connector allowing the user to wirelessly log, view and trend measurements. This is particularly useful when conducting insulation tests on high-voltage equipment, such as switchgear, motors, generators and cables, as the user can stand at a more remote and safe distance.

As mentioned above, the Fluke IR3000FC Fluke Connect Connector facilitates a connection between the Fluke 1555 Insulation Resistance Tester and the Fluke Connect App. It fits over the Fluke 1555 Insulation Resistance Tester’s IR port and can be upgraded via USB.

In addition to viewing real-time readings from a remote location, the Fluke Connect App can be used to start and stop tests, allowing the operator to remain in a safe area throughout the measuring period. Readings can be saved to a smartphone or tablet with the Fluke Connect App installed: the user can maintain an audible data trail without the paperwork.

Furthermore, the operator can use this app to analyse measurements, as well as send data to relevant persons from the field. The user is able to view Trendit™ graphs for timed PI: DAR ratio tests allowing him/her to identify moisture, and contaminated insulation problems faster. Moreover, this app’s temperature compensation feature allows the user to establish accurate baselines and relevant historical comparisons.

The Fluke Connect App is a simple-to-use and sophisticated wireless system designed for recording and trending real-time and historical data, allowing the user to identify degradation over time and affect the necessary changes in the field. It enables remote monitoring, paperless record management, and real-time and/or collaborative decisions, thereby improving work efficiency as well as user safety. It is ideal for troubleshooting, commissioning, and preventative or predictive maintenance applications.

The Fluke 1555 Insulation Resistance Tester can measure insulation resistance up to 2TΩ and features a maximum test voltage of 10kV. It supports all the test voltages specified in IEEE 43-2000. The Fluke 1555 Insulation Resistance Tester features selectable test voltages in increments of 50V between 250V and 1000V, and selectable test voltages in 100V increments above 1000V. To ensure accuracy when determining high-resistance measurements, the Fluke 1555 Insulation Resistance Tester features a Guard System which eliminates the effect of surface leakage current.

In addition to insulation resistance, the Fluke 1555 Insulation Resistance Tester is able to measure capacitance and leakage current and can perform automatic Dielectric Absorption (DAR) and Polarization Index (PI) calculations without additional setup. It also includes a Ramp function for breakdown testing, as well as timer settings (up to 99 minutes) for timed tests.

Readings are visible via the large digital/ analogue LCD display which indicates the measurement both numerically and on a graph. When the Warning function is triggered, the Fluke 1555 Insulation Resistance Tester will indicate the value of the line voltage that is present (up to 600V AC/DC). This Warning function works to improve user safety as he/she can ascertain whether a voltage is present prior to testing. The unit itself has a safety rating of CAT IV 600V.

Finally, the Fluke 1555 Insulation Resistance Tester is capable of performing up to 750 tests between battery charges. This long battery life, combined with its extensive testing capabilities, safety features and Fluke Connect compatibility, makes the Fluke 1555 Insulation Resistance Tester & IR3000FC Connector Kit ideal for troubleshooting applications, as well as preventive and predictive maintenance applications.

Fluke 1555 Insulation Resistance Tester & IR3000FC Connector Kit Key Features

  • Combines the Fluke 1555 with the Fluke IR3000FC to enable wireless logging, viewing and trending of measurements via the Fluke Connect App
  • Allows the user to stand at a more remote and safe distance when conducting insulation tests on HV equipment
  • Measure insulation resistance on switchgear, motors, generators and cables
  • The Fluke IR3000FC fits over the IR port of the Fluke 1555
  • The Fluke IR3000FC can be upgraded via USB
  • Start and stop tests remotely using the Fluke Connect App
  • Maintain a paperless, audible data trail using the Fluke Connect App
  • Analyse and trend real-time and historical measurements using the Fluke Connect App
  • Send data to relevant persons using the Fluke Connect App enabling real-time and collaborative decisions
  • View Trendit™ Graphs for timed PI: DAR ratio tests via the Fluke Connect App
  • The Fluke Connect App provides temperature compensation allowing the user to establish accurate baselines and relevant historical comparisons
  • The Fluke Connect App can be used to improve work efficiency as well as user safety
  • The Fluke Connect App is ideal for troubleshooting, commissioning, and preventative or predictive maintenance applications
  • Measure insulation resistance up to 2TΩ
  • Maximum test voltage: 10kV
  • Supports all the test voltages specified in IEEE 43-2000
  • Selectable test voltages in increments of 50V between 250V and 1000V
  • Selectable test voltages in increments of 100V above 1000V
  • Guard System eliminates the effect of surface leakage current on high-resistance measurements
  • Measure capacitance and leakage current
  • Automatic Dielectric Absorption (DAR) and Polarization Index (PI) calculations (no setup required)
  • Ramp function for breakdown testing
  • Timer settings (up to 99 minutes) for timed tests
  • Readings are visible via the large digital/ analogue LCD display
  • Indicates readings both graphically and numerically
  • Warning function: detects the presence of line voltage
  • The line voltage is indicated on the display (up to 600V AC/DC) when the Warning function is triggered
  • The Warning function improves user safety by detecting the presence of voltage prior to testing
  • Safety rating: CAT IV 600V
  • Long battery life: can perform up to 750 tests between battery charges
  • Ideal for troubleshooting applications
  • Ideal for preventative and predictive maintenance applications

What’s Included?

  • Fluke 1555 Insulation Resistance Tester
  • Fluke IR3000FC Fluke Connect Connector
  • Red, Black and Green Test Cables with Alligator Clips
  • Infrared Adapter with Interface Cable
  • AC Power Cord
  • Quick Reference Card
  • USB-IR Cable Installation Guide
  • IP67 Hard Case
  • Certificate of Calibration
  • Heavy Duty Alligator Clip Leads
Part Code

Fluke 1555 Insulation Resistance Technical Specifications

Insulation resistance measurement

Test voltage (dc)

Range (dc)

Accuracy (± reading)

250 V < 200 kΩ
200 kΩ to 5 GΩ
5 GΩ to 50 GΩ
> 50 GΩ
unspecified
5 %
20 %
unspecified
500 V   200 kΩ
200 kΩ to 10 GΩ
10 GΩ to 100 GΩ
> 100 GΩ
unspecified
5 %
20 %
unspecified
1000 V  < 200 kΩ
200 kΩ to 20 GΩ
20 GΩ to 200 GΩ
> 200 GΩ
unspecified
5 %
20 %
unspecified
2500 V  < 200 kΩ
200 kΩ to 50 GΩ
50 GΩ to 500 GΩ
> 500 GΩ
unspecified
5 %
20 %
unspecified
5000 V  < 200 kΩ
200 kΩ to 100 GΩ
100 GΩ to 1 TΩ
> 1 TΩ
unspecified
5 %
20 %
unspecified
10000 V
(1555 only)
 < 200 kΩ
200 kΩ to 200 GΩ
10 GΩ to 2 TΩ
> 2 TΩ
unspecified
5 %
20 %
unspecified
Bar graph range 0 to 1 TΩ
Insulation test voltage accuracy -0 %, +10 % at 1 mA load current
Induced ac mains current rejection 2 mA maximum

Charging rate for capacitive load

5 seconds per μF

Discharge rate for capacitive load

1.5 s/μF

Leakage current measurement

Range: 1 nA to 2 mA

Accuracy: ± (5 % + 2 nA)

Capacitance measurement

Range: 0.01 uF to 15.00 μF

Accuracy: ± (15 % rdg + 0.03 μF)

Timer

Range: 0 to 99 minutes

Resolution Accuracy:
Setting: 1 minute
Indication: 1 second

Live circuit warning

Warning Range:
30 V to 660 V ac/dc,
50/60 Hz

Voltage Accuracy:
± (15 % + 2 V)



General specifications

Display 75 mm x 105 mm
Power 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input (AC) Charger Input (AC) 85 V to 250 V ac 50/60 HZ 20 VA
This Class II (double insulated) instrument is supplied with a Class 1 (grounded) power cord. The protective earth terminal (ground pin) is not connected internally. The extra pin is for added plug retention only.
Dimensions 170 mm x 242 mm x 330 mm (6.7 in x 9.5 in x 13 in)
Weight 3.6 kg (7.94 lb)
Temperature (operating) -20 ºC to 50 ºC (-4 ºF to 122 ºF)
Temperature (storage) -20 ºC to 65 ºC (-4 ºF to 149 ºF)
Humidity 80 % to 31 ºC decreasing linearly to 50 % at 50 ºC
Altitude 2000 m
Enclosure sealing IP40
Input overload protection 1000 V ac
Electromagnetic compatibility EN 61326
Certifications
Safety compliance CAT III 1000 V, CAT IV 600 V
Pollution degree 2

Fluke IR3000FC Fluke Connect Connector Technical Specifications

Battery type Two AAA Alkaline batteries, ANSI-24A IEC-LR03
Battery life 6 hours of continuous transmission
RF communications 2.4 GHz ISM Band
Temperature operating -10°C to 50°C
Storage -20°C to 60°C
Certifications CSA, FCC, CE, IC
Warranty Three years from Fluke
Weight 80 g
Size (H x W x L) 3.2 x 7.6 x 6.4 cm (1.25 x 3.0 x 2.5 in)
