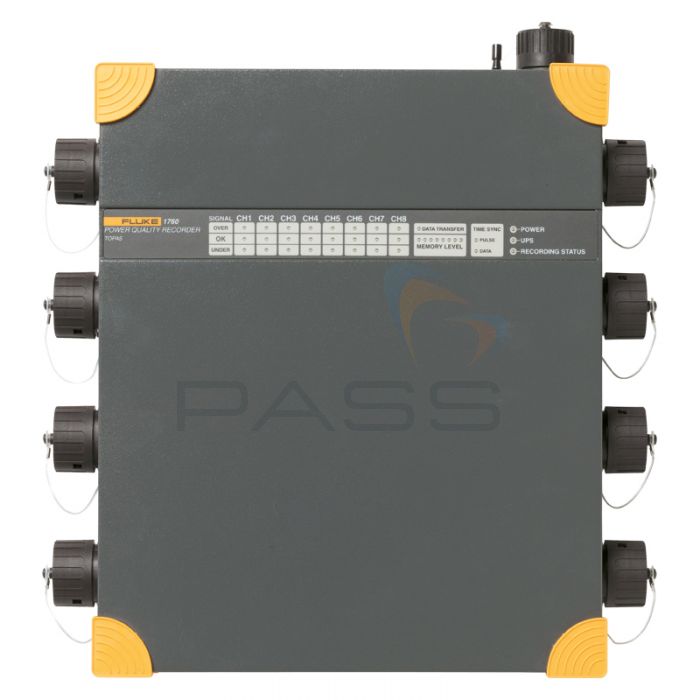

Fluke 1760TR Three-Phase Power Quality Recorder Topas
The Fluke 1760 series consists of four different variations of the same tester. This version, the standard kit TR model, comes with the ability to capture and analyse fast transients and ships with current/voltage probes (not included in the basic kit).
Designed for attachment to three-phase systems, the 1760 is an extremely versatile power quality instrument that constantly evaluates and logs power quality measurements over an extended period of time. The system is fully compliant with IEC 61000-4-30 Class-A standards and ensures that all measurements are carried out with high accuracy, giving the user the ability to diagnose a wide range of power quality problems and issues.
The recorder can be used to capture total harmonic distortion, voltage and current harmonics (including interharmonics), frequency, unbalance, flicker, kWh, power factor, power (P, Q and S), current and voltage with continuous readings. It also includes the ability to capture voltage events (dips, swells and interruptions and includes triggered recordings, online mode and can perform fast transient analysis up to 10MHz.
Up to 8 different inputs can be connected to the 1760 simultaneously (up to 8x voltage or 4x voltage and 4 x current) using the included probe sets. The internal memory of the tester constantly logs a significant amount of data directly from these inputs and this information can then be downloaded to PC afterwards to ensure that further analysis of the system under test can take place.
Key Features
Power quality evaluations in compliance with EN50160
Voltage event listing (dips, swills and interruptions)
Continuous recording of voltage, current, power, power factor, kWh, flicker, unbalance, frequency, harmonics and total harmonic distortion
Online mode (oscilloscope, transients and events
Fast transient analysis up to 10MHz
2GB of memory
Download to PC for further analysis
Plug and play - easily connect probes thanks to immediate recognition
Rugged design for use out in the field
Class A compliant
Flexible and fully configurable thresholds and scale factors
Full List of Products Included
Fluke 1760TR Three-Phase Power Quality Recorder
2Gb Internal Flash Memory
PQ Analyse Software on CD-ROM
Ethernet Cable for Network Connection
Crosslink Ethernet Cable for Direct PC Connection
Mains Cable
Operational Manuals
Carrying Bag
4 x Voltage Probes
4 x Current Probes
GPS Time Sync Receiver
£23,391.00
£28,069.20 inc vat
Free Delivery*
Important Notice This item is made-to-order exclusively for you once your order is placed. As a result, it is not eligible for cancellation or return under our standard policy. Your statutory rights remain unaffected.
Spend £150+ (Ex VAT) on any qualified Fluke or Beha-Amprobe product(s) and claim a free tool of your choice from the list at Fluke Promotion. Valid February 17 2025 - July 31 2025.
Claims are made direct to Fluke. Terms and conditions apply.
Technical Information
Specification
Fluke 1760 Technical Specifications
Overview of Measurement Functions
Statistical Evaluation
Power quality statistics according to EN50160 and DISDIP tables like ITIC, CEBEMA, ANSI
Event List
Dips, swells and interruptions are detected and stored in the event list. Also any trigger which fires generates an event added to this list.
The Event list shows the exact time when the event occurred as well as the duration and magnitude. Sorting by several attributes of these events is possible to select one for further root cause analysis.
RMS values, transients and fast transients can be stored if a trigger fires.
Continuous Recording
Fluke 1760 records rms values together with corresponding minimum and maximum values for:
• Voltage
• Current
• Power P, Q, S
• Power Factor
• kWh
• Flicker
• Unbalance
• Frequency
• Harmonics/Interharmonics
continuously with the following time aggregations:
Day
10 min
Free Interval, e.g.: 15 min, 2h
Triggered Recordings
rms:
Aggregation time is adjustable between 10 ms (1/2 cycle), 20ms (1 cycle), 200ms (10/12 cycles) or 3 sec (150/180 cycles).
Calculating rms values, Harmonics and Interharmonics is performed synchronous to the power frequency.
Basic aggregation for harmonics and interharmonics is 200ms
Oscilloscope:
Sample rate is 10.24 kHz for all 8 channels
Fast Transients:
Sample rate is selectable from 100 kHz to 10 MHz for channel 1-4 FFT of Fast Transients
Mains Signalling
Phases and N-conductor, Voltage and current
Online Mode
Variable refresh rate. This feature allows verification of instrument set up and delivers a quick overview of oscilloscope, transients and events.
General Data
Intrinsic uncertainty
refers to reference conditions and is guaranteed for two years
Quality system
developed, manufactured as per ISO 9001: 2000
Environment conditions
Operating temp. range:
0 °C to +50 °C; 32 °F to +122 °F
Working temp. range:
-20 °C to +50 °C; -4 °F to +122 °F
Storage temp. range:
20 °C to +60 °C; -4 °F to 140 °F
Reference temperature:
23 °C ± 2 K; 74 °F ± 2 K
Climatic class:
B2 (IEC 654-1), -20 °C to +50 °C; -4 °F to +122 °F
Max. operating altitude:
2000 m: max. 600 V CAT IV*, power supply: 300 V CAT III 5000 m: max 600 V CAT III*, power supply: 300 V CAT II * depending on sensor
Reference conditions
Environment temp.:
23 °C ± 2 K ; 74°F ± 2 K
Power supply:
230 V ± 10 %
Power frequency:
50 Hz / 60 Hz
Signal:
declared input voltage Udin
Averaging:
10 minute intervals
Housing
insulated, robust plastics housing
EMC
Emission:
Class-A as per IEC/EN 61326-1
Immunity:
IEC/EN 61326-1
Power supply
Range:
AC: 83 V to 264 V, 45 to 65 Hz
DC: 100 V to 375 V
Safety:
IEC/EN 61010-1 2nd edition
300 V CAT III
Power consumption:
max. 54VA
Battery pack:
NIMH, 7.2 V, 2.7 Ah
In case of a power supply failure an internal battery maintains the supply for up to 40 minutes. Afterwards, or in case of discharged accumulators the Fluke 1760 is turned off and continues the measurements with the latest settings as soon as the supply voltage returns. The battery can be replaced by the user.
Display
Fluke 1760 features LED indicators for the status of the 8 channels, phase sequence, power supply (mains or accumulator), memory usage, time synchronization, and data transfer.
Power LED:
• Permanent light: normal power supply from mains.
• OFF: supply via internal accumulator in case of a power failure.
Channel LEDs
3-color LEDs per channel for:
• overload condition
• under load condition
signal level in nominal range
Data memory
2 GB Flash memory depending on model
Memory model
Linear
Interfaces
Ethernet (100MB/s), compatible to Windows® 98/ME/NT/2000/XP RS 232, external modem via RS 232
Baud rate for RS 232
9600 Baud to 115 kBaud
Dimensions
325 mm x 300 m x 65 mm; 2.8 x 11.8 x 2.6 in. (H x W x D)
Weight
appr. 4.9 kg; 10.8 lbs. (without accessories)
Warranty
2 years
Calibration interval
1 year recommended for Class-A, otherwise 2 years
Signal Conditioning
Range for 50 Hz systems
50 Hz ± 15 % (42.5 Hz to 57.5 Hz)
Range for 60 Hz systems
60 Hz ± 15 % (51 Hz to 69 Hz)
Resolution
16 ppm
Sampling frequency for 50 Hz power frequency
10.24 kHz, The sampling rate is synchronized to mains frequency.
Uncertainty for frequency measurements
< 20 ppm
Uncertainty of internal clock
< 1s / day
Measurement intervals
Aggregation of the interval values as per IEC 61000-4-30 Class-A
Min-, Max-values:
Half cycle, e.g.: 10 ms rms values at 50Hz
Transients:
Sample rate 100 kHz to 10 MHz per channel
Harmonics
as per IEC 61000-4-7:2002: 200 ms
Flicker
as per EN 61000-4-15:2003: 10 min (Pst), 2 h (Plt)
Measurement Inputs
Number of inputs
8 galvanically isolated inputs for voltage and current measurements.
Sensor safety
up to 600 V CAT IV depending on sensor
Basic safety
300 V CAT III
Nominal voltage (rms)
100 mV
Range (peak value)
280 mV
Overload capacity (rms)
1000 V, continuously
Voltage rise rate
max. 15 kV / µs
Input resistance
1 MΩ
Input capacitance
5 pF
Input filter
Each channel is equipped with a passive low-pass filter, an anti-aliasing filter and a 16-bit A/D converter. All channels are sampled synchronously with a common quartz-controlled clock pulse.
The filters protect against voltage transients and limit the signal rise rate, reduce high frequency components and especially the noise voltage above half the sampling rate of the A/D converter by 80 dB, thus achieving very small measuring errors in an exceptionally large amplitude range. This is also valid under extreme operating conditions like transient voltages at the output of converters.
Uncertainties
Uncertainty at reference conditions
Uncertainty including the voltage sensors is in compliance with IEC 61000-4-30 Class-A. All voltage sensors are suitable for DC up to 5 kHz
With Sensor 1000 V
0,1% at Udin = 480 V and 600 V P-N
Sensor 600 V
0,1% at Udin = 230 V P-N
Intrinsic uncertainty for harmonics
Class I as per EN 61000-4-7:2002
Reference conditions
23 °C ± 2 K < 60 % rH; 74 °F ± 2 K < 60 % rH
Warmed up instrument > 3h
Power supply: 100 V to 250 V ac
Temperature drift
100 ppm / K
Aging
< 0.05 % / year
Common mode rejection
> 100 dB at 50 Hz
Temperature drift
Change of amplification through temperature: < 0.005 %/K
Aging
Change of amplification due to ageing: < 0.04 %/year
