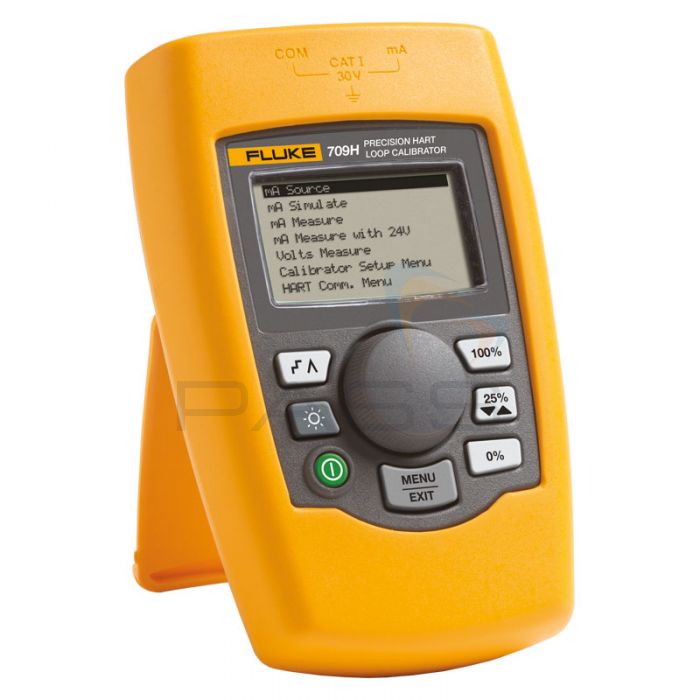

The Fluke 709 is a handheld, portable testing unit that can be used either as a loop calibration tool or as an effective HART communication device.
As a loop calibrator, the 709 is a high accuracy device (around 0.01% of reading) and it can carry out mA sourcing, mA simulation, mA reading, mA reading/loop power and volt reading functions. The device itself is simple to use, with large LCD screen, rotary knob and clearly labelled menu system. It's also made of rugged materials, making it suitable for use in industrial environments.
The HART functionality enabled the 709 to be used as an effective communication tool and carries out fast transfer of calibration data which can be portable into a software package. This functionality also enables data logging or recording of data on a particular transmitter, and is great for troubleshooting purposes. Capturing intervals can be set from every second to every 60 seconds and it has the ability to store up to 9800 records.
Fluke 709 Precision HART Loop Calibrator Key Features
- High accuracy of 0.01% of reading
- Operates on 6 AAA batteries
- Small and rugged design
- Built in selectable 250Ω resistor for HART communication
- 24V DC loop power with mA meaure mode
- Resolution of 1μA on mA and 1mV on voltage ranges
- Simple two wire measurement method
- Variable step and ramp time in seconds
- Adjustable span selection
- Valve test
- Fast transfer of calibration data
- Data logging capabilities
- HART functions - read message, read tag, descriptor, cal data, read sensor PV info, read PV output info, read long tag, write PV ranges (upper and lower), enter/exit fixed current mode, set zero offset, trim DAC zero and trim DAC gain
Full List of Products Included
- Fluke 709 Precision HART Loop Calibrator
- 754-8016 Alligator Clip Set
- 75X-8014 Stackable Lead Set
- TP220-4201 Test Probes
- AC280-5001 SureGrip Hook Clips
- Soft Case
- Six AAA Batteries (Installed)
- Product Manual CD-ROM
- Quick Reference Guide
- Safety Information
Fluke 709 Technical Specifications
Functions | mA source, mA simulate, mA read, mA read/loop power, volts read |
Ranges | mA (0 to 24mA) and Volts (0 to 30V DC) |
Resolution | 1μA on mA ranges and 1mV on voltage range |
Accuracy | 0.01% ± 2 counts, all ranges (@23° ± 5°C) |
Operating Temperature Range | -10 to 55°C (14 to 131°F) |
Humidity Range | 10 to 95% non-condensing |
Stability | 20ppm of F.S /°C from -10 to 18°C and 28 to 55°C |
Display | 128 x 64 pixels, LCD graphic w/backlight, .34 high digits |
Power | 6 AAA alkaline batteries |
Battery Life | 40 hours typical |
Loop Compliance Voltage | 24VDC @ 20mA |
Over-Voltage Protection | 240VAC |
Overload Current Protection | 28mA DC |
EMC | EN61326 Annex A (Portable Instruments) |
Dimensions (L x W x D) | 15cm x 9cm x 3cm (6 x 3.6 x 1.3in) |
Weight | 0.3kg (9.5 ounces) |
SKU | FLUKE709H |
---|---|
Manufacturer Part Code | 4234361 |
Country of Origin | China |
