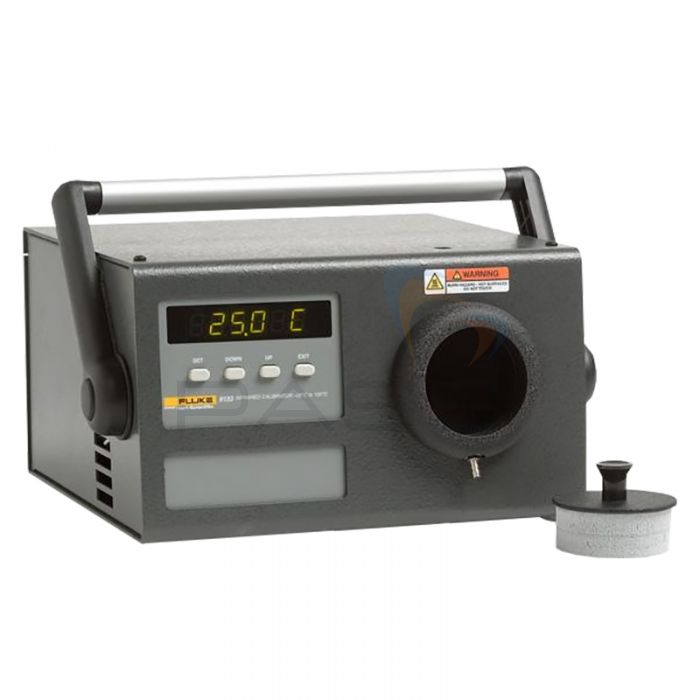

Fluke 9133-256 Portable IR Calibrator – Temperature Range:-30 to 150°C

Description

The Fluke 9133-256 Portable IR Calibrator can be used to calibrate a range of non-contact, handheld, infrared pyrometers, including IR thermometers, at cold temperatures.

The inclusion of solid-state cooling technology provides the Fluke 9133-256 Portable IR Calibrator with a temperature range of -30 to 150°C in ambient (23°C) conditions. In addition to this, the inclusion of a dry gas fitting on the front bezel prevents the build-up of ice on the blackbody target when the Fluke 9133-256 Portable IR Calibrator is used at low temperatures.

These features also provide the instrument with a stability of ±0.1°C across its temperature range. The Fluke 9133-256 Portable IR Calibrator is able to reach and stabilise at desired temperatures quickly:

Heating time: from 25°C to 150°C in fifteen minutes
Cooling time: from 25°C to -20°C in fifteen minutes

The user is able to adjust the temperature of the calibrator, or more specifically the blackbody target, in set-point increments of 0.1°C. The blackbody target included on this instrument has a diameter of 57mm ensuring that it is able to accommodate the field-of-view of most infrared thermometers, thereby increasing the instrument’s scope-for-use.

As well as improving the versatility of this instrument, the blackbody target also adds to the calibrator’s accuracy as it has an emissivity of 0.95 (±0.02%) and includes an RTD-reference well located behind the target ensuring that it can be reliably calibrated when needed. These features contribute to maintaining the Fluke 9133-256 Portable IR Calibrator’s accuracy of ±0.4°C across its full temperature range.

In addition to versatility and accuracy, the Fluke 9133-256 Portable IR Calibrator has been designed for ease of use. The user needs only perform the following steps:

1.) Use the front panel to set the required temperature

2.) Allow the Fluke 9133-256 Portable IR Calibrator to heat/cool to the specified temperature and stabilise

3.) Point the instrument-under-investigation at the blackbody target

4.) Compare the temperature reading taken by the instrument-under-investigation to the reading displayed on the Fluke 9133-256 Portable IR Calibrator

5.) Record differences between readings as necessary

The user is able to view temperatures in either °C or °F and can save information to the Fluke 9133-256 Portable IR Calibrator’s eight set-point memory. The inclusion of an RS-232 interface and Fluke’s Model 9930 Interface-It Software also adds to the adaptability of this instrument. These components can be used together to configure the Fluke 9133-256 Portable IR Calibrator via the operator’s PC.

Finally, the physical design of this instrument adds to both its versatility and practicality. It is compact, ergonomic and portable. It includes a hand strap allowing the instrument to be transported between worksites easily.

The Fluke 9133-256 Portable IR Calibrator is a versatile, practical and accurate temperature calibrator, ideal for use across a variety of environments.

Fluke 9133-256 Portable IR Calibrator Key Features

Can be used to calibrate non-contact, handheld infrared pyrometers at cold temperatures
Particularly well suited to calibrating IR thermometers
Includes solid-state cooling technology
Temperature range: -30 to 150°C in ambient (23°C) conditions
Dry gas fitting on the front bezel prevents the build-up of ice on the blackbody target
Stability: ±0.1°C
Heating time: from 25°C to 150°C in fifteen minutes
Cooling time: from 25°C to -20°C in fifteen minutes
Increase or decrease the temperature of the blackbody target in increments of 0.1°C
57mm- diameter blackbody target
Able to accommodate the FOVs of most infrared thermometers
Blackbody target has an emissivity of 0.95 (±0.02%)
Includes an RTD-reference well behind the target for calibration
Accuracy: ±0.4°C
Designed for ease-of-use
The front panel can be used to set the required temperature
Once the specified temperature has been reached and stabilised the user can point the instrument-under-investigation at the blackbody detector
Compare the temperature reading on the pyrometer with the reading on the calibrator
View measurements in either °C or °F
Eight set-point memory
RS-232 interface
Supplied with Fluke’s Interface-it Software
Software and interface can be used to configure the calibrator via the user’s PC
Compact, ergonomic and portable
Hand strap
Versatile, practical and accurate temperature calibrator

What’s Included?

Fluke 9132-256 Portable IR Calibrator – Temperature Range: 50 to 500°C
Fluke Interface-it Software

Tech Specs

Fluke 9133-256 Portable IR Calibrator Technical Specifications

The Fluke 9133-256 Portable IR Calibrator is part of Fluke's series of 913X Portable IR Calibrators; please find below the technical specifications for both the models included in this series.

Specifications	9133	9132
Temperature Range	–30 °C to 150 °C at 23 °C ambient (–22 °F to 302 °F at 73 °F ambient)	50 °C to 500 °C (122°F to 932°F)
Accuracy	± 0.4 °C (± 0.72 °F)	± 0.5 °C at 100 °C (± 0.9°F at 212°F)
Accuracy	± 0.4 °C (± 0.72 °F)	± 0.8 °C at 500 °C (± 1.4 °F at 932 °F)
Stability	± 0.1 °C (± 0.18 °F)	± 0.1°C at 100°C (± 0.18°F at 212°F)
Stability	± 0.1 °C (± 0.18 °F)	± 0.3°C at 500°C (± 0.54°F at 932°F)
Target Size	57 mm (2.25 in)
Target Emissivity	0.95 (± 0.02 from 8 to 14 µm)
Resolution	0.1 °
Heating Time	15 minutes (25 °C to 150 °C)	30 minutes (50 °C to 500 °C)
Cooling Time	15 minutes (25 °C to –20 °C)	30 minutes (500 °C to 100 °C)
Computer Interface	RS-232 interface
Power	115 V ac (± 10 %), 1.5 A, or 230 V ac (± 10 %), 1.0 A, switchable, 50/60 Hz, 200 W	115 V ac (± 10 %), 3 A or 230 V ac (± 10 %), 1.5 A, switchable, 50/60 Hz, 340 W
Size (HxWxD)	152 x 286 x 267 mm (6 x 11.25 x 10.5 in)	102 x 152 x 178 mm (4 x 6 x 7 in )
Weight	4.6 kg (10 lb)	1.8 kg (4 lb)
NIST-Traceable Contact Calibration	Data at –30°C, 0°C, 25°C, 75°C, 100°C, 125°C, and 150°C	Data at 50°C, 100°C, 200°C, 250°C, 300°C, 400°C, and 500°C
