All Fluke Products

Fluke Connect t3000 FC Wireless Temperature Kit

SKU
FLK-T3000 FC KIT
Rating:
0%
(0)
Reward Points
:
449
£538.80 £449.00
Free UK Delivery*
Advice & Support
Price Match Request
Fluke Connect t3000 FC Wireless Temperature Kit
Buy a Fluke Get a Free Fluke Logo

* Buy a Fluke (Worth £150+ Ex VAT) and Choose a Free Fluke!

Available until 31/08/24. For more details and to see your choice of free Fluke tool - View Offer

Only available from authorised Fluke distributors, such as PASS Ltd. Terms and conditions apply.

This comprehensive Fluke bundle package contains everything you'll need for measuring common electrical parameters and even includes the ability to measure temperature completely wirelessly using the supplied temperature module!

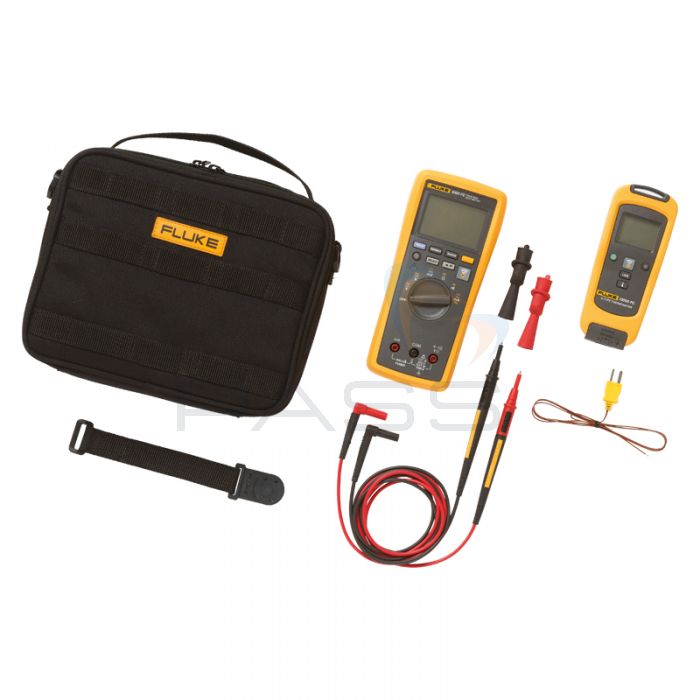

The kit comes with the following items:

  • Fluke 3000 FC Series Wireless Multimeter
  • Fluke t3000 K-Type Thermocouple Thermometer
  • TL175 Test Leads
  • AC175 Alligator Clips
  • 80PK-1 K-Type Bead Thermocouple
  • Magnetic Hanging Strap

The included thermometer is capable of being used by itself as a temperature measurement tool or can wirelessly transmit data to the included multimeter (and other compatible Fluke Connect tools).

Fluke Connect - Wirelessly Enhancing Testing

With this technology, many of Fluke's testers can now transmit data to each other! It also works with smartphones (using the Fluke Connect app) and can be used to transmit data wirelessly to PC (using optional PC adapter - sold separately).

The following video outlines how Fluke connect works:

With Fluke Connect, its possible to connect the included temperature module somewhere and view the results back up to 20m away on the included multimeter! Alternatively, why not connect up your smartphone for even more options such as video sharing or measurement saving?

Fluke 3000 FC Wireless Digital Multimeter

Ideal for measurements and general electrical troubleshooting, Fluke's 3000 is versatile, easy-to-use and extremely accurate thanks to true RMS technology.

  • AC/DC voltage measurements
  • AC/DC current measurements
  • Continuity, resistance, diode, capacitance and frequency testing
  • MIN/MAX recording
  • CAT III 1000V and CAT IV 600V
  • IP54 ingress protection

Fluke t3000 FC Wireless K-Type Temperature Module

Measure temperature with direct contact and transmit your findings wirelessly!

  • -200 to 1372°C measurement range
  • High accuracy
  • Stores up to 65000 measurements
  • Can be used by itself or can transmit data to other connected Fluke tools

Fluke 3000 FC Wireless Multimeter Specifications

For all specifications: accuracy is specified for one year after calibration, at operating temperatures of 18 to 28°C with relative humidity of 0 to 90%. Accuracy specifications take the form of ± [[ % of reading ] + [ Number of least significant digits ]].

AC Voltage
Range Resolution Accuracy
    45Hz to 500Hz 500Hz to 1KHz
600.0mV 0.1mV 1.0% + 3 2.0% + 3
6.000V 0.001V
60.00V 0.01V
600.0V 0.1V
1000V 1V
Note

All AC voltage ranges are specified from 1% of range to 100% of range.
Crest factor of ≤ 3 at full scale up to 500V, decreasing linearly to crest factor < 1.5 at 1000V
For non sinusoidal waveforms, add ± (2% of reading + 2% of full scale) typical, for crest factor up to 3.
Do not exceed 10V Hz

DC Voltage, Continuity, Resistance, Diode Test and Capacitance
Function Range Resolution Accuracy
mV 600.0mV 0.1mV 0.09% + 2
V 6.000V 0.001V 0.09% + 2
60.00V 0.01V
600.0V 0.1V
1000V 1V 0.15% + 2
Ω 600.0Ω 0.1Ω 0.5% + 1
6.000kΩ 0.001kΩ
60.00kΩ 0.01kΩ
60.00kΩ 0.1kΩ
600.0kΩ 0.001MΩ
50.00MΩ 0.01MΩ 1.5% + 3
Diode Test 2.000V 0.001V 1% + 2
μF 1000nF 1nF 10% typical
10.00μF 0.01μF
100.0μF 0.1μF
9999μF 1μF
Note In the 9999μF range for measurements to 1000μF, the measurement accuracy is 1.2% + 2
AC and DC Current
Function Range Resolution Accuracy
mA AC (45Hz to 1KHz) 60.00mA 0.01mA 1.5% + 3
400.0mA
mA DC 60.00mA 0.01mA 0.5% + 3
  400.0mA 0.1mA
Note All AC current ranges are specified from 5% of range to 100% of range
Input burden voltage (typical): 400mA input 2mV/mA
400.0mA accuracy specified up to 600mA overload
Frequency
Range Resolution Accuracy
99.99Hz 0.01Hz 0.1% + 1
999.9Hz 0.1Hz
9.999kHz 0.001Hz
99.99kHz 0.01kHz
Input Characteristics
Function Overload Protection Input Impedance (Nominal) Common Mode Rejection Ratio (1kΩ Unbalance) Normal Mode Rejection
1100V rms >10MΩ < 100pF > 120 dB at dc, 50 Hz or 60 Hz > 60 dB at 50 Hz or 60 Hz
1100V rms >10MΩ < 100pF > 60 dB, dc to 60 Hz
1100V rms >10MΩ < 100pF > 120 dB at dc, 50 Hz or 60 Hz > 60 dB at 50 Hz or 60 Hz
Open Circuit Test Voltage Full Scale Voltage Typical Short Circuit Current
1100V rms <2.7V DC To 6MΩ: <0.7VDC
50MΩ: <0.9V DC
<350mA
1100V rms <2.7V DC 2.000V DC <1.1mA
Function Overload Protection
Overload
mA Fused, 44/100A, 1000V FAST Fuse
 600mA overload for 2 minutes maximum, 10 minutes rest minimum
MIN/MAX Recording
Function Accuracy
DC Functions The specified accuracy of the measurement function ± 12 counts for changes > 350 ms in duration.
AC Functions The specified accuracy of the measurement function ± 40 counts for changes > 900 ms in duration.
General Specifications
Maximum Voltage Between Any Terminal and Earth Ground 1000V DC or AC RMS
Ω Fuse Protection From A Inputs 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
Display (LCD) Update rate: 4/sec
Votls, amps, ohms: 6000 counts
Frequency: 10,000 counts
Capacitance: 1,000 counts
Battery Type 3 x AA alkaline batteries, NEDA 15A IEC LR6
Battery Life 250 hours maximum
RF Communications 2.4GHZ ISM Band
RF Communication Range Open air, unobstructed: Up to 20m
Obstructed, sheetrock wall: Up to 6.5m
Obstructed, concrete wall, or steel electrical enclosure: Up to 3.5m
Temperature Operating: -10 °C to 50 °C
Storage: -40 °C to 60 °C
Temperature Coefficient 0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
Relative Humidity 0 % to 90 % (0 °C to 35 °C), 0 % to 75 % (35 °C to 40 °C), 0 % to 45 % (40 °C to 50 °C)
Altitude Operating: 2,000 m
Storage: 12,000 m
Electromagnetic Compatability EMI, RFI, EMC, RF EN 61326-1:2006, EN 61326-2-2:2006. ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489
V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249,
FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE
Safety Compliance ANSI/ISA 61010-1 / (82.02.01): 3rd edition
CAN/CSA-C22.2 No 61010-1-12: 3rd edition
UL 61010-1: 3rd edition
IEC/EN 61010-1:2010
Certifications CSA, FCC, CE
Ingress Protection (IP) Rating IP54
Pollution Degree 2
Size (H x W x L) 4.75 cm x 9.3 cm x 20.7 cm (1.87 in x 3.68 in x 8.14 in)
Weight 340g (12oz)

Fluke t3000 Technical Specifications

Range (K-Type) -200 °C to 1372 °C
Resolution 0.1 °C
Accuracy ± [0.5% + 0.5°C] counts
Input Terminals K-Type Mini
LCD w/ Backlight 3 1/2 digits
Log Rate/Interval 1 sec minimum/adjustable by PC
Battery Type 2 AA, NEDA 15A, IEC LR6
Battery Life 400 hours
Memory Record up to 65000 readings
RF Communications 2.4GHZ ISM band
RF Communication Range Open Air, Ubobstructed: Up to 20m
Obstructed, Sheetrock Wall: Up to 6.5m
Obstructed, Concrete Wall or Steel Electrical Enclosure: Up to 3.5m
Operating Temperature -10 °C to +50 °C
Storage Temperature -40 °C to +60 °C
Temperature Coefficient 0.01 % of reading +0.03 °C per °C
Temperature Scale ITS-90
Operating Humidity 90 % at 35 °C, 75 % at 40 °C, 45 % at 50 °C
Altitude Operating: 2000m
Storage: 12000m
EMC EN 61326-1: 2006
Safety Compliance IEC 61010-1, CAT I, 3rd edition, Pollution degree 2
Certifications CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) Rating IP42
Pollution Degree 2
Size (H x W x D) 16.5 cm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in)
Weight .22kg (8oz)
