Fluke EI-162BN 320 mm Split Core Transformer

Fluke's EI-162BN 320 mm Split Core Transformer is used as a selective clamp for ground loop resistance measurement around or adjacent to power pylons.  This clamp has an inner diameter of 12.6 inches (320 MM) and it includes a split-core transformer which can be used with the Fluke 1625 kit or the Fluke 1623 kit.  If you do not have the full kit version, a GEOX Probe cable may be purchased separately.

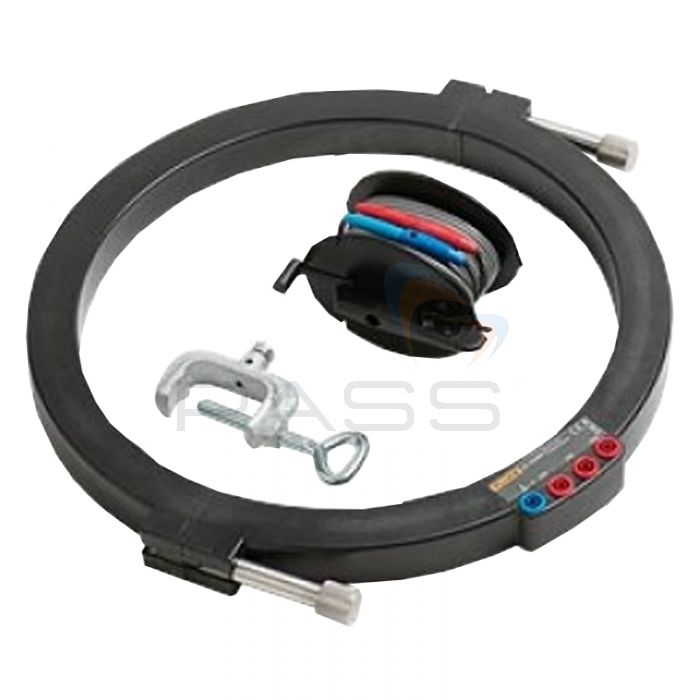

 The Fluke EI-162BN 320 mm Split Core Transformer includes the following:

• User's manual
• One carrying case
• Current transformer
• Two fasteners used for holding transformer halves together
• One cable bobbin with two 40-foot (12 meter) test leads for connecting the transformer to a tester's jack
• One contact clamp for establishing Earth ground electrode connection point on a transmission line pylon

The cable bobbin has both female red and blue leads that plug into the male red and blue banana plugs on a sensing cable adapter that is used with both the Fluke 1623 and Fluke 1625 for selective resistance measurements.  The contact clamp has a 4 millimeter bore that is made to fit a standard banana plug,  and the clamp also has a tightening screw for a secure fit.  This product weighs in at 17.6 pounds (8 kilograms).
