Fluke i1010 Kit AC/DC Current Clamp (1000 A) with Soft Case
* Buy a Fluke (Worth £150+ Ex VAT) and Choose a Free Fluke!
Available until 31/08/24. For more details and to see your choice of free Fluke tool - View Offer
Only available from authorised Fluke distributors, such as PASS Ltd. Terms and conditions apply.
The Fluke i1010 has a current range of 1A to 600A of AC voltage and 1A to 1000A of DC voltage. Its basic accuracy is perfect if you want the best results at all times, for DC voltage it is 45Hz to 400Hz ± (2% of reading +0.5A). Its output signal is 1m V/A for AC/DC voltage and it also has a frequency range of 45Hz to 2kHz and a bandwidth of 10kHZ.
The best working voltage for this testing equipment is 600V AC RMS and the maximum conductor size that it can use is either one conductor measuring 30 centimetres or another that measures 25 millimetres in diameter.

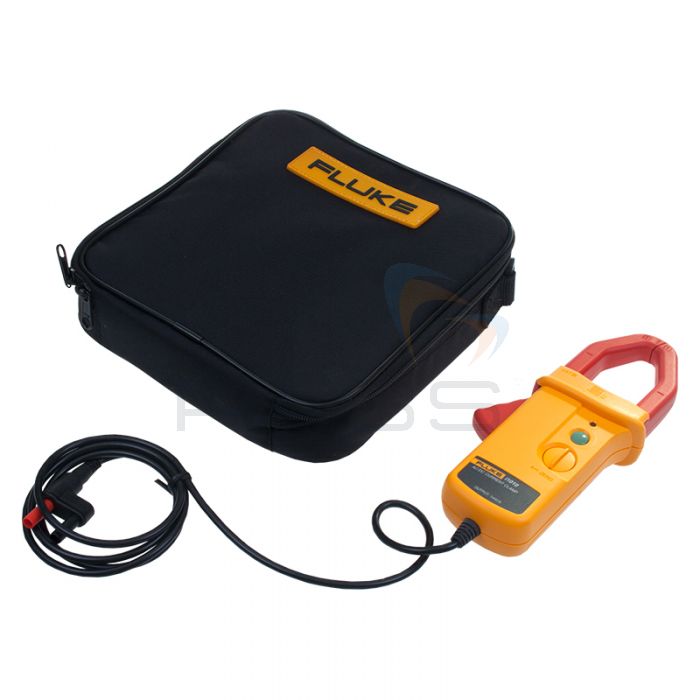

Contained in this current clamp meter kit is a 1-1000A DC Current Clamp, a Probe powered by a battery with Hall Effect technology, and a 1m V/Amp output that guarantees that you can take easy readings on your meter.
Also included with this testing equipment is a roomy carrying case that can hold each piece of equipment that is part of this kit and protects your current clamp meter. There is also extra storage included for the test leads, probes and manuals that are included.
The Fluke i1010 Kit AC/DC Current Clamp (1000 A) with Soft Case has a safety rating of EN61010 and CAT III 600V. It is safe and easy to use, meaning peace of mind and less work for you.
Specifications
- Measurement type Hall sensor
- Nominal current range 600 A, AC, 1000 A, DC
- Continuous current range 1 A - 600 A, AC, 1 A - 1000 A, DC
- Maximum Non-Destructive Current 1000 A
- Lowest measurable current 0.5 A
- Basic Accuracy 2% + 0.5 A, (% reading + floorspec)
- Useable frequency DC - 10 kHz
- Output level(s) 1 mV/A
- Zero error adjustment Yes
- Safety CAT III, 600 V
- Maximum voltage 600 V
- Battery Life 9 V, 60 h
- Maximum conductor diameter 30 mm 2 x 25 mm
- Output cable length 1.6 m
- Shrouded banana plugs Yes
| SKU | FLUCMA10 |
|---|---|
| Manufacturer Part Code | 2096998 |
| Model Ref | i1010 Kit |
| Country of Origin | Thailand |
