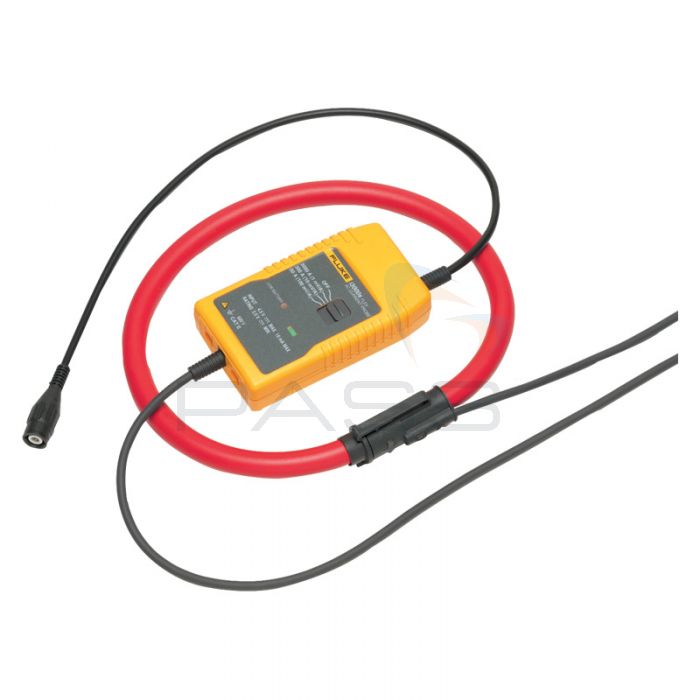

This pack includes four i3000 iFlex current probes which are designed for use with Fluke multimeters, oscilloscopes and other similar devices.
Once they are equipped to a meter these probes allow measurements of current up to 3000A. They are flexible and made to bend around conductors, making them essential for use in applications where it may be difficult to attach a conventional clamp meter.
Fluke i3000 Technical Specifications
- Current ranges 30 A, 300 A, 3000 A, AC rms
- Output sensitivity (AC-coupled) 100 mV, 10 mV, 1 mV per A
- Load impedance 100 kΩ minimum
- Accuracy at +25 °C ± 1 % of range (45 Hz to 65 Hz)
- Linearity 10 % to 100 % of range ± 0.2 % of reading
- Noise 8 mV ac rms (30 A), 2 mV ac rms (300 A, 3000 A)
- Frequency range 10 Hz to 50 kHz (-3 dB)
- Phase error < ± 1 º (45 Hz to 65 Hz), ± 10 º (at 20 kHz)
- Position sensitivity with cable > 25 mm from the coupling ± 2 % of range
- External field with cable > 200 mm from the head ± 1 % of range
- Power supply 2 x AA/MN 1500/LR6 Alkaline, , 400 hours, low battery indicator or dedicated external power supply
- Temperature Coefficient ± 0.08% of reading per °C
- Working voltage see Safety standards section 600 V AC rms or DC
- Head Circumference 610 mm (24 in)
- Head cable diameter 14.3 mm (0.56 in)
- Head bend radius 38.1 mm (1.5 in)
- Cable length (head to electronics) 2 m (6.56 ft)
- Output connection 0.5 m cable terminated with safety BNC connector. Supplied with 4mm safety plug adapter
- Operating temperature range -20 °C to +90 °C (-4 °F to 190 °F) (head) -20 °C to +85 °C (-4 °F to 185 °F) (electronics)
- Storage temperature range -40 °C to +105 °C (-40 °F to 221 °F) (head) -20 °C to +85 °C (-4 °F to 185 °F) (electronics)
- Operating humidity 15 % to 85 % (non-condensing)
- Weight 180 g (0.396 lb) (head) 190 g (0.419 lb) (electronics)
- Safety standards BS EN 61010-1: 2001 BS EN 61010-2-032: 2002 BS EN 61010-031: 2002 600 Vrms, Category III, Pollution Degree 2 Use of the probe on uninsulated conductors is limited to 600 V AC rms or dc and frequencies below 1 kHz.
- EMC standards EN 61326: 1998 +A1, A2, & A3
- Maximum conductor size 610 mm or 914 mm, depending on model
0 Reviews
Overall Rating
Additional Information
SKU | i3000 flex-4PK |
---|---|
Manufacturer Part Code | 2696367 |
Model Ref | i3000 flex-4PK |
Country of Origin | China |
