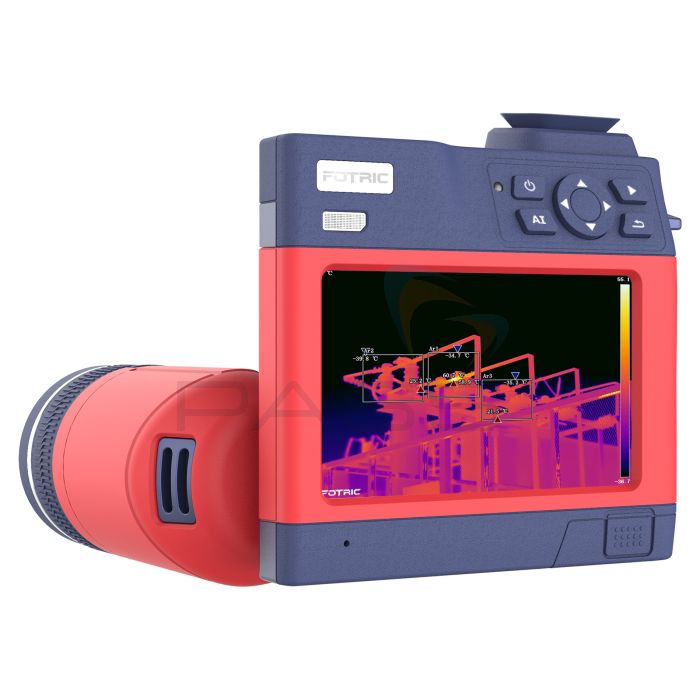

FOTRIC P5 Series Handheld Thermal Camera (30Hz), 384 x 288px
- 384 x 288px resolution
- Optional dual lens
- Four models available
SKU
FOTRIC-P5
The FOTRIC P5 Thermal Cameras have an IR resolution of up to 384 x 288 pixels, delivering exceptional image quality. A distinguishing characteristic of the P-series is the optional Dual-view Lens, which negates the necessity of carrying or replacing additional lenses. The cameras also boast a thermal sensitivity of less than 30mK and have AI-powered automation with an AI assistant at your hand.
The laser area measurement function and integrated capabilities provide the path for thorough evaluations without requiring external tools. The cameras are compatible with advanced software such as NaviTiR and IRexplorer, which provide comprehensive data analysis and reporting features.
The LCD accurately reproduces the entire sRGB colour gamut, and the Thermal White Balance (TWB) feature enhances the clarity of temperature distributions in images. Easily differentiate between elements in the background with the IRedge Imaging Algorithm amplifying the visual impact of object contours and edges.
The P-Series has even more powerful tools at your disposal. The NaviTiR System is an AI-infused digital upgrade from traditional thermal cameras, while the AnalyzIR optimises thermal analysis and reporting processes. Finally, the IRExplorer provides remote access and control of the thermal cameras through WiFi. Four models are available to choose from.
Key Features
- Covers 100% sRGB colour gamut
- TWB (thermal white balance) Feature
- IREdge Imaging Algorithm
- ±1 % accuracy
- up to 1550℃ temperature range
- 30mk thermal sensitivity
- <1℃ image uniformity
- Interchangeable lens on a 40-level rotary axis provides the finest flexibility as well as stability
- 5” HD LCD screen
- Built-in speaker for temperature alarm
- AI programmable
- TurboFocus
- Bright LED lamps to illuminate the dark
- Built-in 5 MP lens-side digital camera
- Laser ranger for accurate distance and area measurement
- 0.5-inch OLED viewfinder
- Built-in 13 MP digital camera for dynamic image quality
- One lens to see it all
- Android platform
- One-click favourite
- Laser-assisted area measurement
- AI assistant at your hand
- Remote control via WiFi or Self-equipped Hotspot
- No need for installation
- Across any platform
- Access and edit thermal files
What's Included?
- Thermal imaging camera
- Lens
- Lens cap
- 3 rechargeable lithium batteries
- Battery charger
- Power adapter
- USB Type-C to USB interface cable
- Micro HDMI interface to HDMI
- SD card
- SD card reader
- Accessory bag (wrist strap)
- Information bag (packing list, calibration certificate, user manual)
- Portable soft bag
- Hard case
Product Range
- FOTRIC P5-L12 Handheld Thermal Camera (30Hz) 12° Lens
- FOTRIC P5-L25/L12 Handheld Thermal Camera (30Hz) 25° & 12° Lens
- FOTRIC P5-L25 Handheld Thermal Camera (30Hz) 25° Lens
- FOTRIC P5-L46 Handheld Thermal Camera (30Hz) 46° Lens
Videos
Unboxing Video of FOTRIC P-series Thermal Camera
Unboxing Video of FOTRIC P-series Thermal Camera
Elevate Your Inspections with a Dual-view Lens!
Elevate Your Inspections with FOTRIC P-series' Dual-view Lens!
Call for Pricing
Call 01642 931 329 or complete the form:
Technical Information
Specification
| P5 | P7 | P9 | |
|---|---|---|---|
| Thermal Imaging Parameters | |||
| Infrared Resolution | 384*288 | 640*480 | 1280*1024 |
| Super Resolution (SR) | 768*576 | 1280*960 | 2560*2048 |
| Detector Type | Uncooled infrared focal plane detector | ||
| Detector Pitch | 17µm | 12µm | |
| Thermal Sensitivity (NETD) | 40mk (0.04° C) | 30mk (0.03° C) | |
| Spectral Range | 7 ~ 14µm | ||
| Image Frame Rate | 30Hz | ||
| Field of View (FOV) | 25° x 19° | 25° x 20° | |
| Spatial Resolution (IFOV) | 1.14 mrad | 0.68 mrad | 0.34 mrad |
| Minimum Imaging Distance | 0.1 m | 0.25 m | 0.4m |
| Focal Lengths | f15 | f24.8 | f35 |
| Focus Mode | TurboFocus® system (thermal contrast AF, laser-assisted AF, continuous AF); Touch AF; Manual | ||
| Lens Recognition | Auto | ||
| Optional Lens | Refer to the "Lens" section in the Datasheet | ||
| Digital Zoom | 1-12x | 1-16x | 1-32x |
| Unique Features | |||
| NaviPdM® | Support, AI inspection assistant | ||
| T-DEF® | Support, thermal and visible light image blend, transparency 0% ~100% | ||
| IREdge | Support, contour detail enhancement | ||
| T-TWB® | Support, temperature visual representation normalization | ||
| Temp Analysis | |||
| Complete Temperature Range | -20 ° C ~ 1550 ° C | -20 ° C ~ 2000 ° C | |
| Temperature Range | -20 ° C ~ 120° C 0 ° C ~ 700° C, 300 ° C ~ 1550° C (Not applicable to dual-view or macro lenses) |
-20 ° C ~ 120° C 0 ° C ~ 700° C, 300 ° C ~ 2000° C (Not applicable to dual-view or macro lenses) |
|
| Temperature Range Extension | support extension: lowest to -40℃ (Not applicable to dual-view or macro lenses) |
||
| Intelligent Range | Support | ||
| Accuracy | ± 2℃ or ± 2 %, whichever is greater (ambient temp at 25℃ ) |
± 1℃ or ± 1 %, whichever is greater (ambient temp at 25℃ temperature range 0° C-100° C), ± 2℃ or ± 2 % for other temperature range |
|
| Uniformity | ±2 ° C or 2% | ||
| ROI Spot | 20 spot markers | 25 spot markers | 30 spot markers |
| ROI Area | 20 (rectangle or circle) | 25 (rectangle or circle) | 30 (rectangle or circle) |
| ROI Line | 20 measurement lines | 25 measurement lines | 30 measurement lines |
| User-definable ROI on PC Software | Unlimited | ||
| Measurement Parameters | Emissivity, Partially emissivity, Reflected temperature, Ambient temperature, Humidity, Distance and IR window compensation. | ||
| Temperature Rise Feature | Support | ||
| Area Alarms | Area alarm; High temperature alarm and low temperature alarm | ||
| Colour Alarm | High temperature, low temperature, and interval isotherms | ||
| PC Software | AnalyzIR®,NaviPdM® | ||
| Image Display | |||
| Display | 5inch (landscape) 1280*720 | ||
| View-Finder (Optional) | 0.5 inch OLED, 800*600 | ||
| Image Mode | Thermal\Digital\Picture-in-Picture\T-DEF® Blend | ||
| Palettes | 16 standard palettes: Grey, Iron10, Iron, Rainbow, Grey10, GreyRed, MidGrey, Yellow, Rain, Rain10, Blue, GlowBow, Medical, Medical10, MidGreen, Prism. 16 inverted palettes |
||
| Temp Span Mode | Auto (Minimum Temp Span 3℃ ), Manual (Minimum Temp Span 2℃ ), Touch-screen(Minimum Temp Span 2℃ ) | ||
| High/Low Temperature Tracking | Yes, full-screen and measurement boxes both with highest/lowest temp spot marker | ||
| Capture Features | |||
| Digital Camera | 5-mega pixel and 13-mega pixel | ||
| Storage | SD card of 64GB memory, support expansion to 2TB | SD card of 128GB memory, support expansion to 2TB | SD card of 256GB memory, support expansion to 2TB |
| Capture Mode | Support on a single frame, video and Time-lapse Capture | ||
| Image/video File Formats | Standard JPEG full radiometric thermal images, digital images, IRS full radiometric thermal videos, MP4 non-radiometric videos | ||
| Freeze Interface | Support single frame thermal image and radiometric video edition | ||
| QR Code Functionality | Support QR code and Barcode scanning | ||
| Annotation | Support Voice\Text\Bookmark\Favorate | ||
| Voice Annotation Length | 200 s | ||
| Thermal Image On-device Analysis | Support | ||
| Radiometric Video On-device Analysis | Support | ||
| MP4 Video Recording | Support | ||
| Gallery | Image preview and analysis, video preview and analysis | ||
| Data Connection | |||
| WiFi Connection | Support 2.4GHz and 5 GHz frequency, support 802.11a/b/g/n/ac | ||
| Bluetooth Connection | BT4.2 LE, connectable to Bluetooth headphone | ||
| USB Interface | USB type-C type; conforms to USB 3.0 / 2.0 specification, supports USB OTG; USB 3.0 has a maximum speed of 5Gbps; USB 2.0 supports a maximum speed of 480Mbps, and is downward compatible with full speed (12Mbps) mode | ||
| HDMI Interface | Micro HDMI type, Comply with HDMI 1.4 specification, supports 1080p image video transmission at 60Hz frame rate. | ||
| FTP Data Transfer | Accessible through WiFi or Hotspot, rapid data transfer | ||
| Remote Control | Support from PC Software, IRExplorer | ||
| IRExplorer ™ | Support | ||
| Auxiliary Features | |||
| Software Upgrade | Support on OTA upgrade and local upgrade through USB | ||
| Laser | Independent key activation Laser level: 2; Wavelength: 635nm; Power: <1mW; Laser distance: 0.1~50m, Accuracy: d*0.01%±2mm |
||
| Laser Measurement | Distance, Length, and Area | ||
| Compass | Yes | ||
| LED | Support | ||
| Battery | |||
| Battery Type | 3.6V, 10000mAh lithium | ||
| Battery Life | Over 4 hours per battery | Over 2.5 hours per battery | |
| Battery Charging System | Battery charger, DC 13V charging, USB charging | ||
| Battery Charging Time | 2.5 hours to 90% full charge | ||
| Energy Management | User-selectable screen-off modes | ||
| AC Operation, Adaptor | AC operation with included power supply (adaptor, input: 100V ac -240V ac, 50/60Hz, output 12v, 3A, 24w) | ||
| Reliability and Certification | |||
| Safety | EN 62368-1:2014+A11:2017 (Power Supply) | ||
| Electromagnetic Compatibility | EN 61326-1:2013 (immunity) EN 61326-1:2013 Class A (emission) FCC 47 CFR Part15 Class A (emission) |
||
| Shock | 25g(IEC60068-2-27:2008) | ||
| Vibration | 2g (IEC 60068-2-6:1995) | ||
| Enclosure Rating | IP54 | ||
| RoHS | Yes | ||
| Physical Parameters | |||
| Operating Temperature | -20℃ to +50℃ (-4 ℉ to 122 ℉ ) | ||
| Storage Temperature | -40℃ to +70℃ (-40 ℉ ~158 ℉ ) without battery | ||
| Relative Humidity | <95%RH | ||
| Size (H x W x L) | 175 x 151 x 95mm | ||
| Weight (without lens) | 1.3kg | ||
| Hard Case | Hard rubber: PC + ABS, Soft rubber: TPE, Magnesium alloy, Flame retardant grade: UL94 HB | ||
| Tripod | UNC ¼"-20 interface | ||
| Fotric Warranty | 2 years (standard), extended warranties are available,10 years for core detector | ||
| Recommended Calibration Cycle | 2 years (assumes normal operation and normal ageing) | ||
| Languages | English, Spanish, German, Italian, Korean, Portuguese, Chinese Traditional | ||
