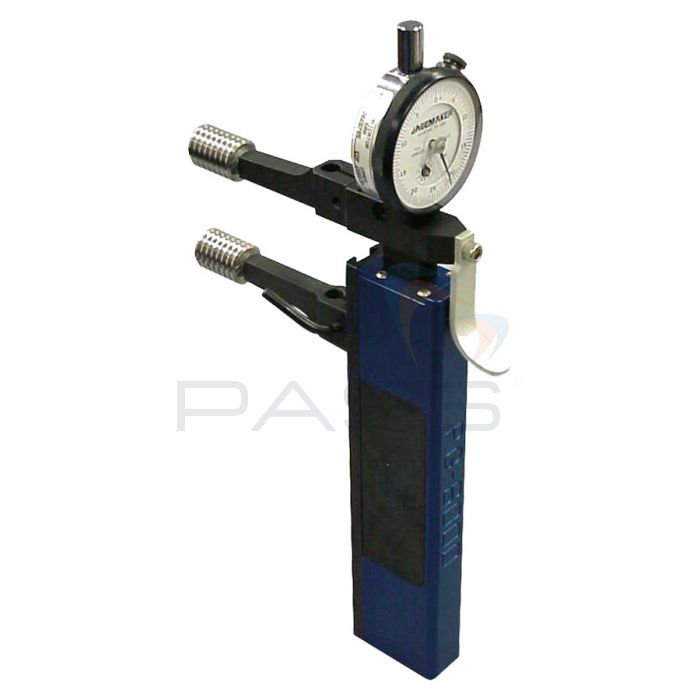

Gagemaker Functional Diameter Thread Roll Gauge
- 1½"-9", 9"-16" & 5/8"-1½" ranges
- 2½" or 1" reach
SKU
GM-90-PG600-X
The Gagemaker PG-6000 Series gauges measure functional (effective) diameter by accounting for the combined effects of pitch, flank angle, and lead errors. These gauges utilise rolling contact elements that seat into the thread, simulating the functional engagement of mating parts. All gauges in the PG-6000 series must be preset to a nominal value using gauge blocks, micrometers, or the Gagemaker MIC TRAC system.
Product Range
- Gagemaker 90-PG6000 Functional Diameter Internal Thread Roll Gauge, 1½"-9"
- Gagemaker 90-PG6001 Functional Diameter Internal Thread Roll Gauge, 9"-16"
- Gagemaker 90-SPG6000 Functional Diameter Internal Thread Roll Gauge, 5/8"-1½"
Technical Information
Additional Information
SKU
GM-90-PG600-X
Gagemaker Functional Diameter Thread Roll Gauge
£1,164.00
£1,396.80 inc vat
£1,164.00
£1,396.80 inc vat
