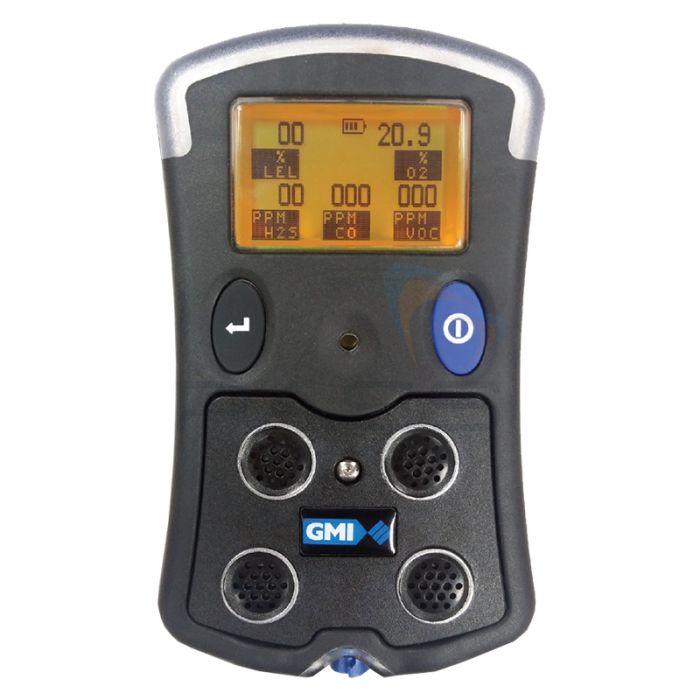

GMI PS500 Series MultiGas Monitors, Datalogging, Optional Pump - Drycell, Long duration NiMH, or Fast Charge
Description
The GMI PS500 Series is a portable gas detector that can measure up to five gases simultaneously, using electrochemical, catalytic, PID, and infrared sensors. Choice of 20 plug-and-play sensors that can be swapped, providing maximum versatility.
Large display, a triple alarm system, datalogging capabilities, and an optional internal pump. It is certified to multiple international and regional standards, such as ATEX, CSA, CE, IECEx, and INMETRO.
The PS500 is particularly useful in noisy environments, featuring a very loud (95dBA) penetrating and distinctive audible alarm together with a high visibility large area visual alarm. Pump, diffusion, or both together, allowing pumped sample for pre-entry checking and diffusion in confined space working, thus maximising battery life.
Robust, moulded, rubberised casing guaranteeing Hi-Impact resistance, the PS500 can be used in the most demanding environments.
Drycell, Long duration NiMH, and Fast Charge models are available with or without a pump and a variety of sensors to choose from. Please get in touch to customise your PS500.
Note: LEL sensors shall not be combined.
Key Features
- Over 15 plug-and-play smart sensors to choose from
- Wide range of VOCs with 2 different PID sensors
- Flexible configuration to suit your specification
- Piercing 95 dB audible plus 360-degree high visibility light bar
- On-board datalogging for calibration certificates, data management, and event logging
- High-impact rubberised case
- IP65
- Low cost of ownership
Applications
- Personal safety in confined space - H2S/O2/CO hazards
- General safety in confined space
- Shipping - general
- Shipping - fumigant
- Breweries - CO2 hazard
- Plant shutdown
- Permit to work systems
- Pressurised tunnelling
- Fleet auxiliary
What's Included?
- User CD
- Quick op guide
- Universal PSU
- Belt clip
- Calibration certificate
- 3m tubing (pumped only)
- Charger (Long Duration and Fast Charge only)
Downloads
Manuals & Guides
Brochures & Catalogues
Tech Specs
| Sensors | |
|---|---|
| 66825 | A - LEL enhanced filter * |
| 66725 | A1 - LEL filtered |
| 66625 | A2 - LEL Carbon Cloth ** |
| 66066 | B - O2 |
| 65128 | C - H2S |
| 66285 | C1 - H2S (use if LEL calibration is Ethanol / Methanol) |
| 65127 | D - CO |
| 66067 | E - H2S / CO (5 gas instrument only with this dual sensor fitted) |
| 65377 | F - SO2 (0-30ppm) |
| 65371 | G - CL2 *** |
| 65378 | H - NO2 |
| 65388 | J - NH3 *** |
| 65385 | N - NO |
| 66319 | P - CO2 + (Not UL approved) |
| 66343 | T - HCN *** |
| 66559 | U - PH3 *** |
| 66559 | V1 - VOC (0-100ppm) Isobutylene *** |
| 66N579 | V2 - VOC (0-1000ppm) Isobutylene *** |
| 65377 | X - SO2 (0-100ppm) (Default HiHi alarm level 25ppm) |
| 66559 | Z - Benzene (0-20ppm) *** |
| * - Chemical filter. Methane, Propane, Butane, Pentane & Hydrogen calibration only. ** - Ensures only methane and hydrogen are not absorbed. *** - Instrument should include an internal pump. + - Only one IR sensor can be fitted to an instrument. Note: LEL sensors shall not be combined. |
|
0 Reviews
Overall Rating
Additional Information
| SKU | GMI-PS500-SERIES |
|---|---|
| Manufacturer Part Code | PS500-SERIES |
