The HD Electric DigiVolt-80 Digital Phasing Voltmeter is a two-stick, compact, high-precision digital voltmeter and phasing set. As a standalone instrument, it can be used to measure voltages from 50V to 40kV; when combined with HD Electric’s R-80 Add-on Resistors (Kits 2 and 3), this range is extended to 80kV.

The HD Electric DigiVolt-80 Digital Phasing Voltmeter is available as a standalone instrument or as part of two kits; please see the ‘What’s Included?’ section for further information. See the description below for further information regarding the HD Electric DigiVolt-80 Digital Phasing Voltmeter.

HD Electric DigiVolt-80 Digital Phasing Voltmeter Description

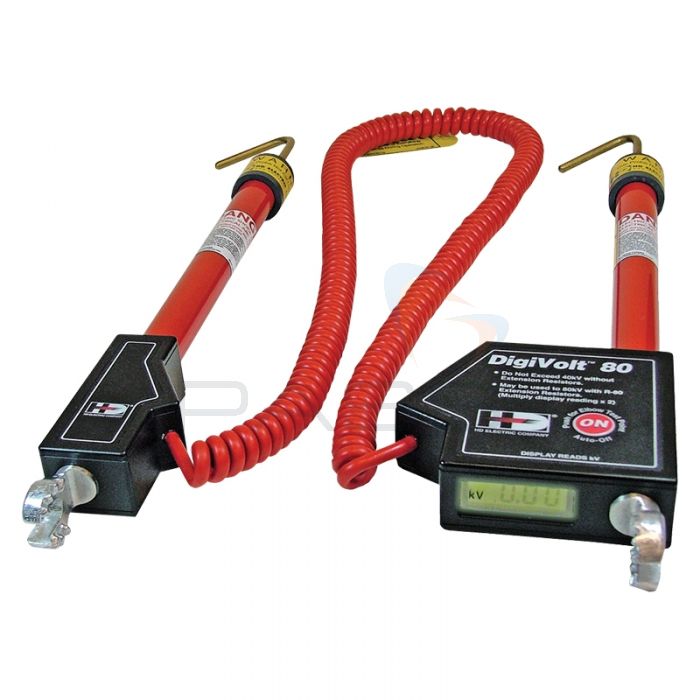

The HD Electric DigiVolt-80 Digital Phasing Voltmeter’s two-stick design makes it suitable for measuring voltages on overhead and underground systems. It can be used to measure voltages up to 40kV between line-to-line and line-to-ground; this range may be extended to 80kV when the tester is used with add-on resistors.

Due to the inclusion of Phase Accurate Technology, the HD Electric DigiVolt-80 Digital Phasing Voltmeter can repeatedly and accurately measure voltages to within 1%. HD Electric’s DVM-80 Testers are the only digital high voltage meters to include Phase Accurate Technology.

This instrument is capable of measuring both AC and DC voltages and will measure DC through 1000Hz AC RMS. The HD Electric DigiVolt-80 Digital Phasing Voltmeter displays the true-RMS voltage on the conductor. It features an auto-ranging, 3.5-digit LCD; this display is backlit to ensure that it is easy-to-read in bright or dark conditions.

Also adding to the HD Electric DigiVolt-80 Digital Phasing Voltmeter’s ease-of-use is its lack of settings or range selector switch. It features integrated universal splines for the attachment of standard hotsticks, a Flush Mount ON switch for preventing field damage, and a coiled connecting cord. It is also supplied with two hook-style overhead brass probes, a carrying case and a 9V lithium/ alkaline battery. Battery life is preserved with the help of the HD Electric DigiVolt-80 Digital Phasing Voltmeter’s Auto Shut Off feature and low battery indicator.

The HD Electric DigiVolt-80 Digital Phasing Voltmeter is a compact, rugged, lightweight digital voltmeter and phaser. Its adaptability, accuracy and extensive measurement range makes it suitable for a variety of applications including:

  • Measuring voltage and phase conductors in overhead and underground systems
  • Verifying conductors are de-energised before grounding
  • Determining if multiple conductors are in-phase or out-of-phase
  • Testing underground cables for faults (when used with HD Electric’s CFT-35 Underground Cable Fault Tester)
  • Discharging underground cables and other equipment holding capacitive charges

The HD Electric DigiVolt-80 Digital Phasing Voltmeter is a versatile, precise and dependable digital voltmeter and phasing instrument.

HD Electric DigiVolt-80 Digital Phasing Voltmeter Key Features

  • Available as a standalone instrument or as part of two kits
  • A two-stick, compact, high-precision voltmeter and phasing set
  • As a standalone instrument, it can measure voltages between 50V and 40kV
  • When used with HD Electric R-80 Add-on Resistors (Kits 2+3), it can measure voltages up to 80kV
  • Phase Accurate Technology enables measurements that are accurate and repeatable to 1%
  • HD Electric’s DVM-80 Testers are the only digital high-voltage meters to include Phase Accurate Technology
  • Measure both AC and DC voltages
  • Measure DC through 1000Hz RMS AC
  • Displays the true-RMS voltage on the conductor
  • Auto-ranging, 3.5-digit LCD display
  • The display is backlit for easy reading in dark or bright conditions
  • No settings
  • No range selector switch
  • Features integrated universal splines for the attachment of standard hotsticks
  • Flush Mount ON switch for preventing field damage
  • Coiled connecting cord
  • Supplied with two hook-style overhead brass probes, a carrying case and 9V lithium/ alkaline battery as standard
  • Auto Shut Off feature
  • Low battery indicator
  • A compact, rugged, lightweight digital voltmeter and phaser
  • Suitable for a variety of applications
  • Measure voltage and phase conductors in overhead and underground systems
  • Verify conductors are de-energised before grounding
  • Determine if multiple conductors are in-phase or out-of-phase
  • Test underground cables for faults (when used with HD Electric’s CFT-35 Underground Cable Fault Tester)
  • Discharge underground cables and other equipment that holds capacitive charges
  • A versatile, precise and dependable digital voltmeter and phasing instrument

What’s Included?

HD Electric DigiVolt-80 Digital Phasing Voltmeter

  • HD Electric DigiVolt-80 Digital Phasing Voltmeter
  • HD Electric 025-OLPS-5 Overhead Hook Probe
  • HD Electric CS-DVMC Rugged Plastic Carry Case
  • Field-replaceable 9V Lithium/ Alkaline Battery
  • Instruction Manual

HD Electric DigiVolt-80-K02 Digital Phasing Voltmeter Kit 2

  • 1x HD Electric DigiVolt-80 Digital Phasing Voltmeter
  • 2x HD Electric 025-OLPS-5 Overhead Hook Probes
  • 1x HD Electric PT-5000B Voltmeter ProofTester®
  • 2x HD Electric R-80 Add-on Resistors
  • 1x HD Electric CS-DVMC Rugged Plastic Carry Case
  • 1x Field-replaceable 9V Lithium/ Alkaline Battery
  • 1x Instruction Manual

HD Electric DigiVolt-80-K03 Digital Phasing Voltmeter Kit 3

  • 1x HD Electric DigiVolt-80 Digital Phasing Voltmeter
  • 2x HD Electric 025-OLPS-5 Overhead Hook Probes
  • 2x HD Electric R-80 Add-on Resistors
  • 1x HD Electric CS-DVMC Rugged Plastic Carry Case
  • 1x Field-replaceable 9V Lithium/ Alkaline Battery
  • 1x Instruction Manual

Kit Overview

Product Kit
HD-DVM-80 HD-DVM-80-K02 HD-DVM-80-K03
HD Electric DigiVolt-80T Digital Phasing Voltmeter  x1 x1 x1
HD Electric 025-OLPS-5 Overhead Hook Probes x2 x2 x2
HD Electric PT-5000B Voltmeter ProofTester® x1
HD Electric R-80 Add-on Resistors x2 x2
HD Electric CS-DVMC Rugged Plastic Carry Case x1 x1 x1
Field-replaceable 9V Lithium/ Alkaline Battery x1 x1 x1
Instruction Manual  x1 x1 x1
Part CodeDVM-80

HD Electric DigiVolt-80 Digital Phasing Voltmeter Technical Specifications

Operating Voltage Range 50V - 40kV (0.05kV-19.99kV and 20.0kV-40.0kV)
up to 80kV with add-on resistors (multiply reading by a factor of two)
Accuracy (line-to-ground & line-to-line measurements) Within 1% of reading +/- 3 counts
With R-80 add-on resistors installed - within 2% of reading +/- 3 counts
Operating Temperature Range -13°F to +131°F (–25°C to +55°C)
Operating Frequency 50-1000Hz AC/DC
Dimensions
Length (w/o probes) 15”(38cm)
Display housing 5”W x 4.25”L x 1.38”H (13cm x 11cm x 3.5cm)
Diameter of fiberglass 1”(2.54cm)
Connecting Cord Length 12’(3.6m) fully extended, 3.5’(1.7m) retracted
Weight: (w/o probes) 2.25 lbs. (1.02kg)
LCDNumeral Height 0.4”, indicates 3.5 digits
Battery Life 17 hours continuous use
