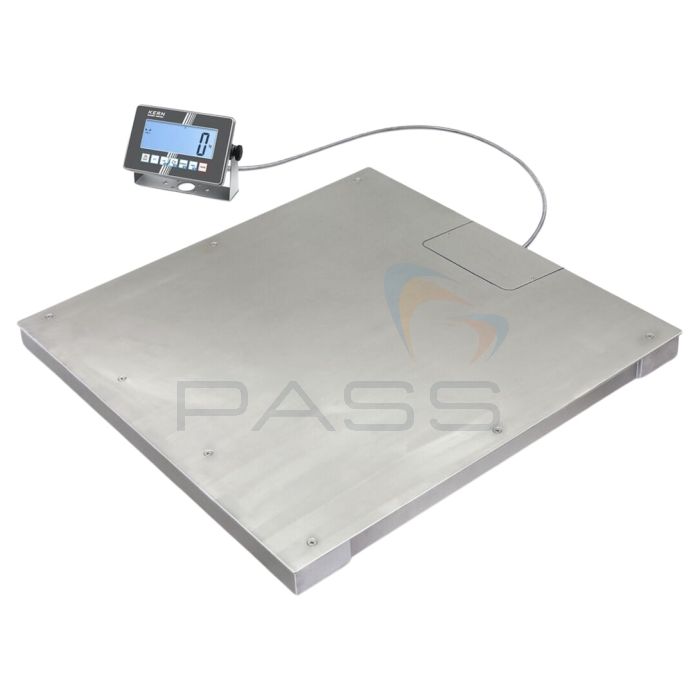

KERN BXC IoT-Line Floor Scale

These Kern floor scales are constucted from stainless steel and have an IP67 rated weighing plate screwed on. The display device is also stainless steel and is IP68 rated. Four options to choose from.

Key Features

• Tough industry standard suitable for use in harsh industrial applications
• Weighing plate screwed on from the top with stainless steel screws, so it‘s easy to remove, hygienic and easy to clean
• Weighing bridge: stainless steel, extremely resistant to bending due to material thickness, 4 hermetically welded stainless steel load cells, IP68 dust and spray protection
• Easy levelling of the weighing bridge, as well as access to the junction box from above
• Display device:
  • With dust and spray protection (IP68), which makes it ideal for use in industry and outdoors
  • Standardised, convenient KERN concept of operation, consistency across products in terms of design, menu structure, button functions, interface connection and interface protocol
  • Industry 4.0: The exchange of data and control commands is optional using up to four interfaces to suit individual requirements: two wired connections (RS-232, Ethernet, USB or analogue module) and two wireless connections (WiFi, Bluetooth)
  • Each interface can be set up separately, e.g.:
    - Interface 1 (WiFi): Continuous sending to a PC for documentation of a process
    - Interface 2 (RS-232): Print stable weight
    - Interface 3 (analogue module): Controlling a device when the target weight is reached
    - Interface 4 (Bluetooth): Continuous sending to a tablet to monitor a process
  • Data query and remote control of the balance using a computer or CRM/ERP systems using the KERN Communication Protocol
  • Main cable with open ends, length approx. 2,5 m
• IoT line: networkable balances with a user-friendly concept of operation
• Available as an option with Alibi memory for paperless archiving of weighing results. This also means the results of weighings with mandatory verification can be electronically evaluated and processed further
• Benchtop stand incl. wall mount for display device as standard

Product Range

• KERN BXC 600K-1SM IoT-Line Floor Scale, 600 kg, 1000 x 1000 mm
• KERN BXC 1.5T-4M IoT-Line Floor Scale, 1500 kg, 1500 x 1250 mm
• KERN BXC 1.5T-4SM IoT-Line Floor Scale, 1500 kg, 1000 x 1000 mm
• KERN BXC 3T-3M IoT-Line Floor Scale, 3000 kg, 1500 x 1250 mm
