Kern IOC Industrial Platform Scales – Choice of Model

SKU
Kern-IOC
Rating:
0%
(0)
As low as £318.60 £265.50
Free UK Delivery*
Price Match Guarantee & Advice

The Kern IOC Industrial Platform Scales are suitable for laboratory, production, quality control and commissioning applications. Their multiple communication interfaces also make them ideal for a variety of Industry 4.0 applications.

The Kern IOC Industrial Platform Scales are available in ten models with varying measurement ranges and weighing plate sizes.

Model Code Model Name

Weighing Range

[Max]

kg

Readout

[d]

g

Verification Value

[e]

g

Minimal Load

[Min]

g

Weighing Plate Dimensions

[WxDxH]

mm

IOC 6K-3M Kern IOC 6K-3M Industrial Platform Scales 3 | 6 1 | 2 1 | 2 20 | 40 300×300x110
IOC 10K-3M Kern IOC 10K-3M Industrial Platform Scales 6 | 15 2 | 5 2 | 5 40 | 100 300x300x110
IOC 10K-3LM Kern IOC 10K-3LM Industrial Platform Scales 6 | 15 2 | 5 2 | 5 40 | 100 400x300x110
IOC 30K-3M Kern IOC 30K-3M Industrial Platform Scales 15 | 30 5 | 10 5 | 10 100 | 200 400x300x110
IOC 60K-2M Kern IOC 60K-2M Industrial Platform Scales 30 | 60 10 | 20 10 | 20 200 | 400 400x300x110
IOC 60K-2LM Kern IOC 60K-2LM Industrial Platform Scales 30 | 60 10 | 20 10 | 20 200 | 400 500x400x120
IOC 100K-2M Kern IOC 100K-2M Industrial Platform Scales 60 | 150 20 | 50 20 | 50 400 | 1000 500x400x120
IOC 100K-2LM Kern IOC 100K-2LM Industrial Platform Scales 60 | 150 20 | 50 20 | 50 400 | 1000 650x500x150
IOC 300K-2M Kern IOC 300K-2M Industrial Platform Scales 150 | 300 50 | 100 50 | 100 1000 | 2000 650x500x150
IOC 600K-1M Kern IOC 600K-1M Industrial Platform Scales 300 | 600 100 | 200 100 | 200 2000 | 4000 800x600x200

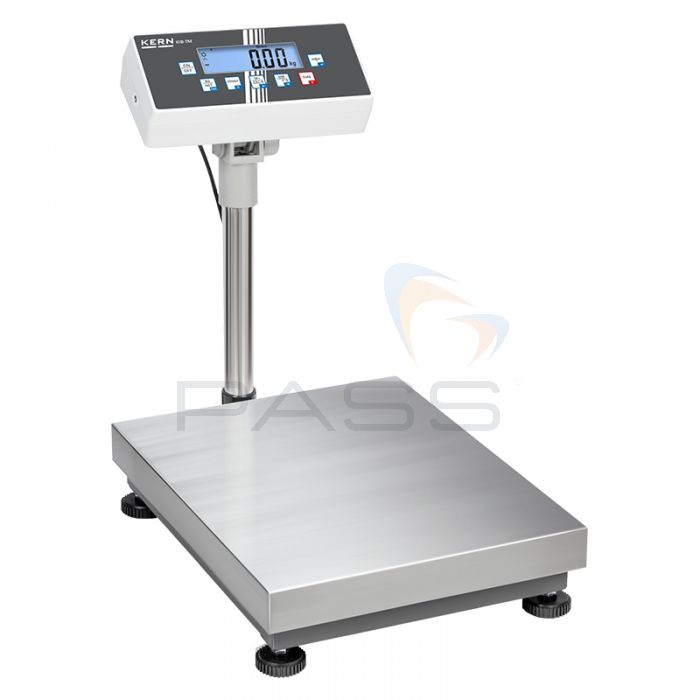

These scales consist of a weighing plate and a display unit connected to the weighing platform via a cable. The weighing plates have been optimised for use in industrial environments and to this end are constructed from stainless steel and feature a painted steel base and silicone-coated aluminium load cell. They have an ingress protection rating of 65, protecting the scales from damage caused by dust and water splashes.

The Kern IOC Industrial Platform Scales also feature levelling feet and a level indicator to ensure accurate and reliable weighing results.

Measurements are viewable on the large, backlit LCD display with a 24mm digit height. In addition to conducting simple weight measurements, the Kern IOC Industrial Platform Scales also feature an array of measurement functions for various other applications. The Kern IOC Industrial Platform Scales include the following functions:

  • Pieces-counting
  • Totalising: the weights of similar items are added together and the total can be sent to print
  • Percentage deviation: the difference between the actual weight and the target weight (100%) is displayed as a percentage
  • Checkweighing: programmable upper and lower limits; when limits are breached the scales will issue an audible and visual signal; this function is ideal for sorting, dosing, dispensing and grading applications
  • Hold: determines an average weight when weighing conditions are unsteady

Readings can be sent to print via the Kern IOC Industrial Platform Scales’ RS-232 interfaces and using a compatible Kern printer (NOT included). Measurements are printed with the date and time.

The Kern IOC Industrial Platform Scales also features Kern’s Communication Protocol (KCP) network. The KCP network allows the user to connect the scales to KCP compatible PCs, industrial control systems, and other digital systems facilitating the user’s ability to access and alter measurement parameters and functions remotely. This network, as well as the scales’ RS-232 interface, makes it easy to transfer data to tablets, laptops, PCs, networks, smartphones and printers, thereby adding to the scales' suitability for applications in the Industry 4.0 sector. Please note that the Kern IOC Industrial Platform Scales can be bought with WLAN, Ethernet, Bluetooth and USB interfaces. These must be ordered at the point of sale (see 'Accessories').

The Kern IOC Industrial Platform Scales' practicality extends to their physical design; these scales are lightweight and compact, ensuring that they can be easily transported around the worksites.

The Kern IOC Industrial Platform Scales are practical, precise and portable balances, they are ideal for a variety of applications within the scientific, commissioning, production, quality control and Industry 4.0 sectors.

Kern IOC Industrial Platform Scales Key Features

  • Suitable for laboratory, quality control, production, commissioning and Industry 4.0 applications
  • Ten models with various measurement ranges and weighing plate sizes
  • Consist of a weighing plate and display unit connected to the platform via a cable
  • The weighing plate is constructed from stainless steel and features a painted steel base and silicone-coated aluminium load cell
  • IP65: protected against dust and water splash ingress
  • Levelling feet and level indicator ensure precise and repeatable measurements
  • Large, backlit LCD display with a 24mm digit height
  • Pieces-counting function
  • Totalising function: the weights of similar items are added together and the total can be sent to print
  • Percentage deviation function: the difference between the actual weight and the target weight (100%) is displayed as a percentage
  • Checkweighing function: programmable upper and lower limits; when limits are breached the scales will issue an audible and visual signal; this function is ideal for sorting, dosing, dispensing and grading applications
  • Hold function: determines an average weight when weighing conditions are unsteady
  • Send measurements to print via the RS-232 interface and using a compatible Kern Printer (NOT included)
  • Measurements are printed with the date and time
  • Includes Kern’s Communication Protocol (KCP) network
  • Connect to KCP compatible PCs, industrial control systems, and other digital systems via KCP
  • Access measurement parameters and functions remotely via KCP
  • Easily transfer data to tablets, laptops, PCs, networks, smartphones and printers via the KCP network or RS-232 interface
  • KCP improves the scales suitability for Industry 4.0 applications
  • Can be purchased with WLAN, Ethernet, Bluetooth and USB interfaces (see 'Accessories')
  • Lightweight and compact design
  • Practical, precise and portable balances
  • Ideal for a variety of applications in the scientific, commissioning, production, quality control and Industry 4.0 sectors

What’s Included?

  • Your Choice of Kern IOC Industrial Platform Scales
  • Mains Adapter

Accessories

There are a number of Kern accessories compatible with the Kern IOC Industrial Platform Scales including Kern calibrations and batteries. For a quick overview of the accessories available for the Kern IOC Industrial Platform Scales, please see the table below. For further information, or to add a product listed below to an order, please contact our sales team prior to purchase.

Product Code Product Name
963-128 Kern DAkkS Calibration for IOC 6K-3M, IOC 10K-3M, IOC 10K-3LM and IOC 30K-3M
963-129 Kern DAkkS Calibration for IOC 60K-2M, IOC 60K-2LM, IOC 100K-2M, IOC 100K-2M, IOC 100K-2LM and IOC 300K-2M
963-130 Kern DAkkS Calibration for IOC 600K-1M
963-228 Kern MIII Verification for IOC 6K-3M, IOC 10K-3M, IOC 10K-3LM and IOC 30K-3M
963-229 Kern MIII Verification for IOC 60K-2M, IOC 60K-2LM, IOC 100K-2M, IOC 100K-2M, IOC 100K-2LM and IOC 300K-2M
963-230 Kern MIII Verification for IOC 600K-1M
EOC-A01S05 Kern Protective Working Cover
EOC-A05 Kern Stand for Display Unit (330mm)
EOC-A03 Kern Mount to Fasten the Display Unit to the Platform
EOC-A04 Kern Mount for Display Unit
KFB-A01 Kern Internal Rechargeable Battery Pack (MUST BE ORDERED AT TIME OF PURCHASE)
KIB-A03 Kern USB Interface
KIB-A04 Kern Bluetooth Interface
KIB-A10 Kern WLAN Interface
KIB-A02 Kern Ethernet Interface
KIB-A06 Kern Signal Lamp
KIB-A01 Kern Alibi Memory
KIB-M01 Kerrn Conversion of Display Unit to move the Cable Outlet to the Front
KIB-A12 Kern Plastic Verification Plug
Part CodeIOC 10K-3M

Kern IOC Industrial Platform Scales Technical Specifications

Please find above a selection of PDF documents detailing the technical specifications for the Kern IOC Industrial Platform Scales.
