Description

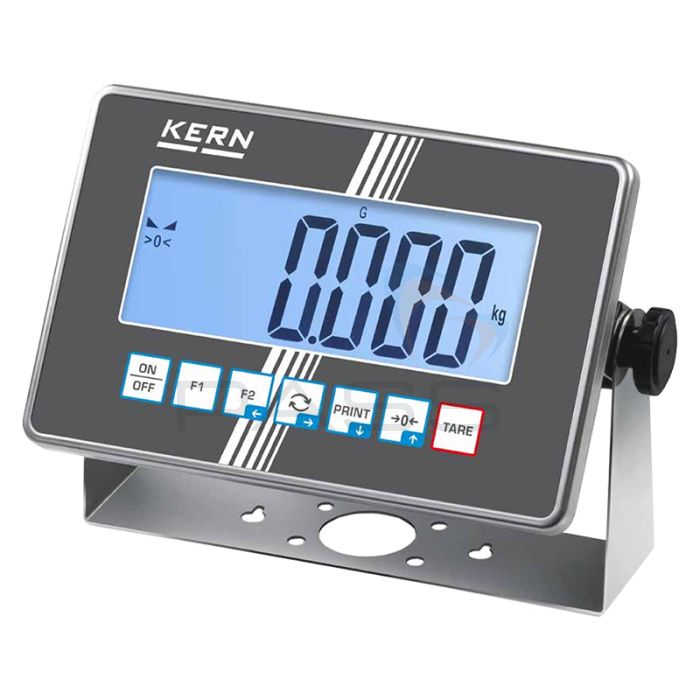

The Kern KXC-TM is a stainless steel display device with IP68 dust and spray protection and up to four interfaces.
Key Features
- With dust and spray protection (IP68), which makes it ideal for use in industry and outdoors
- Standardised, convenient KERN concept of operation, consistency across products in terms of design, menu structure, button functions, interface connection, and interface protocol
- Industry 4.0: The exchange of data and control commands is optional using up to four interfaces to suit individual requirements: two wired connections (RS 232, Ethernet, USB, or analogue module) and two wireless connections (WiFi or Bluetooth)
- Each interface can be set up separately, e.g.:
- Interface 1 (WiFi): Continuous sending to PC for documentation of a process
- Interface 2 (RS-232): Print stable weight
- Interface 3 (analogue module): Controlling a device when the target weight is reached
- Interface 4 (Bluetooth): Continuous sending to a tablet to monitor a process
- Data query and remote control of the balance using a computer or CRM/ERP system using the KERN Communication Protocol
- Available as an option with alibi memory for paperless archiving of weighing results. This also means the results of weighings with mandatory verification can be electronically evaluated and processed further
* Note: only two wired connections (RS-232, Ethernet, USB, or analogue module) and two wireless connections (WiFi or Bluetooth) can be used at the same time
Tech Specs
Display (segments) | 6 |
---|---|
EU type approval | Yes |
Resolution (verifiable) | 3.000 / 2 x 3.000 |
Resolution (non-verifiable) | 100 - 999.999 |
Weighing capacities | single-range / 2 x multi-range / 2 x multi-division |
Weighing units | kg, g, lb, ffa, PCS, % |
Piece counting with reference | 5, 10, 20, 50, n |
Display, digit height | 48 mm |
Strain gauge load cells | 87 - 1100 Ω |
Linearisation (points) | 2 / 3 / 5 |
Input voltage | 110 V - 240 V AC |
Accu operation time - without backlight | 48 hours |
Accu charging time | 8 hours |
Dimensions Housing W x D x H | 232 x 150 x 80 mm |
Net weight | 2.6 kg |
Permissible ambient temperature | -10°C/40°C |
