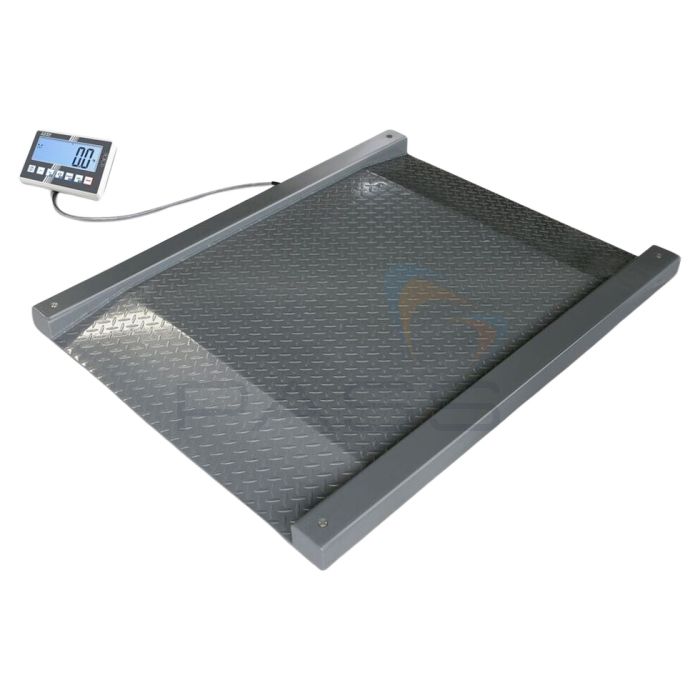

KERN NFC IoT-Line Drive-Through Scale

All KERN Products
  • Networkable balances
  • Real Time Clock
  • Four models available
SKU
KERN-NFC

Read More

View All Industrial Platform, Floor & Pallet Scales

These Kern networkable drive-through scales are IP67 rated and suitable for weighing wire cage trolleys, shelf trolleys, transpallets, mobile containers, containers, refuse, etc.

Key Features

  • Weighing bridge: out of anti-slip corrugated steel, 4 silicone-coated steel load cells, IP67 dust and spray protection
  • Display device:
    • Standardised, convenient KERN concept of operation, consistency across products in terms of design, menu structure, button functions, interface connection and interface protocol
    • KERN Universal Port (KUP): permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet, for the exchange of data and control commands, without any installation outlay
    • The following interfaces are available as an option: RS-232, USB, Analogue module, Ethernet, WiFi, Bluetooth
    • Each interface can be set up separately, e.g.:
      - Interface 1 (WiFi): Continuous sending to a PC for documentation of a process
      - Interface 2 (RS-232): Print stable weight
      - Interface 3 (analogue module): Controlling a device when the target weight is reached
    • Available as an option with Alibi memory for paperless archiving of weighing results. This also means the results of weighings with mandatory verification can be electronically evaluated and processed further
    • Simplified battery replacement through easily accessible housing.
  • IoT line: networkable balances with a user-friendly concept of operation
  • Industry 4.0: Data and control commands can be exchanged through the KERN Universal Port KUP using one interface, which can be connected to the housing, or through three parallel interfaces using the KUP Extension box
  • With Real Time Clock as standard: Enables you to log the weighing results with accurate time information. Even if the power supply is interrupted, the balance can continue to work with the correct time
  • Protective working cover is included with delivery
  • Data query and remote control of the balance using a computer or CRM/ERP systems using the KERN Communication Protocol

Product Range

  • KERN NFC 600K-1M IoT-Line Drive-Through Scale, 600 kg, 1000 x 1000 mm
  • KERN NFC 600K-1LM IoT-Line Drive-Through Scale, 600 kg, 1200 x 1200 mm
  • KERN NFC 1.5T-4M IoT-Line Drive-Through Scale, 1500 kg, 1000 x 1000 mm
  • KERN NFC 1.5T-4LM IoT-Line Drive-Through Scale, 1500 kg, 1200 x 1200 mm
Call for Pricing

This item requires a shipping quote

Call 01642 931 329 or complete the form:

Technical Information
Specification
NFC 600K-1M NFC 600K-1LM NFC 1.5T-4M NFC 1.5T-4LM
Weighing capacity [Max] 600 kg 1500 kg
Readability [d] 0,2 kg 0,5 kg
Verification scale interval [e] 0,2 kg 0,5 kg
Units kg, g, ffa, PCS, %
Minimum weight [Min] 4 kg 10 kg
Dimensions of weighing platform (W x D x H) 1600 x 1220 x 95 mm 1800 x 1420 x 95 mm 1600 x 1220 x 95 mm 1800 x 1420 x 95 mm
Dimensions of weighing surface (W x D) 1000 x 1000 mm 1200 x 1200 mm 1000 x 1000 mm 1200 x 1200 mm
Reproducibility 0,2 kg 0,5 kg
Linearity ± 0,4 kg ± 0,6 kg ± 1,5 kg
Ambient temperature -10 °C - 40 °C
Smallest piece weight when piece counting - normal conditions 2 kg 5 kg
Conformity assessment is possible ex works
Display type LCD
Display digit height 48 mm
Material weighing plate steel, powder-coated
Material platform steel, powder-coated
Display device cable length 5 m
Tolerance weighing
Net weight approx. 130 kg 165 kg 130 kg 165 kg
IP protection - complete device -
IP protection - display No IP protection
IP protection - platform IP67
IP protection - load cell IP67
Construction type of the scale Single-range balance
Document Downloads
KERN NFC 600K-1LM IoT-Line Drive-Through Scale Datasheet Datasheet
KERN NFC 1.5T-4M IoT-Line Drive-Through Scale Datasheet Datasheet
KERN NFC 1.5T-4LM IoT-Line Drive-Through Scale Datasheet Datasheet
KERN NFC 600K-1M IoT-Line Drive-Through Scale Datasheet Datasheet
KERN NFC IoT-Line Drive-Through Scale Brochure Brochure/Catalogue
