Kern OBS School Compound Microscope

SKU
KERN-OBS
Rating:
0%
(0)
As low as £221.40 £184.50
Free UK Delivery*

Choose a Special Offer

  • Kern OCS 901 Microscope Cleaning Set
    Kern OCS 901 Microscope Cleaning Set (OCS 901)
    FREE
    £22.50
    £27.00
Price Match Guarantee & Advice
Free Kern Cleaning Set

Kern's OBS microscopes are specifically designed for use in educational environments, and are an excellent tool for enhancing science studies in primary and secondary schools, training establishments or simply for hobbyist use.

Easy to use with solid, reliable magnification capabilities, Kern's OBS range is easy to understand for students and provides them with the ability to see a wide variety of samples magnified.

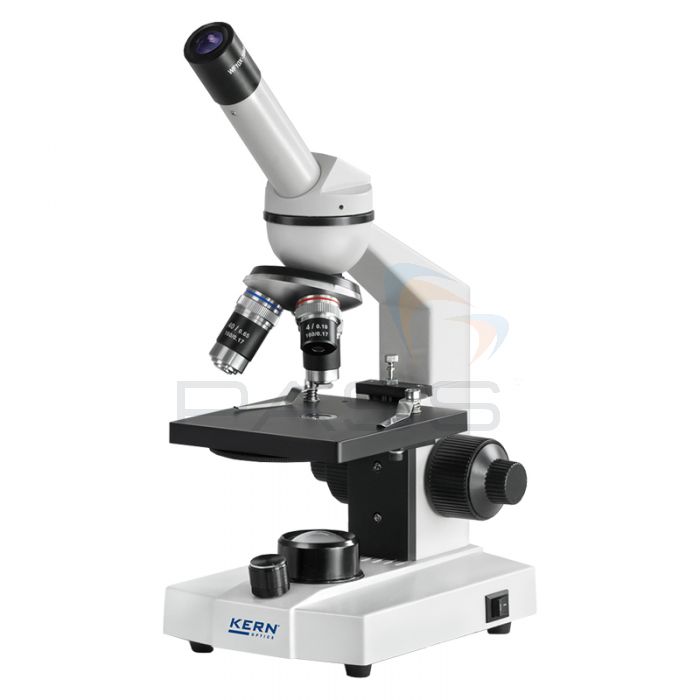

The functionality of the microscope depends upon the model you purchase - the OBS101 is a single optic (monocular) scope with 0.65 condenser lens and a rotating aperture diaphragm disc for best concentration of light and illumination with minimal adjustments. The OSB104 and OSB 106 models have binocular-style viewers and come with a 1.25 Abbe condenser which is height-adjustable, allowing the focus on the object to be adjusted as needed.

All models in the series come as standard with a coarse and fine focusing knob on both sides for easy adjustments. OBS 101 and OBS 104 models have fixed, non-moveable stages for samples, while the OBS 106 model comes with a mechanical, moveable stage.

These microscopes are recommended for the study of translucent, thin, high-contrast, less complex samples such as plant tissue, coloured cells and parasites.

Kern OBS School Compound Microscope Key Features

  • Precise, easy-to-use microscopes made for use in educational environments
  • Choice of three different models available
  • Continuously dimmable, 0.5W LED illuminator gives excellent illumination with long-life use
  • Simple, 0.65 condenser lens with rotating aperture diaphragm on OBS 101 model for excellent illumination without adjustment
  • 1.25 Abbe condenser with height adjustment on OBS 104 and OBS 106 models for adjustable focus
  • Coarse/fine focusing knobs on side of the microscopes
  • Fixed, non-moveable stage for OBS 101 and OBS 104 models, moveable mechanical stage for OBS 106 model
  • Single optic (monocular) on OBS 101, dual optic (binocular) on OBS 104 and OBS 106
  • Powered by rechargeable batteries or mains connection
  • 2 year warranty

Model Differences

The following table outlines the difference between each of the models in Kern's OBS series.

The microscopes can be configured different before purchasing with optional parts. Items included normally are shown as 'standard' in the table below.

If you would like to configure your scope, please call us for more information)

Model DesignKern Model NumbersOrder Number
OBS 101OBS 104OBS 106
Eyepieces (23.2mm) WF 10x / 18mm diameter Standard (1x) Standard (2x) Standard (2x) OBB-A 1473
WF 16x / 13mm diameter Optional Optional Optional OBB-A 1474
WF 20x / 11mm diameter Optional Optional Optional OBB-A 1475
WF 10x / 18mm (with pointer) Optional Optional Optional OBB-A 1348
Achromatic Objectives 4x/0.10 W.D. 18.0mm Standard Standard Standard OBB-A 1476
10x/0.25 W.D, 7.0mm Standard Standard Standard OBB-A 1477
40x/0.65 (spring), W.D 0.53mm Standard Standard Standard OBB-A 1478
60x/0.85 (spring), W.D 0.1mm Optional Optional Optional OBB-A 1479
100x/1.25 (oil) (spring) W.D 0.07mm Optional Optional Optional OBB-A 1480
E-Plan 100x / 0.80 (dry) (spring) W.D. 0.15mm Optional Optional Optional OBB-A 1442
Plan 100x / 1.0 (water) (spring) W.D. 0.18mm Optional Optional Optional OBB-A 1441
Monocular Tube 45° inclined, 360° rotatable Yes No No OBB-A 1471
Binocolar Tube 30° inclined/360° rotatable
Interpupillary distance 55-75mm
Diopter adjustment: both-sided
No Yes Yes OBB-A 1472
Fixed Stage Stage size WxD 110 x 120mm
Coaxial coarse and fine focusing knobs, scale: 2.5μm
Yes Yes No -
Mechanical Stage Stage Size W x D 115 x 125mm
Travel 75 x 18mm
Coaxial coarse and fine focusing knobs, scale: 2.5μm
No No Yes -
Condenser Simple Condenser N.A 0.65 Yes No No -
Abbe N.A. 1.25 (Aperture Diagram) No Yes Yes -
Illumination 0.5W LED illumination system (transmitted) (rechargeable) Yes Yes Yes -
Colour Filters for Transmitted Illumination Blue Standard Standard Standard OBB-A 1446
Green Optional Optional Optional OBB-A 1467
Yellow Optional Optional Optional OBB-A 1468
Grey Optional Optional Optional OBB-A 1184
Part CodeOBS 101
