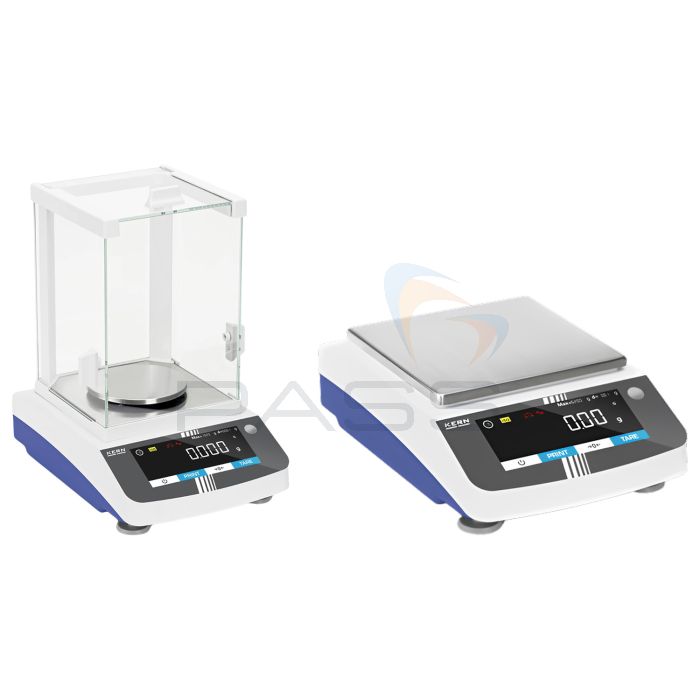

KERN PDS Precision Balance
- GLP/ISO record keeping
- Data query and remote control
- Underfloor weighing
- Seven models to choose from
SKU
KERN-PDS
These Kern precision balances have a touch display and flexible functionality. Seven models are available to choose from.
Key Features
- The wide range of functions of this range of precision balances means that they qualify for use in the pharmaceutical industry as well as other fields. These include, for example, the statistical function, weighing with tolerance range, counting function, percentage weighing, totalizing function and many more
- Modern touch display with convenient operation enables you to, for example, switch the units or start adjustment straight from the display
- GLP/ISO record keeping with date, time and identification number of balance adjustment or weighing process
- U.S. FDA 21 Part 11: assists in data integrity in accordance with U.S. FDA 21 Part 11 (for example, weighing result, sample ID, user name, scales ID, ...)
- Data query and remote control of the balance using a computer or CRM/ERP systems using the KERN Communication Protocol
- Underfloor weighing: load support on the underside of the balance for models. Loop for underfloor weighing, standard
- RS 232 data interface and USB (Device) for the transfer of weighing data
- Menu language EN
Product Range
- KERN PDS 300-3 Precision Balance, 320 g
- KERN PDS 600-3 Precision Balance, 620 g
- KERN PDS 1000-3 Precision Balance, 1020 g
- KERN PDS 2000-2 Precision Balance, 2200 g
- KERN PDS 4000-2 Precision Balance, 4200 g
- KERN PDS 6000-2 Precision Balance, 6200 g
- KERN PDS 10K-5 Precision Balance, 10000 g
Technical Information
Specification
| PDS 300-3 | PDS 600-3 | PDS 1000-3 | PDS 2000-2 | PDS 4000-2 | PDS 6000-2 | PDS 10K-5 | |
|---|---|---|---|---|---|---|---|
| Weighing capacity [Max] | 320 g | 620 g | 1020 g | 2200 g | 4200 g | 6200 g | 10000 g |
| Readability [d] | 0,001 g | 0,01 g | |||||
| Units | kg, g, mg, gn, dwt, tl (Tw), ozt, ct, lb, N, oz, ffa | ||||||
| Linearity | ± 0,003 g | ± 0,005 g | ± 0,03 g | ||||
| Reproducibility | 0,003 g | 0,004 g | 0,03 g | ||||
| Stabilization time | 3 s | 4 s | 2 s | 3 s | 5 s | ||
| Tolerance weighing | ✔ | ||||||
| Interfaces | RS-232 standard, USB-Device | ||||||
| Adjustment options | Adjusting with external weight | ||||||
| Recommended adjusting weight | 200 g (E2) | 500 g (E2) | 1 kg (E2) | 2 kg (E2) | 4 kg (E2) | 5 kg (E2) | 10 kg (E2) |
| Ambient temperature | 15 °C - 25 °C | ||||||
| Dimensions of weighing surface (Ø) | 115 mm | 185 x 185 mm | |||||
| Material draught shield | glass | - | |||||
| Material housing | ABS plastic | ||||||
| Material weighing plate | stainless steel | ||||||
| Net weight approx. | 6 kg | 3,6 kg | 5 kg | ||||
| Construction type of the scale | Single-range balance | ||||||
Document Downloads
KERN PDS 2000-2 Precision Balance, 2200 g Datasheet
KERN PDS 300-3 Precision Balance, 320 g Datasheet
KERN PDS 4000-2 Precision Balance, 4200 g Datasheet
KERN PDS 600-3 Precision Balance, 620 g Datasheet
KERN PDS 6000-2 Precision Balance, 6200 g Datasheet
KERN PDS 1000-3 Precision Balance, 1020 g Datasheet
KERN PDS · PDT Precision Balance Brochure
