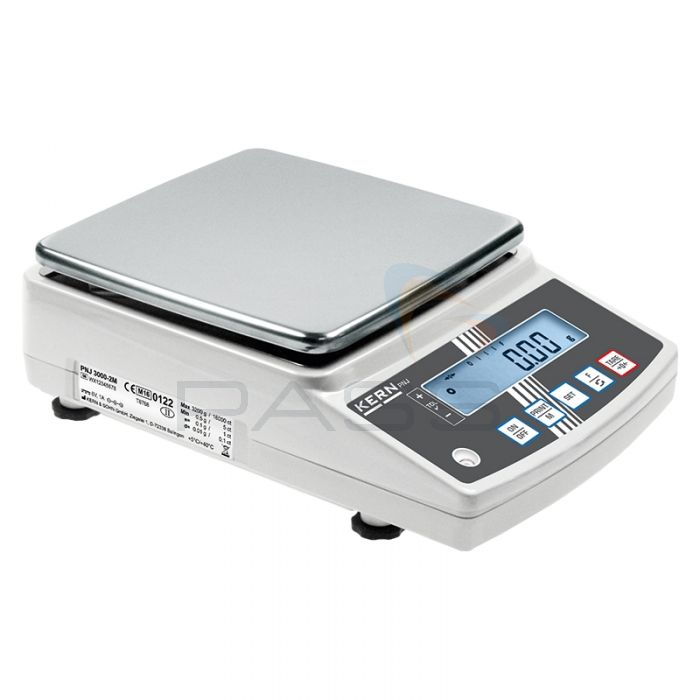

Kern PNJ Precision Balances (620g - 12,000g) – Choice of Model
The Kern PNJ Precision Balances are optimised to provide stable weight readings and continuous weighing, as such they include a high-quality tuning fork weighing system.
The Kern PNJ Precision Balances are available in three models with different measurement ranges and weighing plate designs.
| Model Code | Model Name |
Weighing Range [Max] g |
Readout [d] g |
Verification Value [e] g |
Minimal Load [Min] g |
Linearity g |
Weight Plate Type | Weighing Plate Dimensions |
| PNJ 600-3M | Kern PNJ 600-3M Precision Balance | 620 | 0.001 | 0.01 | 0.02 | ±0.004 | A | ø 140mm |
| PNJ 3000-2M | Kern PNJ 3000-2M Precision Balance | 3200 | 0.01 | 0.1 | 0.5 | ±0.02 | B | WxD: 190 x 190mm |
| PNJ 12000-1M | Kern PNJ 12000-1M Precision Balance | 12000 | 0.1 | 1 | 5 | ±0.2 | B | WxD: 190 x 190mm |
All of the Kern PNJ Precision Balances support automatic internal adjustment ensuring that they remain accurate regardless of their environmental surroundings. This system, combined with the scales’ compact design, makes them ideal for mobile verification applications such as ambulatory gold and jewellery purchasing.
Regardless of design, the Kern PNJ Precision Balances’ large weighing plates are constructed from stainless steel and have been optimised to remain shockproof. Instruments with A-style weighing plates are also supplied with a large, glass draught shield with three sliding doors; this accessory ensures that the sample being weighed is protected from contamination whilst providing the operator with easy access to the weighing plate.
Measurements are indicated on the Kern PNJ Precision Balances’ large LCD displays with a digit height of 16.5mm. The user can configure the balances to indicated measurements in the unit of his/her choice; readings are displayed with the balance’s serial number, the user’s ID, the date, and the time.
Via the display, the user can also view a capacity bar that illuminates to indicate the remaining weighing range. It is possible to program the Kern PNJ Precision Balances to include upper and lower limits; when these limits are reached or breached the scales will alert the user via a visual and audible alarm.
Other measurement functions present on the Kern PNJ Precision Balances include:
- Percentage Determination: the percentage deviation from the target value (100%) is calculated
- Piece Counting: the accuracy of the average piece weight improves gradually due to the automatic reference weight optimisation of the reference weight
Measurements can be exported to a PC or printer (see ‘Accessories’) using the RS-232 interface.
The Kern PNJ Precision Balances are portable, practical and precise scales suitable for mobile verification, as well as laboratory applications.
Kern PNJ Precision Balances Key Features
- Optimised for providing stable weight readings and continuous weighing
- Available in three models with different ranges and weighing plate designs
- Automatic internal adjustment ensuring the scales remain accurate regardless of their surroundings
- Compact design
- Ideal for mobile verification applications such as ambulatory gold and jewellery purchasing
- Large weighing plates are shockproof and constructed from stainless steel
- Scales with weighing plate A are supplied with a large, glass draught shield with three sliding doors
- Large, LCD display with a digit height of 16.5mm
- User-selectable measurement units
- Readings are displayed with the balance’s serial number, the user’s ID, the date, and the time
- Capacity bar illuminates to indicate the remaining weighing range
- Programmable upper and lower limits with a visual and audible indication
- Percentage Determination function
- Piece Counting function
- The accuracy of the average piece weight improves gradually due to the automatic reference weight optimisation of the reference weight
- Measurements can be exported to a PC or printer (see ‘Accessories’) via the RS-232 interface
- Portable, practical, precise scales
- Suitable for mobile verification as well as laboratory applications
What’s Included?
- Your Choice of Kern PNJ Precision Balance
- Protective Working Cover
- Universal Mains Adapter
Please note the Kern PNJ 600-3M Precision Balance with weighing plate A is supplied with a large, glass draught shield.
Accessories
There are a number of accessories available for the Kern PNJ Precision Balances, including Kern DAkkS Calibrations and MII Verifications. Please see the table below for further details. To add an item listed below to an order, or for further information, please contact our sales team PRIOR to purchase.
| Product Code | Product Name |
| 965-216 | Kern MII Verification for the models PNJ 600-3M and PNJ 3000-2M (MUST BE ORDERED AT THE TIME OF PURCHASE) |
| 965-217 | Kern MII Verification for the model PNJ 12000-1M (MUST BE ORDERED AT THE TIME OF PURCHASE) |
| 963-127 | Kern DAkkS Calibration for the models PNJ 600-3M and PNJ 3000-2M (MUST BE ORDERED AT THE TIME OF PURCHASE) |
| 963-128 | Kern DAkkS Calibration for the model PNJ 12000-1M (MUST BE ORDERED AT THE TIME OF PURCHASE) |
| PNJ-A01S05 | Kern Protective Working Cover |
| AEJ-A05 | Kern Precious Stones Plate |
| YKI-01 | Kern RS-232/ Ethernet Adapter |
| YKI-02 | Kern RS-232/ Bluetooth Adapter |
| YKI-03 | Kern RS-232/ Wi-Fi Adapter |
| YKE-A03 | Kern Roll of Labels for the Kern YKE-01 Label Printer |
| YKE-01 | Kern Label Printer |
| YKE-A02 | Kern Roll of Labels for the Kern YKE-01 Printer |
| SCD-4-XXX | Kern BalanceConnection Software (Multiple versions Available) |
Country of Origin: Germany
Kern PNJ Precision Balances Technical Specifications
Please find above a selection of PDF documents detailing the technical specifications for the Kern PNJ Precision Balances.
| SKU | Kern-PNJ |
|---|---|
| Manufacturer Part Code | PNJ 3000-2M |
