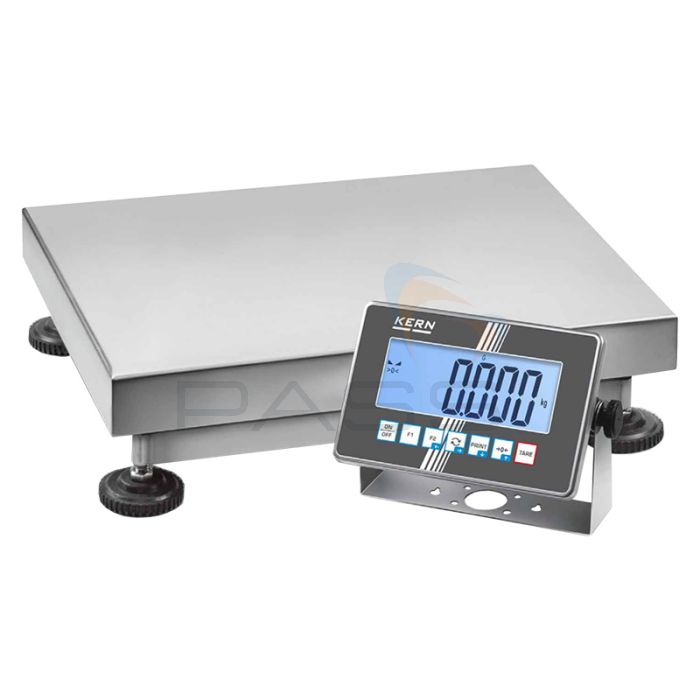

Kern SXC IoT-Line Stainless Steel Platform Scale (6kg - 300kg) - Choice of Model
Description
These Kern balances are interlinked for the industry of the future. They are made from stainless steel and have up to four data interfaces and optional alibi memory.
Key Features
- Ideal for robust industrial applications
- Platform: made entirely of stainless steel, hermetically welded stainless steel load cell with protection against dust and water splashes IP68
- Display device: stainless steel, dust and splash water protection IP68, integrated power supply
- Ideal for the increased hygienic requirements in the food industries
- Superior display size: digit height 48 mm, bright backlight for easy reading of weighing results, even in poor lighting conditions
- Standardised, convenient KERN concept of operation, consistency across products in terms of design, menu structure, button functions, interface connection, and interface protocol
- Industry 4.0: The exchange of data and control commands is optional using up to four interfaces to suit individual requirements: two wired connections (RS-232, Ethernet, USB or analogue module) and two wireless connections (WiFi, Bluetooth)
- Each interface can be set up separately, e.g.:
- - Interface 1 (WiFi): Continuous sending to a PC for documentation of a process
- - Interface 2 (RS-232): Print stable weight
- - Interface 3 (analogue module): Controlling a device when the target weight is reached
- - Interface 4 (Bluetooth): Continuous sending to a tablet to monitor a process
- Data query and remote control of the balance using a computer or CRM/ERP system using the KERN Communication Protocol
- Available as an option with alibi memory for paperless archiving of weighing results. This also means the results of weighings with mandatory verification can be electronically evaluated and processed further
Product Range
- Kern SXC 6K-4 IoT-Line Stainless Steel Platform Scale, Weighing Capacity 6kg
- Kern SXC 10K-3 IoT-Line Stainless Steel Platform Scale, Weighing Capacity 15kg
- Kern SXC 10K-3L IoT-Line Stainless Steel Platform Scale, Weighing Capacity 15kg, Large
- Kern SXC 30K-3 IoT-Line Stainless Steel Platform Scale, Weighing Capacity 30kg
- Kern SXC 30K-3L IoT-Line Stainless Steel Platform Scale, Weighing Capacity 30kg, Large
- Kern SXC 60K-3 IoT-Line Stainless Steel Platform Scale, Weighing Capacity 60kg
- Kern SXC 60K-3L IoT-Line Stainless Steel Platform Scale, Weighing Capacity 60kg, Large
- Kern SXC 100K-2 IoT-Line Stainless Steel Platform Scale, Weighing Capacity 150kg
- Kern SXC 100K-2L IoT-Line Stainless Steel Platform Scale, Weighing Capacity 150kg, Large
- Kern SXC 300K-2 IoT-Line Stainless Steel Platform Scale, Weighing Capacity 300kg
Tech Specs
| SXC 6K-4 | SXC 10K-3 | SXC 10K-3L | SXC 30K-3 | SXC 30K-3L | SXC 60K-3 | SXC 60K-3L | SXC 100K-2 | SXC 100K-2L | SXC 300K-2 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Weighing capacity [Max] | 6 kg | 15 kg | 30 kg | 60 kg | 150 kg | 300 kg | ||||
| Readability [d] | 0.0005 kg | 0.001 kg | 0.002 kg | 0.005 kg | 0.01 kg | 0.02 kg | ||||
| Dimensions weighing platform (W x D x H) | 300 x 240 x 104 mm | 400 x 300 x 107 mm | 500 x 400 x 107 mm | 400 x 300 x 120 mm | 500 x 400 x 124 mm | 600 x 500 x 136 mm | 650 x 500 x 136 mm | |||
| Reproducibility | 0.0005 kg | 0.001 kg | 0.002 kg | 0.005 kg | 0.01 kg | 0.02 kg | ||||
| Linearity | ± 0.0015 kg | ± 0.003 kg | ± 0.006 kg | ± 0.015 kg | ± 0.03 kg | ± 0.06 kg | ||||
| Ambient temperature | -10 °C - 40 °C | |||||||||
| Smallest piece weight when piece counting - normal conditions | 2 g | 5 g | 10 g | 20 g | 50 g | 100 g | ||||
| Display type | LCD | |||||||||
| Display digit height | 48 mm | |||||||||
| Material weighing plate | stainless steel | |||||||||
| Material platform | Stainless steel | |||||||||
| Display device cable length | 3 m | |||||||||
| Net weight approx. | 6 kg | 7 kg | 12 kg | 22 kg | 12 kg | 22 kg | 24 kg | 34 kg | 36 kg | |
| IP protection - display | IP68 | |||||||||
| IP protection - platform | no IP protection | |||||||||
| IP protection - load cell | IP68 | |||||||||
| Construction type of the scale | Single-range balance | |||||||||
| Product family | SXC | |||||||||
