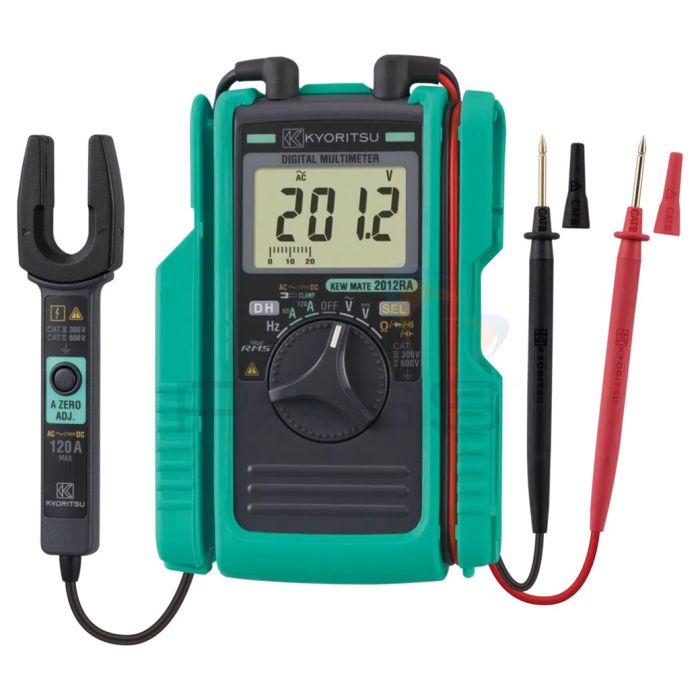

Kewtech KEW MATE 2012RA TRMS Digital Multimeter

The Kewtech KEWMATE 2012RA is a digital multimeter with a slim 12mm AC/DC clamp sensor and true RMS capability. The multimeter supports voltage and current measurements across AC and DC, with a maximum of 600V and 120A, respectively, while resistance measurements can reach 60MΩ. It also includes capacitance measurement up to 40μF, a diode test function, and a continuity buzzer that alerts users to low resistance paths below 35Ω.

Key Features

• Small in size - fits in your pocket
• TRMS version suitable for distorted wave forms
• Unique Open Jaw technology for AC/DC measurements
• AC / DC measurements make it ideal for solar installations and auto electricians
• The open jaws are thin and perfect for clamping wires even in tight spaces
• Small open jaw clamp is the best way to measure the current in a single circuit at the distribution board
• Unintrusive current measurements up to 120 A make it ideal for maintenance and troubleshooting of electrical installations
• With test lead cap to protect from short circuit accidents
• Auto-power save
• IEC 61010-1 CATⅢ 300V, CATⅡ 600V Pollution degree 2, IEC 61010-2-032, IEC 61010-031, IEC 61326-1, EN 50581(RoHS)
• 128(H) x 92(W) x 27(D) mm. 210g with batteries
• AC/DC clamp sensor
• True RMS measurements
• AC and DC voltage up to 600V
• AC and DC current up to 120A
• Resistance up to 60MΩ
• Continuity test buzzer (warns below 35Ω)
• Conductor size ø12 mm max
• Capacitance up to 40μF
• Diode test function
• Capacitance measurement
• Frequency measurement
• Continuity buzzer
• Bar graph indicator
• Data hold memory function
• Resistance measurement
• Relative function
• Auto and manual ranging
• Display: 6000 counts

What's Included?

• Multimeter
• R03(AAA) x 2,
• Instruction manual
