Lockout a wide variety of applications with multiple padlocks by using this dual-hole scorpio lockout hasp.
The hasp has two holes which can be easily fitted around different-sized areas (45mm and 20mm diameter). To install, simply move the holes apart using the scissor action, then clip around the point you need to lockout. Up to six padlocks can then be installed onto the hasp to ensure it is impossible to remove.
The Scorpio hasp is made from powder-coated tempered steel sheets, ensuring high durability with high resistance to rust.
Red Powder-Coated 'Scorpio' Dual-Locking Lockout Hasp Key Features
- Lockout hasp with two different-sized holes, suitable for use in multiple areas
- Scissor action - holes open easily and can be easily shut around what you need to secure
- Six padlock holes - each worker should attach their own padlock to the hasp when in use
- Tempered steel sheet design with red powder coating to ensure high visibility and rust resistance
- Openings of 45mm and 20mm

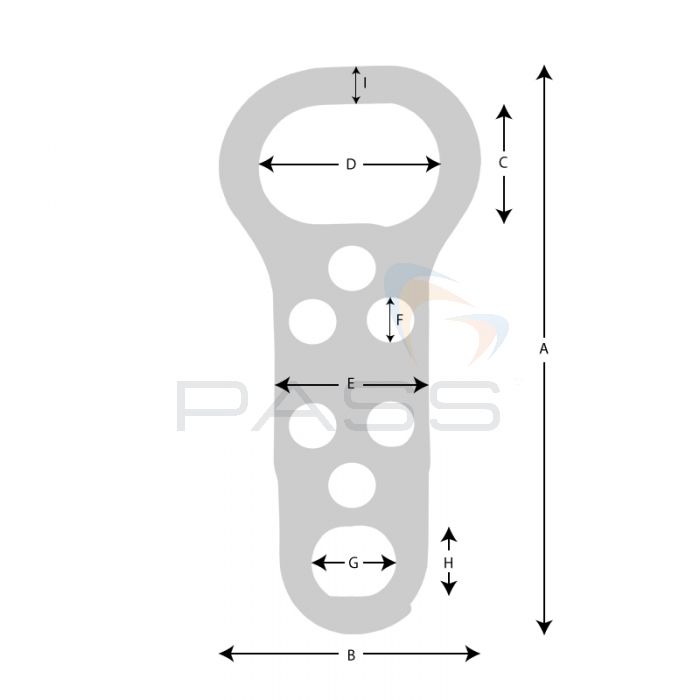

Hasp Dimensions
The following information is approximate and is based on the grey image above.
Parameter | Measurements |
A - Overall Height | 131mm |
B - Overall Width | 59mm |
C - Top Inner Lock Height |
31mm |
D - Top Innder Lock width |
41mm |
E - Hasp Width |
31mm |
F - Holes |
10 x 10mm |
G - Bottom Inner Lock Width |
22mm |
H - Bottom Inner Lock Height |
19mm |
I - Top of Shackle |
8mm |
J - Hasp Width/Depth | 5mm |
K - Lock Width/Depth | 4mm |
L - Number of Holes | 6 |
0 Reviews
Overall Rating
Additional Information
SKU | LT-SCORPIO |
---|---|
Manufacturer Part Code | ES-SCORPIO |
Country of Origin | India |
