Mark-10 G1071 Score Bend Fixture Set

This Mark-10 G1071 set of fixtures is used to produce a 90° bend in fibre board materials and plastics. The fixtures are compliant with TAPPI standard T829 for evaluating the relative quality of scores in corrugated containers. The fixture can be used with a choice of test stand and force gauge to create a complete score bend testing system. Upper and lower fixtures are easily removable.

These fixtures are designed for compatibility with a Mark-10 force gauge and test stand. The resulting value displayed on the force gauge will be a force value. The abstract score ratio as called for in T829 is not automatically calculated.

Key Features

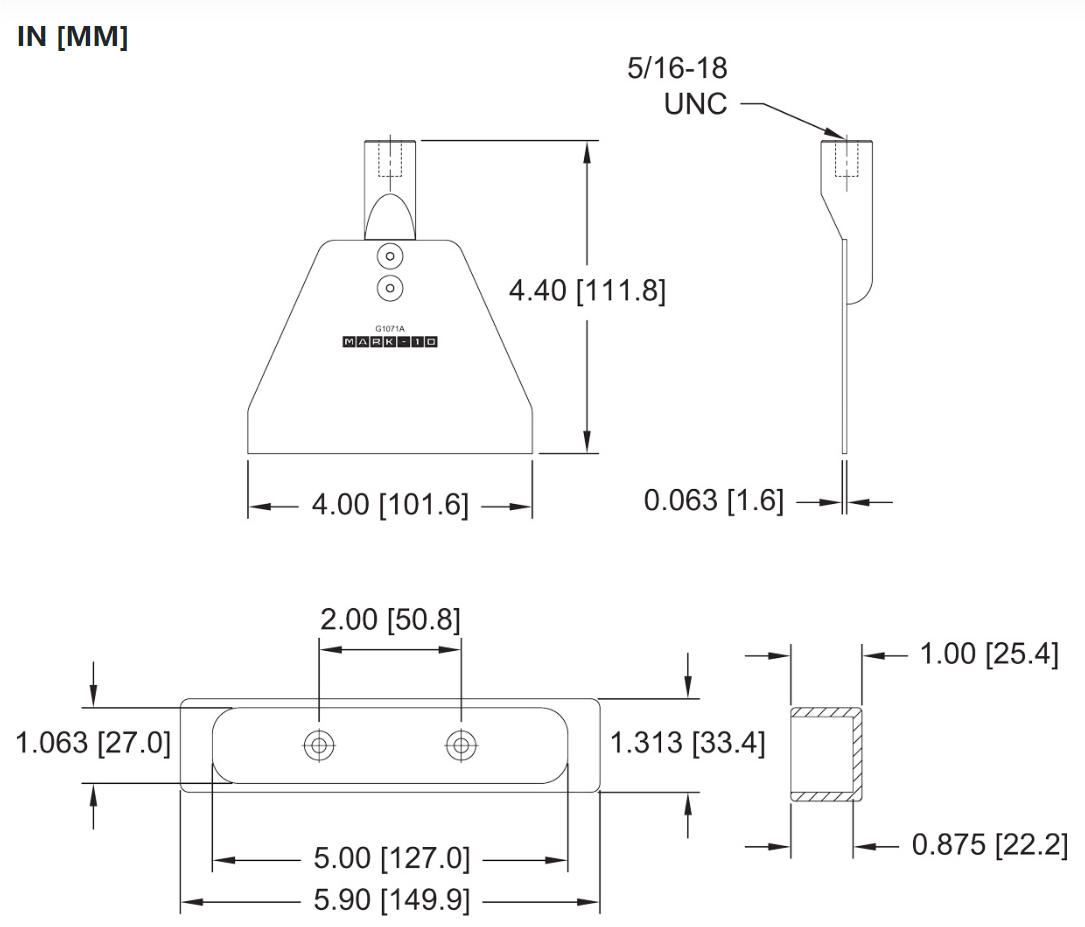

• Set of upper and lower dies produce 90° bend in corrugated board and plastics
• Meets the requirements of TAPPI T829
• Fixtures are easily removable
• Mounts directly to the following test frames (motorized test frames recommended):
  F105, F305, F505, F755, and F1505 test frames.
  ESM303, ESM750, ESM1500, ES30, TSC1000, and TSF test stands.
  Also compatible with models ES10/ES20 test stands when ordered with optional AC1060 mounting plate.
