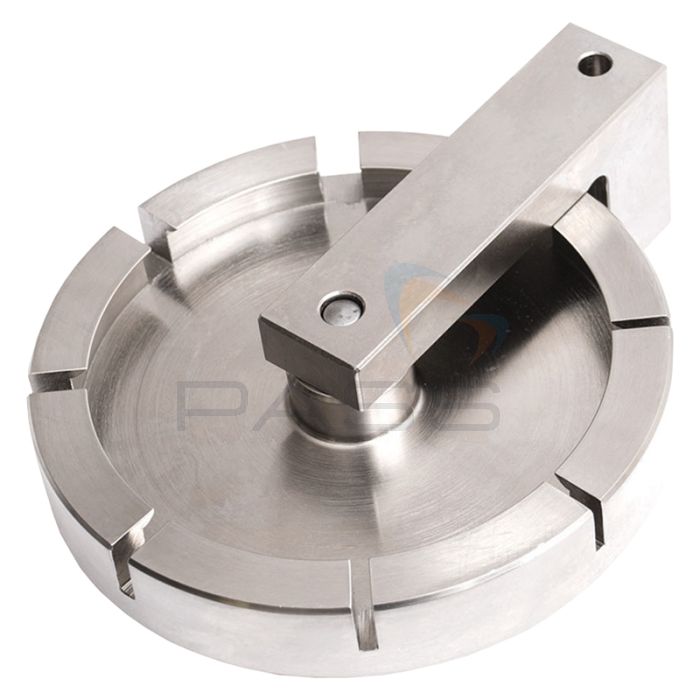

Mark-10 G1093 High Capacity Wire Terminal Grip, Eye End
- Integrated eye end mounting
- High Capacity Wire Terminal Grip
- Designed for high-capacity wire terminal pull tests
SKU
G1093
MPN
G1093
The Mark-10 G1093 grip secures wire terminals, cables, connectors, and other samples for high-capacity wire terminal pull tests. To operate, simply rotate the turret wheel to the desired size. For unique sample shapes and sizes, the wheel may be machined as required. Integrated eye end mounting.
Key Features
- Rotating turret with detents snaps to the desired slot width
- Integrated eye end mounting
- Rugged design

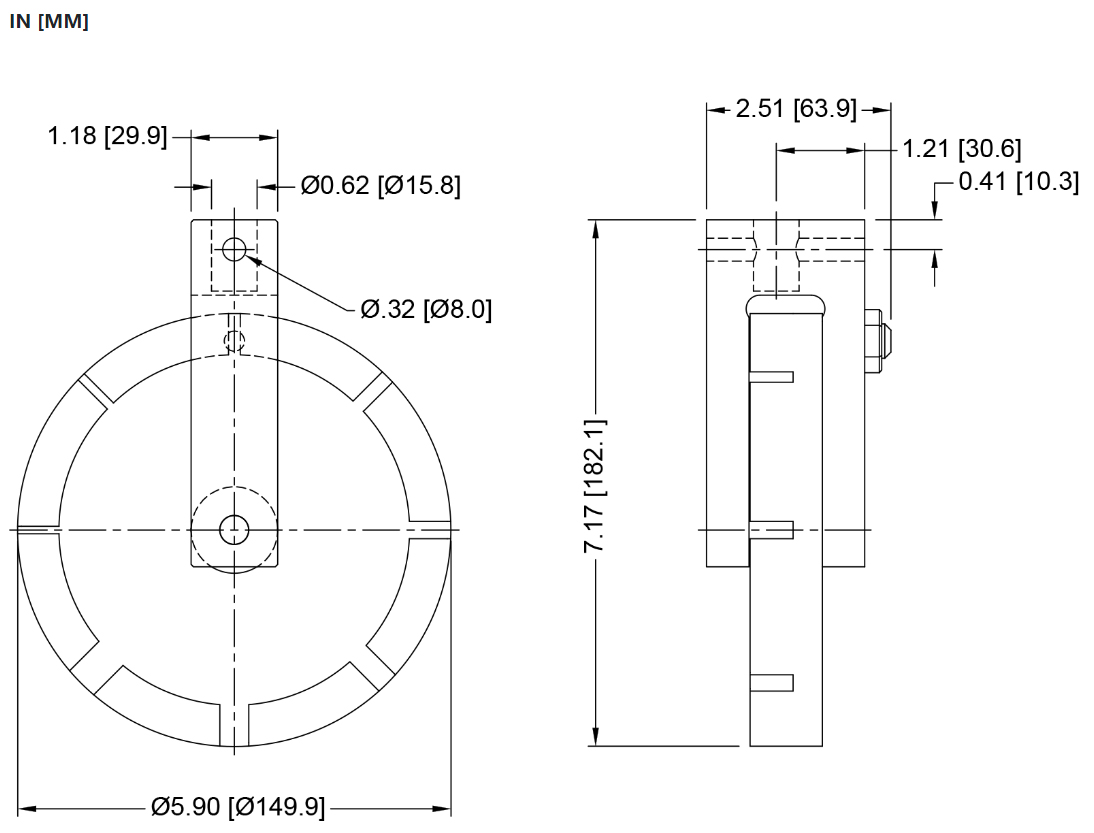

- Groove sizes [IN(MM)]: 0.08 (2.0), 0.12 (3.0), 0.16 (4.0), 0.20 (5.0), 0.24 (6.0), 0.31 (8.0), 0.39 (10.0), 0.46 (11.8)
- Capacity: 2,000 lbF [9 kN]
- Weight: 6.4 lb [2.9 kg]
Technical Information
Specification
Additional Information
SKU
G1093
Manufacturer Part Code
G1093
Mark-10 G1093 High Capacity Wire Terminal Grip, Eye End
£1,410.60
£1,692.72 inc vat
£1,410.60
£1,692.72 inc vat
