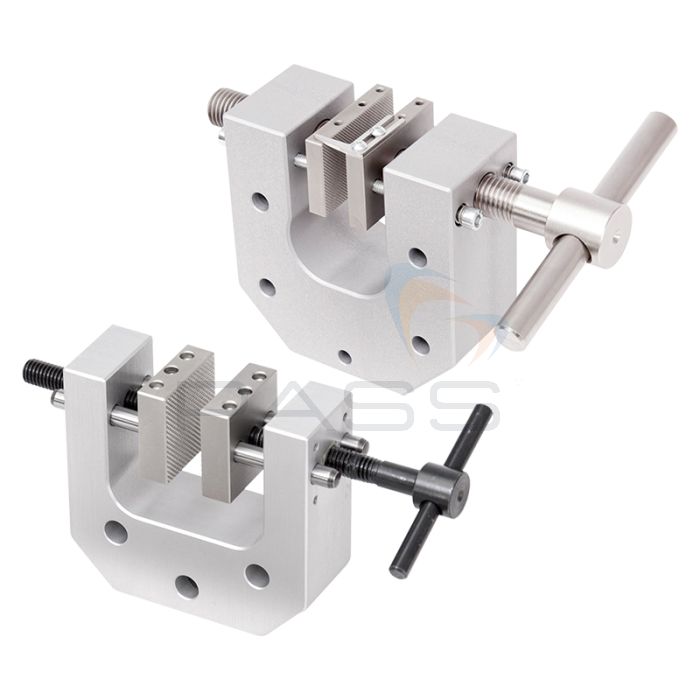

The grips are ideal for general tensile and pull testing applications up to 200 lbF (1,000 N) for the G1101 & 2,000 lbF (9 kN) for the G1100. Both grips have pyramidal jaw faces and generous clearance effectively secures a wide range of sample materials and sizes.
Both grips also include an integrated eye-end mounting and require an eye-end adapter to mount to Mark-10 force gauges or force sensors, and test stands. Available in medium (G1101) or large (G1100).

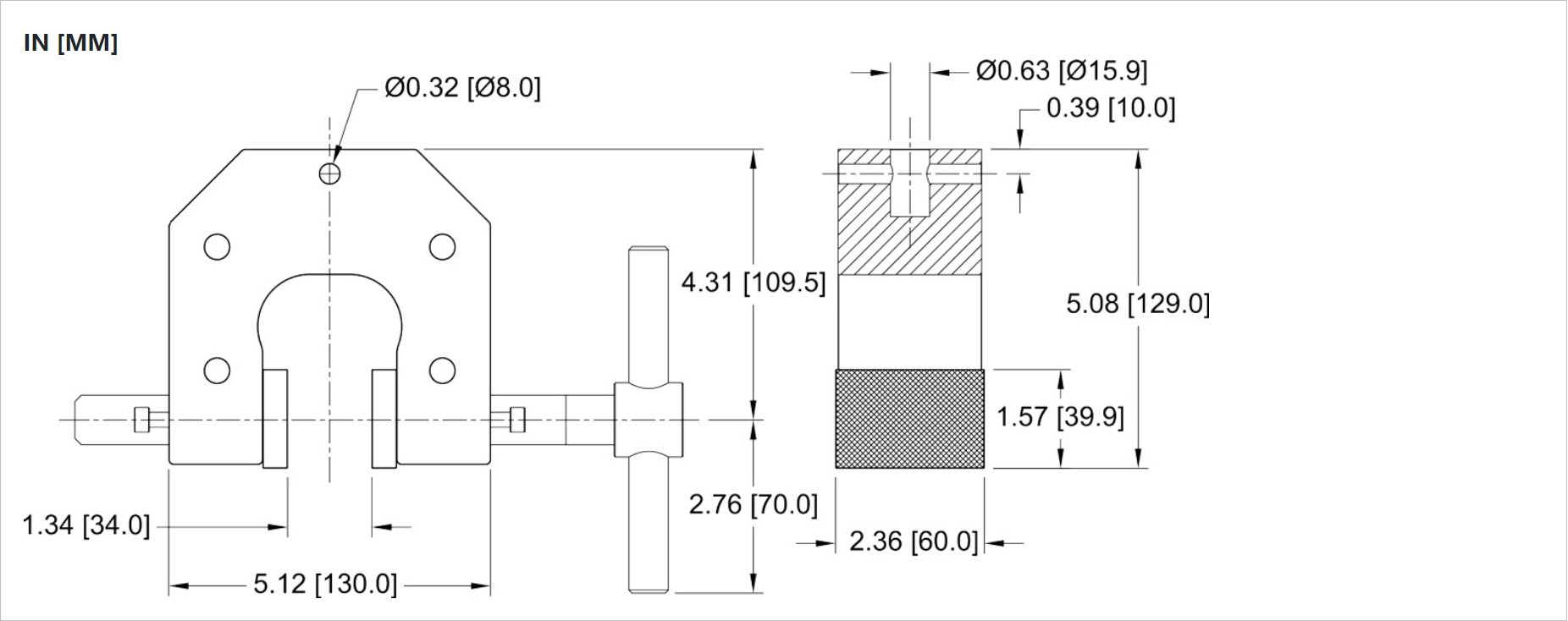

G1100
This rugged grip is ideal for general tensile and pull testing applications up to 2,000 lbF (9 kN). Includes an adjustable stop for consistent sample placement between the jaws.

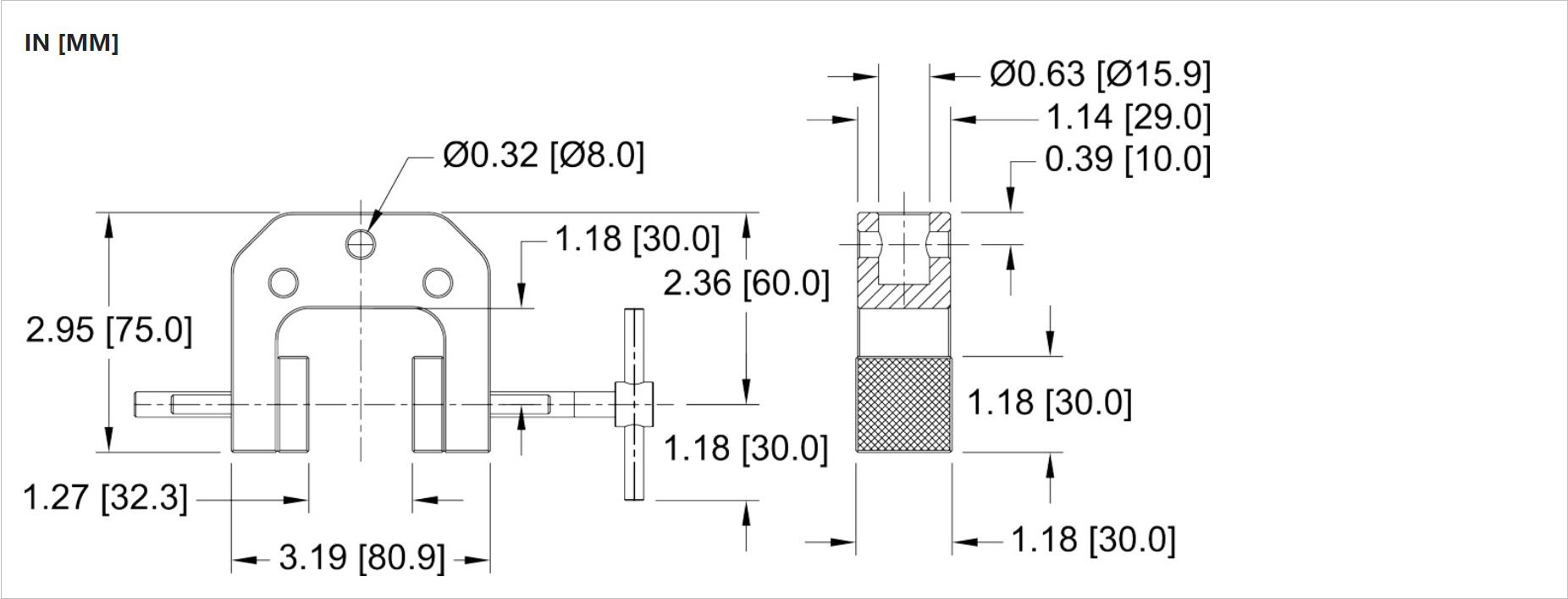

G1101
This grip is ideal for general tensile and pull testing applications up to 200 lbF (1,000 N).
Product Ranges
- MK10-G1100 Parallel Jaw Grip, Eye End, Large
- MK10-G1101 Parallel Jaw Grip, Eye End, Medium
SKU | G1100/G1101 |
---|
