Mark-10 TST Test Stand, Torque, Hand Wheel-Operated, 100 lbFin / 11.5 Nm, Vertical

The Mark-10 TST is ideal for a wide variety of torque testing applications up to 100lbFin, including closure torque testing, fastener torque testing, and more. Smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient.

The vertical stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resettable angle indicator. The versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures.

Key Features

• Smooth hand wheel operation
• Torque plate with tapped holes for grip and fixture mounting
• Lever-operated slider for engaging and disengaging samples
• Angle dial with 2° resolution
• Maximum torque: 100 lbFin (11.3 Nm)
• Maximum angular travel: no limit
• Throat depth: 4.10" (104 mm)
• Angular rate: 12° / wheel rev.
• Maximum slider travel: 15.5" (394 mm)
• Slider travel rate: 1.047" (26.6 mm)/lever rev
• Weight: TST: 33 lb [15 kg]

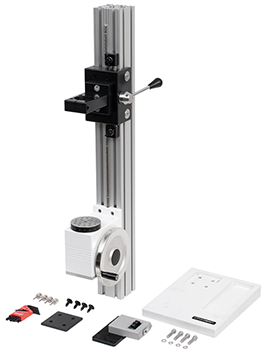

What's Included?

• (1) TST test stand
• (4) Thumb screw for indicator
• (1) Allen wrench set
• (1) Base
