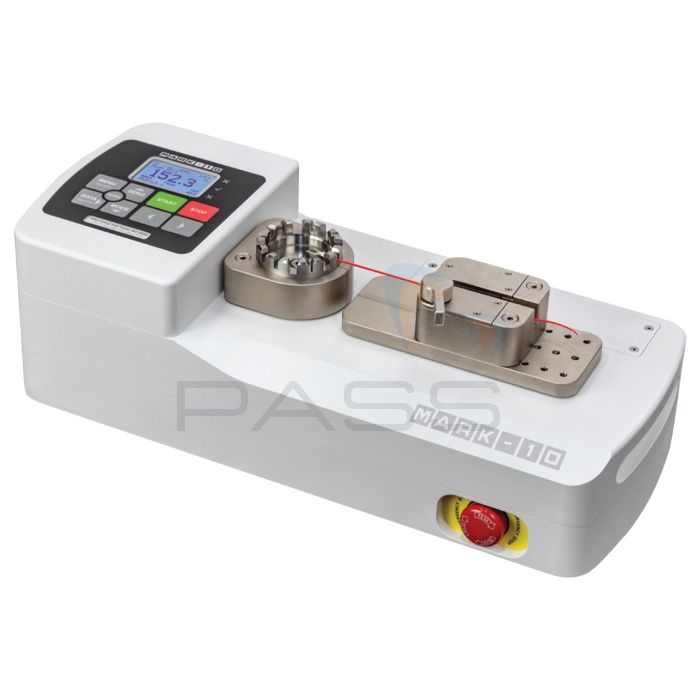

Mark-10 WT-205M Wire Crimp Pull Tester
- Selectable test speed
- Auto-reverse
- Pass / fail indicators
SKU
WT-205M
MPN
WT-205M
The Mark-10 WT-205M Motorised Wire Crimp Pull Tester measures crimped wire terminations following UL, ISO, ASTM, SAE, and MIL standards. Crafted for destructive and non-destructive pull tests, it measures crimp pull forces up to 200 lbF (1 kN) with exceptional accuracy and repeatability.
The WT-205M supports multiple test modes, including pull-to-break, pull-to-load, and hold-at-load. It provides consistent speed and force application and reduces human error while improving compliance with UL 486A/B testing procedures.
This wire crimp tester has a standard adjustable terminal fixture for wire sizes up to AWG 3 (6.3 mm), auto-save on break, auto-reverse, auto-zero, and a self-tightening wedge grip. It also has storage for up to 2,000 measurements and integrated pass/fail indicators. Data transfer is straightforward via USB, RS-232, Mitutoyo (Digimatic), or analogue outputs, while MESUR Lite software (included) permits real-time data acquisition and one-click Excel export.
Key Features
- Measures real-time and peak force values
- Selectable test speed, w/high speed approach and reverse
- Auto-reverse at sample break or load
- USB, RS-232, Mitutoyo (Digimatic), and analogue outputs
- Automatic reverse / output / data storage / zeroing upon sample break helps automate testing processes
- 2,000-point data memory with statistics and output
- Password protection prevents unauthorized changes
- Pass/fail indicators, audio alerts, and outputs
What's Included?
- Tester
- USB cable
- Power cord
- Certificate of calibration without data
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Capacity x Resolution: | 200 x 0.1 lbF | 3200 x 2 ozF | 100 x 0.05 kgF | 1,000 x 0.5 N | 1 x 0.0005 kN |
| Accuracy: | ±0.2% of full scale |
| Wire gauge range*: | AWG30 - AWG 3* [0.01 - 0.25 in (0.3 - 6.3 mm) dia.] |
| Sample length range: | 2.1 in [53.3 mm], excluding termination |
| Max elongation: | 2.3 in [58.4 mm] |
| Speed range: | Test speed: 0.4 - 12.0 in/min [10 - 300 mm/min] Approach/reverse speed: 12.0 - 25.0 in/min [300 - 625 mm/min] Return speed: 12.0 -45.0 in/min [300 - 1,125 mm/min] |
| Speed setting accuracy: | ±0.2% |
| Speed variation with load: | ±0% [Stepper motor driven] |
| Power: | Universal input 80-240 VAC, 50/60 Hz |
| Sampling rate: | 7,000 Hz |
| Outputs: | USB / RS-232: Configurable up to 115,200 baud. Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analogue: ±1 VDC at capacity, ±0.25% of full scale. General purpose: Three open-drain outputs, one input. Set points: Three open drain lines. |
| Overload protection: | Motor stops at 120% of the full scale of the force sensor (display shows “OVER” at 110% and above) |
| Weight: | 28 lb [12.7 kg] |
| Environmental requirements: | 40 - 100°F, max. 96% humidity, non-condensing |
Document Downloads
Mark-10 WT-205M Wire Crimp Pull Tester Datasheet
Mark-10 WT-205M Wire Crimp Pull Tester User Manual
Mark-10 WT-205/M Wire Crimp Pull Tester Quick Start Guide
