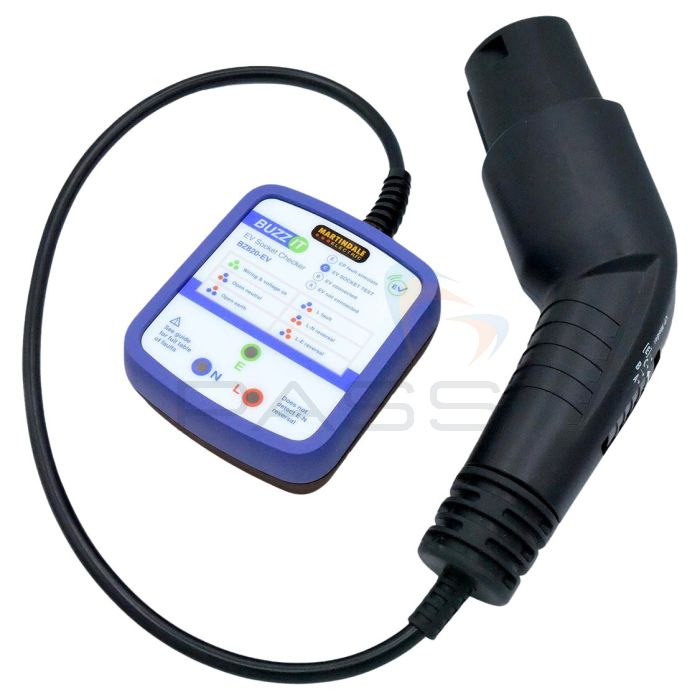

Martindale BZ820-EV EVSE Socket Tester

The Martindale BZ820-EV confirms the safety and wiring integrity of Type-2 electric vehicle charging points. It can detect an impressive 28 different wiring faults and provides immediate visual and audible feedback. Three flashing green LEDs and a continuous tone confirm correct polarity and voltage supply. Any wiring issues, such as socket polarity or earth faults, are indicated by red LEDs and a warning buzzer.

The BZ820-EV connects directly to a Type-2 EV charging socket and has a CP (Control Pilot) mode slider that allows users to simulate different vehicle connection states:

• Mode A - No vehicle connected
• Mode B - Vehicle connected but not ready to charge
• Mode C - Vehicle connected and ready to charge (used for functional testing)
• Mode E - Simulates a CP signal failure to verify that the charger appropriately blocks charging

LED indicators on the integral plug display the CP signal status and confirm if the line voltage (L1) is present.

Key Features

• Quick & easy EVSE socket testing
• LEDs and a buzzer indicate 28 fault conditions
• High/low supply voltage indication
• Type-2 plug connects directly to the EVSE charging point
• Fast and easy testing for the correct wiring of L, N and PE
• The 4-position switch simulates CP mode A, B, C and E
• The Type-2 Connector LEDs indicate charger CP mode and L1 present
• Bright LEDs with simple fault codes

What's Included?

• Socket tester
• User manual
