Martindale TEK500 Microwave Leakage Detector Kit

Martindale TEK500 Microwave Leakage Detector Kit
sku: MARTEK500
MPN: MARTEK500

Free UK Delivery On Orders Over £40
  • Self-test function built in
  • Digital thermometer and beaker included
  • Instruction manual contains calculations

Was: £189.00
You Save: £28.35
£160.65 Incl. VAT £192.78
Under 5 In Stock
Members earn 321 points

Do you have a question or found it cheaper? Contact us

Description

Martindale TEK500 Microwave Leakage Detector Kit Details

Suitable for use with both commercial and domestic microwave ovens, the Martindale TEK500 allows measurements of overall microwave leakage and complies with all national standards for permitted exposure levels.

The device is used by passing it over the microwave oven in order to check for overall levels of leakage present in the oven. This microwave leakage detector uses LED indication to show the status of detected leakage and will display a yellow LED when leakage levels at 1mW/cm2 are detected (below safety limit). When dangerous levels are detected at 5 and 10mW/cm2 the device will emit an audible tone and shine a red LED to indicate that current leakage levels are above the recommended safety limit.

This microwave leakage detector kit also ships ships as standard with a beaker and a digital thermometer to allow users to carry out measurements of internal oven heat, allowing the user to determine easily if the oven is heating correctly.

The Martindale TEK500 is recommended for use at 50mm away from the targeted microwave oven.

Martindale TEK500 Microwave Leakage Detector Key Features

  • Small, lightweight tester
  • Audible and visual indication of leakage levels
  • 2450MHz ± 25Mhz detection frequency range
  • BS5175 compliant

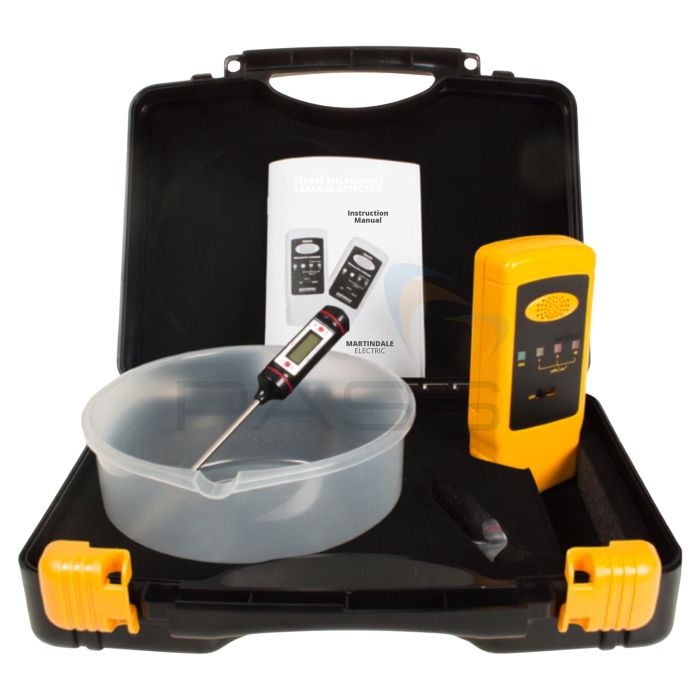

Full List of Products Included

  • Martindale TEK500 Microwave Leakage Detector
  • Beaker
  • Digital Thermometer
  • Carrying Case
  • Instruction Manual
Technical Specs

Part Code: MARTEK500

Martindale TEK500 Technical Specifications

Compliance BS EN 6033-2-25: 2002 and BS EN 60335-2-90: 2002
Supply 9V Alkaline Battery, MN1604 or Equivalent (Included)
Frequency of Operation 2450 ± 25MHz
Power Density Range ±1dB for Planewave of all Polarisations
Cardinal Points >1mW/cm2, >5mW/cm2, 10mW/cm2
Response to Step Input 2-3 Seconds to Reach 90% of Steady State Indication
Overload Capacity 50mW/cm2
Indicators LED (Green) - Battery OK
LED (Yellow) - 1mW/cm2 - Acceptable Microwave Leakage Below Safety Limit
LEDs (Red) - 5 and 10mW/cm2 and Audible Tone - Hazardous Microwave Leakage Above Safety Limit
Cone Spacer Prescribed Test Distance of 50mm is Achieved When Cone Tip is in Contact with Appliance
Operating Temperature -5 to 40°C
Case Yellow FR ABS
Dimensions 145 x 64 x 30mm
