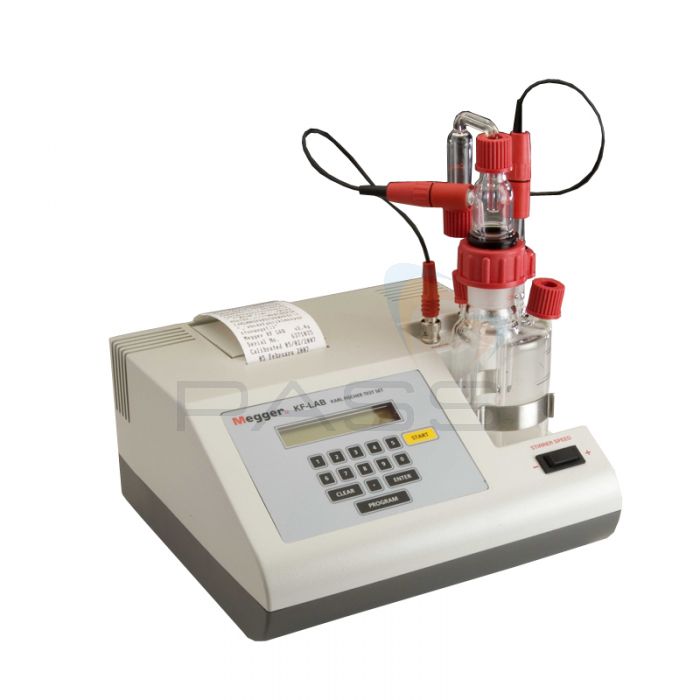

Megger KF-LAB MkII Laboratory Coulometric Karl Fischer Oil Test Set

Reward Points (?)

Logged in, worth £125.80, read more.

£7,548.00 £6,290.00
Advice & Support
Price Match Request

Evaluate the moisture content of a wide variety of oil samples with the Megger KF-LAB MkII.

Optimised with coulometric Karl Fischer titrimetry, the KF-LAB MkII can be used to perform titration on samples with specific gravities from 0.60 to 1.40 and is compatible with oil samples of different sizes. A dedicated function is also included for analysising insulating oils with an SG of 0.875 (ideal for measuring water content in a wide variety of different materials, including transformer insulating oils).

This oil tester uses Megger's advanced ACE (automatically compensated error) system to filter out inaccuracies that may be caused by changes in electrolysis cell resistance, ensuring that every test is as accurate as possible. All measurements are carried out to the industry standard Karl Fischer coulometric titrimetry in accordance with ASTM D1533, BS EN 60814: 1998 and IEC60814: 1997.

Suitable for use in both indoor and outdoor conditions, the KF-LAB MkII is suitable for being powered from mains, via an internal rechargeable battery or via a 12V car adapter.

Megger KF-LAB MkII Oil Tester Key Features

  • Coulometric Karl Fischer titration for accurate measurements of moisture content in oil samples
  • Patented ACE control system filters out inaccurate results caused by changes in electrolysis cell resistance
  • Integrated printer - instantly print out your results out in the field (can be disabled)
  • Results can be calculated in ppm,, & and mircrograms
  • Suitable for titration of samples with specific gravity from 0.60 to 1.40
  • Default optimised setting for analysing insulating oils with a specific gravity of 0.875
  • Suitable for use in outdoor conditions
  • Can be powered by mains, internal rechargeable battery or in a vehicle
  • Free data capture and retrieval software included
  • Two-pin platinum electrode sensor
  • Maximum titration speed of 2mg per minute

What's Included?

  • Titration Vessel
  • Detector Electrode
  • Generator Electrode
  • Drying Tube
  • Carrying Case
  • Power Pack
  • Car Adapter
  • Injection Septa
  • Glass Syringe (1ml)
  • Luer Needle
  • Bottle of Molecular Sieve
  • Strirrer Bar
  • Funnel
Accessories related to this product:
Part Code6111-774

Megger KF-LAB MkII Technical Specifications

Titration Method Coulometric Karl Fischer Titration
Electrolysis Control Patented ACE control system
End Point Detection AC polarisation
End Point Indication Visual display/ printout / acoustic beep
Type of Sensor Two pin platinum electrode
Measuring Range 1μg - 10mg water
Moisture Range 1ppm to 100%
Max Sensitivity 0.1μg
Max Titration Speed 2mg per minute
Max Current 400mA
Drift Compensation Automatically controlled
Precision 10-100μg ± 3μg, 100μg-1mg ± 5μg, above 1mg ±0.5%
Method Storage 10 programmable methods
Sample ID Number User programmable
Display Format μg, mg/kg, ppm, %
Analogue Output Built-in printer
Print Format μg + mg/kg, ppm, %
Datalogging USB, RS232 and results manager software
Calculation Modes Weight/weight
Weight/dilution ratio
User programmable
Statistics Up to 99 runs
User programmable
Start Delay Time 0-30 mins selectable
Minimum Titration Time 0-30 mins selectable
Language English, French, Spanish, Portugese, Dutch, Hungarian
Stirrer Speed Microprocessor controlled
Calendar/Clock Analysis time and date print out
Keypad/User Controls Non-tactile membrane/display prompted menu
Display 40 character alphanumeric backlit display
Printer 42 character high speed thermal printer
Carry Case Standard
Power Supply 90-264VAC, 57-63 Hz, 12V DC car adapter/internal battery
Power Consumption 45W
Battery Life 8 hour running time
Battery Charging 14 hours after average use
Battery Low Display and print out indication
Humidity 5 to 95% RH
Storage Temperature -10 to 85°C
Dimensions 250 x 245 x 120mm
Weight 3kg (without carrying case)
