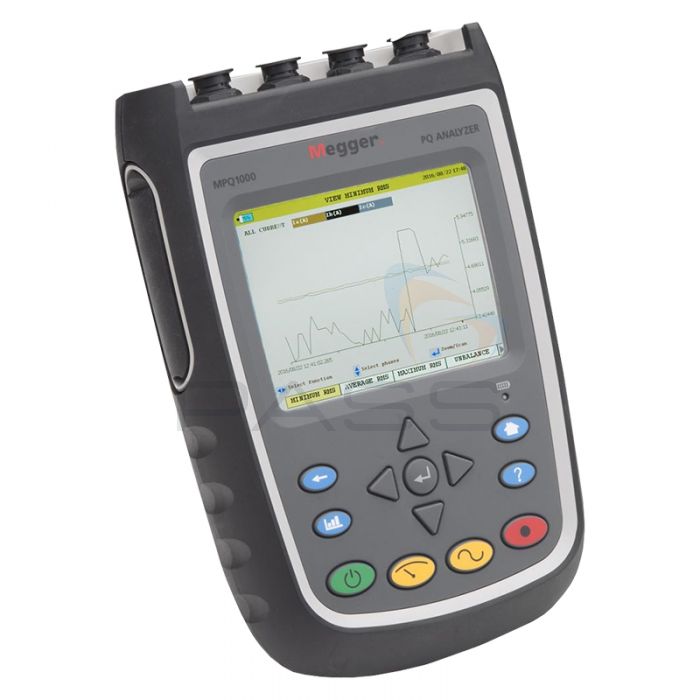

Megger MPQ1000 3-Phase Handheld Power Quality Analyser

Description

The Megger MPQ1000 Three-Phase Handheld Power Quality Analyser is available in seven kits, including a number of new kits introduced for 2019; please see the 'What's Included?' section for an overview of the items included in each kit.

About the Megger MPQ1000 Power Analyser

Looking for an advanced, handheld solution for measuring power quality in your premises?

Megger's MPQ1000 is a truly portable, comprehensive power analysis tool which can calculate a wide variety of power and electrical factors, stores all the data on an included SD card and is packed with features and functionality.

The MPQ1000 is designed for use on three phase systems and is excellent for compliance testing, power factor studies, load studies and load balancing, billing verification, substation monitoring, capacitor bank sizing, transformer analysis and de-rating, motor troubleshooting and inrush testing, switchgear and component failure, tripping breakers, equipment tripping offline, dimming/surging lighting, lamp flicker analysis, neutral overheating and solar (PV) analysis. For a quick introduction to this analyser, please see the following video.

Megger MPQ1000 | Handheld Power Quality Analyzer

Wide Range of Measurement Capabilities

Whether you want to view RMS data, waveforms, perform simple electrical measurements or do complicated power studies, the Megger MPQ1000 is ready for the job.

This power quality analyser is ideal for monitoring electrical parameters and performing waveform studies; the MPQ1000 can be used for a wide variety of different measurements, including:

RMS voltage/current
DC voltage
DC current (requires DC CT Probe)
Phase-to-phase voltage
Power parameters - including kW, kVAR, kVA, DPF and TPF
Voltage sag and dips/swells
Phase angles
Current sags and dips/swells
Transients down to as low as 1μsec
IEC unbalance
Frequency
Event waveform capturing
Total harmonic distortion
Total demand distortion
Harmonics
Inter-harmonics
Energy measurements - including kWH, kVARH and kVAH
Mains signalling
Harmonic direction
IEC flicker
Rapid voltage change
Phase angle deviation
ANSII unbalance
Timed waveform capture

Watch the video below for an overview of the Megger MPQ1000's test procedure.

MEGGER MPQ1000 RUNNING A TEST

This instrument is easy-to-setup via the free Megger PQ Software (please see the video below). As this software is available for free, a dongel or license is not required.

MEGGER MPQ1000 BASIC SET UP

Analysis Made Easy with Automatic Benefits

The Megger MPQ1000 power analyser is designed for use with optional CT current probes (included in the Silver kit or sold separately). When connected, the analyser will automatically identify which clamps are connected, recognise their range and compensate accordingly.

To ensure correct setup when measuring, the MPQ1000 also has a connection verification setting - this means your connections will always be configured correctly and you'll always get the data you exactly need without any wasted data. For an overview of the Megger MPQ1000's configuration verification feature, please see the following video.

MEGGER MPQ1000 CONFIGURATION VERIFICATION

Ready for Extensive Studies Thanks to Huge SD Card Memory

As standard the MPQ1000 power analyser ships with a 32GB SD card; this stores a huge amount of data directly into the analyser's memory, ready for further analysis on a PC at a later date using Megger's PQ Power Quality Analysis Software.

Thanks to such large memory storage, the MPQ1000 is perfectly suited for long, extended studies over several days.

When you're ready to download to PC, the MPQ1000 includes multiple communications modes to send data. These include a USB connection, Ethernet connection, USB stick or the SD card itself.

Alternatively, as the Megger MPQ1000 Power Analyser also features built-in data analysis capabilities, measurements may be analysed on-site; please see the following video for further information.

MEGGER MPQ1000 DATA ANALYSIS

Other Key Features

There's even more to the Megger MPQ1000:

CAT IV 600V rated - safe for use in all applications
Full-featured, class-A compliant testing on all parameters
Smart configuration using Megger PQ software
Phase angle stability measurements let you easily find tricky phasing problems caused by multiple erratic sources
Timed waveform capture allows for the taking of PQ events and period waveforms at the same time
Easy, intuitive menus for simple navigation and operation

What's Included?

Product	Kit
Product	1009-752 - Basic Kit	1009-753 - Silver Kit	MPQ1000-S-KIT-PLUS - Silver Plus Kit	MPQ1000-G-KIT - Gold Kit	MPQ1000-G-KIT-PLUS - Gold Plus Kit	MPQ1000-P-KIT - Platinum Kit	MPQ1000-P-KIT-PLUS - Platinum Plus Kit
Megger Three-Phase Handheld Power Quality Analyser	✔	✔	✔	✔	✔	✔	✔
Voltage Leads	✔	✔	✔	✔	✔	✔	✔
SD Card	✔	✔	✔	✔	✔	✔	✔
USB Cable	✔	✔	✔	✔	✔	✔	✔
Ethernet Cable	✔	✔	✔	✔	✔	✔	✔
Universal Power Adapter	✔	✔	✔	✔	✔	✔	✔
Soft Carry Bag	✔	✔	✔	✔	✔	✔	✔
3x Fused Adapters	✔		X	X	X	X	X
Hanging Strap	✔	✔	✔	✔	✔	✔	✔
4x Plunger Clips	X	✔	✔	✔	✔	✔	✔
Megger MCCV6000-18 CT (4-range, flex 18cm ID)	X	✔x3	✔x4	X	X	X	X
Megger MCCV6000-27 CT (4-range, flex 27cm ID)	X	X	X	✔x3	✔x4	X	X
Megger MCCV6000-37 CT (4-range, flex 37cm ID)	X	X	X	X	X	✔x3	✔x4

Key

✔ = Included

X = Not Included

Tech Specs

Megger MPQ1000 Power Quality Analyser Technical Specifications

Input Power	120/240 V, 50/60 Hz
Input Power	International power adapter supports US, UK, EU and Australian plugs
Battery	NiMH battery pack (field replaceable)
	Discharge time – up to 8 hours
	Recharge time – 3 hours
Data storage	External SD card (32GB max)
Communication	USB communications
	Ethernet communications: network communications.
	Wireless communications with off-the-shelf bridge.
	USB stick - transfer data file to USB. Transfer setup configurations to and from USB stick. Perform firmware upgrades using USB stick
	SD card: automatically writes data to SD card; no manual transfer required. Transfer setup configurations to and from SD card. No tool needed to access the SD card.
Environmental
Operating	20° C to 50° C (-4° F to 122° F)
Storage	-30° C to 60° C (-22° F to +140° F)
Relative humidity	0-95% non-condensing
Altitude <2000 m	1000V CAT III / 600 V CAT IV
Altitude 2000 m - 5000 m	600 V CAT III / 300 V CAT IV
Case	IP54 enclosure
Case	Kensington lock
Display	Backlit 11.5 cm x 8.5 cm color VGA
	Resolution 5.56 pixels per mm (640 x 480 pixels, 115.2 x 86.4 mm)
	Refresh rate: 1-3 sec
PQ Events
Dips / sags	Triggers off of voltage and current. IEC61000-4-30 compliant
Swells	Triggers off of voltage and current. IEC61000-4-30 Compliant
Sub-cycle distortions	Triggers off of voltage and current. IEC61000-4- 30 compliant.
Transient detection	1 μsecond. Triggers off of first 3 voltage channels. IEC61000-4-30 compliant
THD	Triggers off of voltage and current. IEC61000-4-30 Compliant
Rapid Voltage Change (RVC)	Triggers off of first 3 voltage channels. IEC61000-4-30 compliant.
Phase shifts	Trigger event when a phase shift occurs between the voltage channels. Record date and time, duration and waveforms of all enabled channels. Phase shift user selectable down to 1 degree.
Waveform capture of events	Capture waveforms on all enabled channels when an out of limits event occurs. Waveforms programmable with up to 9 pre-trigger cycles and 99 post-trigger cycles.
Timed waveform capture	Captures waveforms periodically on all enabled channels. Waveform capture interval programmable down to 1 cycle. Programmable number of cycles to be captured up to 99 cycles. Event triggered waveforms and timed triggered waveforms simultaneously
Mains signaling events	Two selectable frequencies and amplitudes. Selectable time interval. Measured per IEC61000-4-30. Captures waveforms on all enabled channels when a mains signaling event occurs. Waveform programmable with up to 9 pre-trigger cycles and 99 post-trigger cycles.
Event Flagging	Measured per IEC61000-4-30.
Motor Inrush	Records RMS, Power and PF at a 1 cycle resolution. Capture inrush current during motor start up. Support both three-phase and single-phase motors
Real Time Data
Scope Mode	View waveforms in scope mode
	Freeze, zoom and pan
	View Vector scope
	View ANSI unbalance
	View IEC unbalance
	View harmonic in real time
	View inter-harmonics in real time
	View RMS voltage and current in real time
DMM Mode	View IEC unbalance
	View Harmonic in real time
	View RMS voltage and current in real time
	View THD in real time
	View active power in real time
	View reactive power in real time
	View apparent power in real time
	View DPF in real time
	View TPF in real time
	View flicker in real time
Compliance	IEC61000-4-7
	IEC61000-4-15
	IEC61010-1
	IEC60529
	IEEE1453
	RoHS2 Directive 2011/65/EU
	IEC61000-4-30 (Class A)
	IEC61000-4-27
	IEC61326
	MIL-STD-810-G
	CAN/CSA-C22.2 No. 1010.1-92
	IEEE1459
Dimensions	269 mm x 178.4 mm x 70.7 mm (10.6 in. x 7.0 in. x 2.8 in.)
Weight	Standard unit: 1.82 kg (4 lbs)
Sampling
Resolution	16 bit analog to digital converter on 8 channels
Max sampling speed	1 MHz max
Max RMS sampling	17,664 per channel max
PLL synchronization	42.5 Hz to 69 Hz
Real Time Clock	Accuracy ±20 ppm
Trended Parameters
Voltage - 4 voltage channels
Voltage range	0 to 1000 V range AC RMS DC - Measures AC & DC simultaneously (common neutral required)
Voltage accuracy	0.1% per IEC61000-4-30
Voltage ratios	Adjustable voltage ratios for measuring secondaries. (.0001 through 9999)
Resolution	16 bit
Crest factor	1.5
Max pk voltage	1628 V / 2500 V
Voltage lead set	5 voltage leads, 6 ft (2 m) in length. Safety banana leads. Removable alligator clips. Optional plunger clips. Set of color bands for customizing color codes. Safety green/yellow ground lead included.
Fused adapter	In line with voltage leads to provide fuse protection (optional)
Current Channels - 4 current channels
Current range	0 to 6000 A (CT dependent)
Current ratios	Adjustable current ratios for measuring secondaries (000.1 through 9999)
Current accuracy	±0.5% of reading ±0.05% of full scale
Resolution	16 bit
Crest factor	4.0
Power and Energy
Active power (KW)	Per IEEE1459
Reactive power (KVAR)	Per IEEE1459
Apparent power (KVA)	Per IEEE1459
Energy parameters (KWH, KVARH, KVAH)	Per IEEE1459
Displacement power factor range	-1.0 to +1.0
Displacement power factor accuracy	= ±0.02 + CT error
True power factor range	0.0 to +1.0
True power factor accuracy	= ±0.02 + CT error
Power configurations	11
Aggregation window	1 cycle to 1 hour - fixed and sliding windows
Unbalance	ANSI & IEC methodology per IEC61000-4-27
Total Harmonic Distortion (THD)	Per IEC61000-4-30
Total Harmonic Distortion (THD)	per IEC61000-4-7
Harmonics	0 through 50th continuous
Inter-harmonics	0 through 50th continuous
Total Demand Distortion (TDD)	Per IEEE519
Frequency	Per IEC61000-4-30
Flicker	Per IEC61000-4-15
Functions	Auto identify CT and CT range setting
	Configuration verification - Display if unit is connected incorrectly.
	On board analysis - Perform data analysis on unit. Compare recorded values against customizable templates.
	Waveform analysis through the 128th order
	Clock hour orientation - Time sync recording to nearest interval.
	Scheduled run - Select start and stop time of recording. Instrument then automatically begins recording.
	On board configuration - Ability to configure recording parameters from front panel of instrument.
	Auto Setup - Ability to have instrument automatically configure itself.
	On board naming of data and setup files -Ability to name data and setup files from the front panel of the instrument.
	Supported languages: English, Spanish, French, German & Czech
On Board Instrument Preference Settings	Selectable Traces Colours
	Selectable Short Cut Buttons
	Selectable Time Out Period
	Chart Grid ON / OFF
Measurement Parameters	RMS voltage
	RMS current
	Sags / dips / swells
	Transients (1 msec) (±2697 V)
	Sub-cycle events 64 msec (notching, noise)
	Rapid voltage change
	Phase angle stability
	IEC Unbalance
	ANSII Unbalance
	Power (KW, KVAR, KVA, DPF & TPF)
	Energy (KWH, KVARH & KVAH)
	Power Factor (1 to 0 to -1)
	Phase Angle
	THD/TDD
	Harmonics
	Inter-Harmonics
	Power Harmonics
	Harmonic Direction
	Flicker
	Waveform Capture
	Frequency
Software	Windows compliant (Win 7, Win 8 and Win 10)
