Micronics PF333 Portaflow Portable Ultrasonic Clamp-on Flow & Heat Meter (Datalogger, RS232/USB, TS) - Choice of Model
The PF333 Portaflow range brings simplicity to the non-invasive measurement of liquid flow and hydronic energy. Portaflow offers the user quick and accurate flow and energy measurement with its easy-to-follow menu and simple setup. Results can be achieved within minutes of opening the case!
Compact, rugged, and reliable, the Portaflow range has been designed to provide sustained performance in industrial environments.

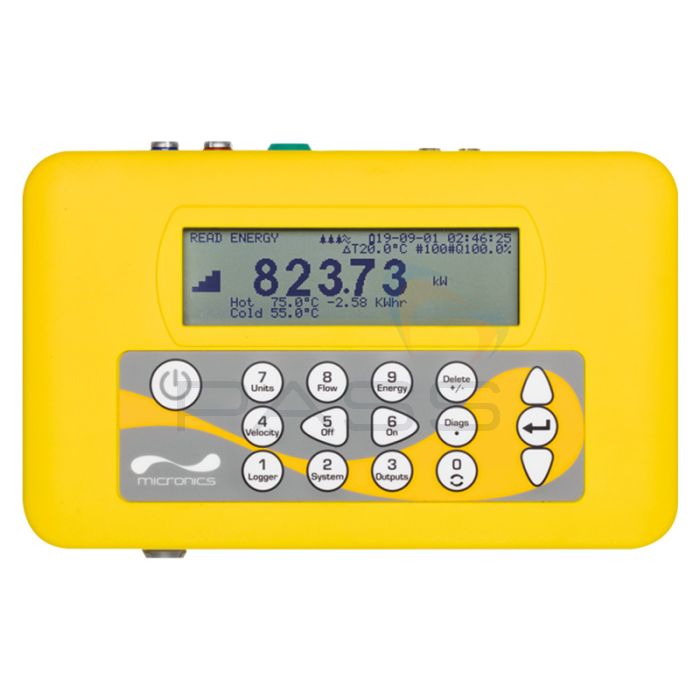

The PF333 Portaflow electronics are housed in a specifically designed enclosure, which incorporates the graphic display, keypad, sensor, and output facility connections. Set-up of the unit is carried out by selecting the options displayed in the main menu and by following the simple instructions in any of the user-selectable languages.
The use of a rechargeable battery allows the unit to be operated for over 14 hours depending on the facilities used. Continuous operation via the PSU is also possible while recharging the battery. Battery status, signal strength, time and date, as well as flow and energy information, are all continuously displayed, keeping the user fully aware of the measurement process.
The Data Logger delivers 100,000,000 data points, 12 named sites, and the ability to download via USB to CSV file and export to Excel. It also logs application details, time, date, flow rate, forward total, reverse total, flow velocity, flow side temperature, return side temperature, temperature difference, power, total energy, signal Quality, signal SNR, and signal status.
Features
- Ultrasonic, cross-correlation flow measurement
- Reynolds number correction
- Easy to install
- Simple to follow set-up menu
- Sensor cables, blocks, and temp sensors, IP54 with IP68 option
- Flow Range - 0.1m/sec to 20m/sec bi-directional
- New cross-correlation flow measurement system
- Display - 64 x 240 pixels graphic display
- Set-up via 16 key control panel
- Battery or mains operation
- Rechargeable NiMH battery
- Battery Life - 14 hours 2.5 hours charge time, depending on load
- Power - 110 - 240VAC +/-10% supply via PSU
- 4 user selectable languages including English, German, French, and Spanish
- Accuracy Pipe ID > 75mm - ±0.5% to ±2% of flow reading for flow rate >0.2m/s
- Accuracy Pipe ID 13-75mm - ±3% of flow reading for flow rate >0.2m/s
- CE approved
- Temperature sensors with PF333 energy meter
- Improved data logger logs energy and flows, all date stamped
Product Range
- Micronics 780-6004 PF333 HM A Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6004HT PF333 HM A HT Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6004HTM PF333 HM A HT / Magnetic Guiderails Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6004IP68 PF333 HM A IP68 Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6004IP68M PF333 HM A IP68 / Magnetic Guiderails Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6004M PF333 HM A Magnetic Guiderails Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6006 PF333 HM B Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6006HT PF333 HM B HT Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6006HTM PF333 HM B HT / Magnetic Guiderails Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6006IP68 PF333 HM B IP68 Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6006IP68M PF333 HM B IP68 / Magnetic Guiderails Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6006M PF333 HM B Magnetic Guiderails Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6008 PF333 HM AB Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6008HT PF333 HM AB HT Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6008HTM PF333 HM AB HT / Magnetic Guiderails Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6008IP68 PF333 HM AB IP68 Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6008IP68M PF333 HM AB IP68 / Magnetic Guiderails Portable Ultrasonic Liquid Flow/Heat Meter
- Micronics 780-6008M PF333 HM AB Magnetic Guiderails Portable Ultrasonic Liquid Flow/Heat Meter
Specifications
- Measurement Technique: Ultrasonic, cross-correlation transit time method for flow measurement and PT100 Class B 4 wire for temperature measurement
- Heat Meter Standard: The Heat/Energy calculation is designed to comply with EN1434 section 6
- Temperature Sensors: Clamp-on PT100 Class B 4 wire, range 0°C - 200°C (32°F - 392°F), resolution 0.1°C (0.18°F). The minimum delta T is 0.3°C IP54 with IP68 option
- Carry Case: The PF333 is supplied in a hard-wearing IP67 carry case
- PF222A with A Transducers: 13mm OD to 115mm OD pipes IP54 with IP68 option
- PF222B with B Transducers: 50mm OD to 2000mm OD pipes IP54 with IP68 option.
- Transducer Operating Temp: A & B -20°C to +135°C. A & B Optional Hi-Temp -20°C to +200°C
- Turn Down Ratio: 100:1
- Data Communications: USB, supports most USB 2.0 BOM drives
- 3 x Pulse Output: Pulse or Frequency. Opto-isolated MOSFET relay. Max Current: 150mA. Isolation: >100V AC/DC. Pulse for volume flow and alarms, the frequency for flow rate. The pulse outputs can be configured including flow totals, energy, loss of signal, and low flow alarms.
- 4-20mA Output: 4-20mA flow proportional output, optically isolated 1500 volts, 620 ohms maximum load
- Volumetric Mode: Pulse repetition rates: up to 50 pulses/sec (depending on pulse width)
- Frequency Mode: Max. pulse frequency: 200Hz
- Flow at Max Frequency: User selectable
| SKU | 780-6004/6/8X |
|---|
