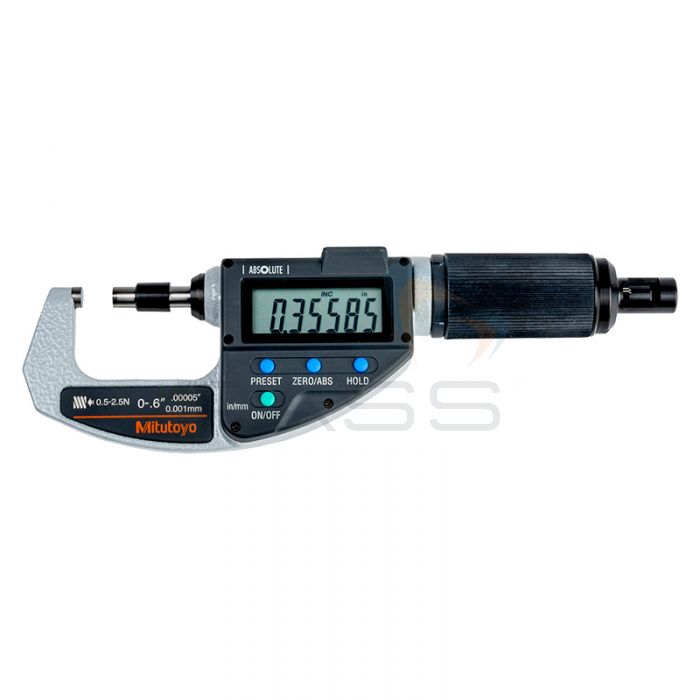

The Mitutoyo Series 227 Absolute Digital Adjustable Measuring Force Micrometer is ideal for measuring wire, paper, and plastic/rubber parts. It is designed for applications requiring a constant/ low force and, to this end, features a ratchet mechanism in the thimble which applies a constant force to the workpiece. Application of a constant measuring force and high-accuracy measurement make the Mitutoyo Series 227 Absolute Digital Adjustable Measuring Force Micrometer suitable for use by operators of all experiences. It is a compact and ergonomic instrument with a carbide measuring face and non-rotating spindle. The Mitutoyo Series 227 Absolute Digital Adjustable Measuring Force Micrometer also features the following functions:
- Adjustable Measuring Force Mechanism
- Hold
- Origin Point Setting
- ABS Measurement System
- Low Voltage Alarm
- Data Output
- Pre-setting (models MIT-227-213-20, MIT-227-215-20, and MIT-227-217-20)
The Mitutoyo Series 227 Absolute Digital Adjustable Measuring Force Micrometer is a precise, practical instrument with an array of functions.

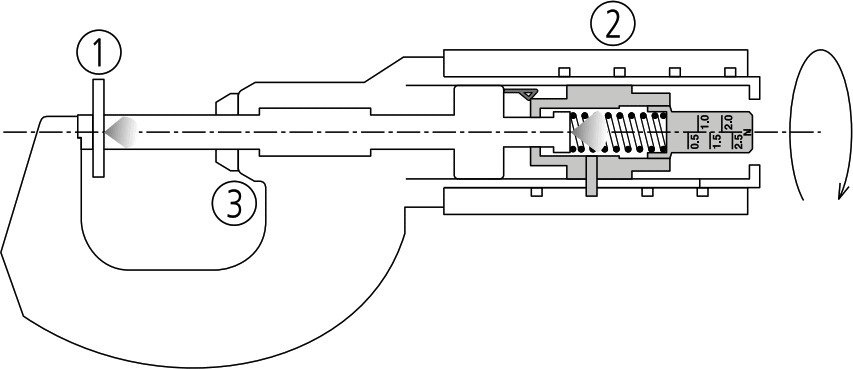

Mitutoyo Series 227 Micrometer Operation
- Measuring force is generated by the action of trapping a
workpiece between the spindle face and the anvil. - The constant-force unit applies the specified measuring
force. - When the preset measuring force is reached, the value on
the LCD is automatically held and the hold symbol
appears. (To cancel the hold, reverse the thimble more
than 1/10 revolution and press the hold button.)

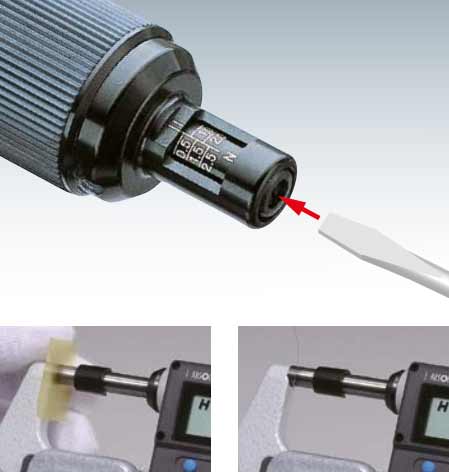

Adjustable measuring force: to preset the measuring force, adjust the measuring force
setting scale on the thimble with the screwdriver supplied.
Mitutoyo Series 227 Absolute Digital Adjustable Measuring Force Micrometer Key Features
- Ideal for measuring wire, paper, and plastic/ rubber parts
- Designed for applications requiring a constant/low force
- The ratchet mechanism in the thimble applies a constant force to the workpiece
- Easy to use
- Ergonomic
- Compact
- Carbide measuring face
- Non-rotating spindle
- Adjustable Measuring Force Mechanism
- Hold function
- Origin Point Setting function
- ABS Measurement System function
- Low Voltage Alarm
- Data Output function
- Pre-setting function (models MIT-227-213-20, MIT-227-215-20, and MIT-227-217-20)
- A precise, practical instrument with an array of functions
What’s Included?
- Your Choice of Mitutoyo Series 227 Absolute Digital Adjustable Measuring Force Micrometer
Mitutoyo Series 227 Absolute Digital Adjustable Measuring Force Micrometer Technical Specifications
Dimensions (mm)
Range | L | a | b | c | d | e |
---|---|---|---|---|---|---|
0-.6" | 0 | 7 | 25 | 2 | 15 | 17 |
0-.4" | 10 | 22 | ||||
.6-.1.2" | 15.24 | 8.5 | 36 | 12.8 | 15 | 17 |
.4-.8" | 10.16 | 17.8 | 10 | 22 | ||
.8-1.2" | 20.32 | 7.8 |
SKU | 227-21X-20 |
---|
