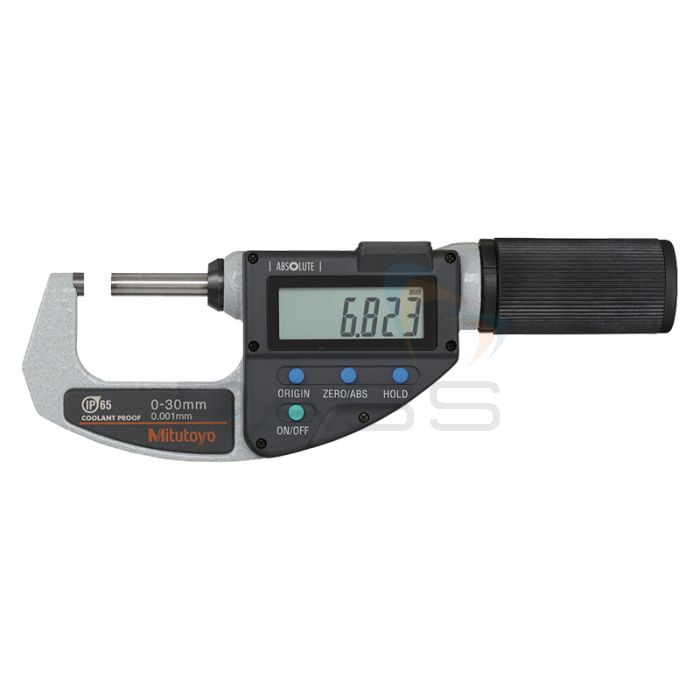

Mitutoyo Series 293 Absolute Digital QuickMike Micrometer: 0-106.68mm / 0-4.2"
- Speedy spindle feed of 10mm per thimble rotation
- Carbide measuring face
- Absolute linear scale; only set the origin once
SKU
293-67X-20

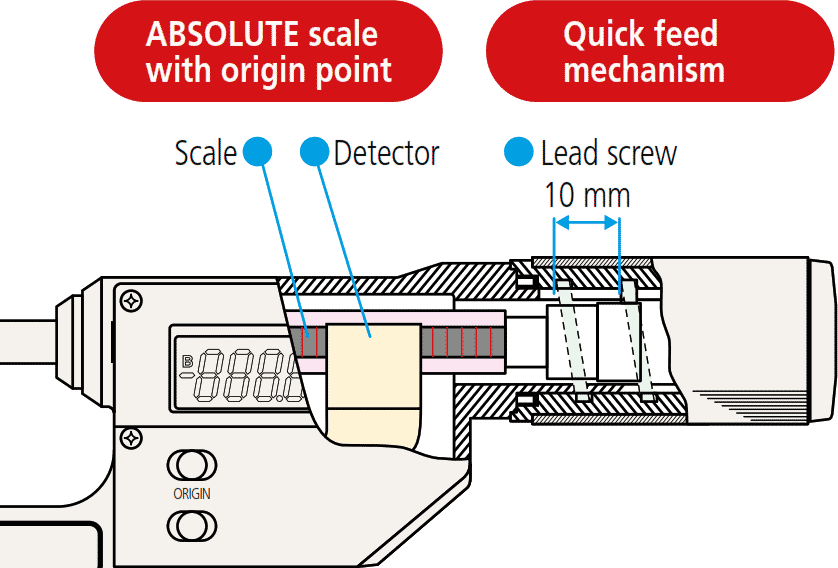

The Mitutoyo Series 293 Absolute Digital QuickMike Micrometer can be used to measure a wide range of different-sized features. To this end, it has a speedy spindle feed of 10mm per thimble rotation. The Mitutoyo Series 293 Absolute Digital QuickMike Micrometer is also equipped with a carbide measuring face and is supplied with a ratchet thimble for ensuring a constant measurement force. Its absolute linear scale means you only need to set the origin once; this value will be maintained throughout the Mitutoyo Series 293 Absolute Digital QuickMike Micrometer’s battery life.
Mitutoyo Series 293 Absolute Digital QuickMike Micrometer Key Features
- Measure a wide range of different-sized features
- Speedy spindle feed of 10mm per thimble rotation
- Carbide measuring face
- Ratchet thimble for ensuring a constant measurement force
- Absolute linear scale
- Only set the origin once
What’s Included?
- Your Choice of Mitutoyo Series 293 Absolute Digital QuickMike Micrometer
Offers
Free Book with £100+ Mitutoyo Orders
This winter when you buy over £100 worth of Mitutoyo products online you’ll receive either a free Mitutoyo Engineers’ Reference Book or a Metrology Handbook depending on the value of your item(s). Available for a limited time or while stocks last, this offer is perfect for metrology professionals and engineers requiring a reference guide complete with conversions, measurement principles, standards, and practices. For further details visit the Mitutoyo Online Offer Free Book Page
Technical Information
Specification
Mitutoyo Series 293 Absolute Digital QuickMike Micrometer Technical Specifications

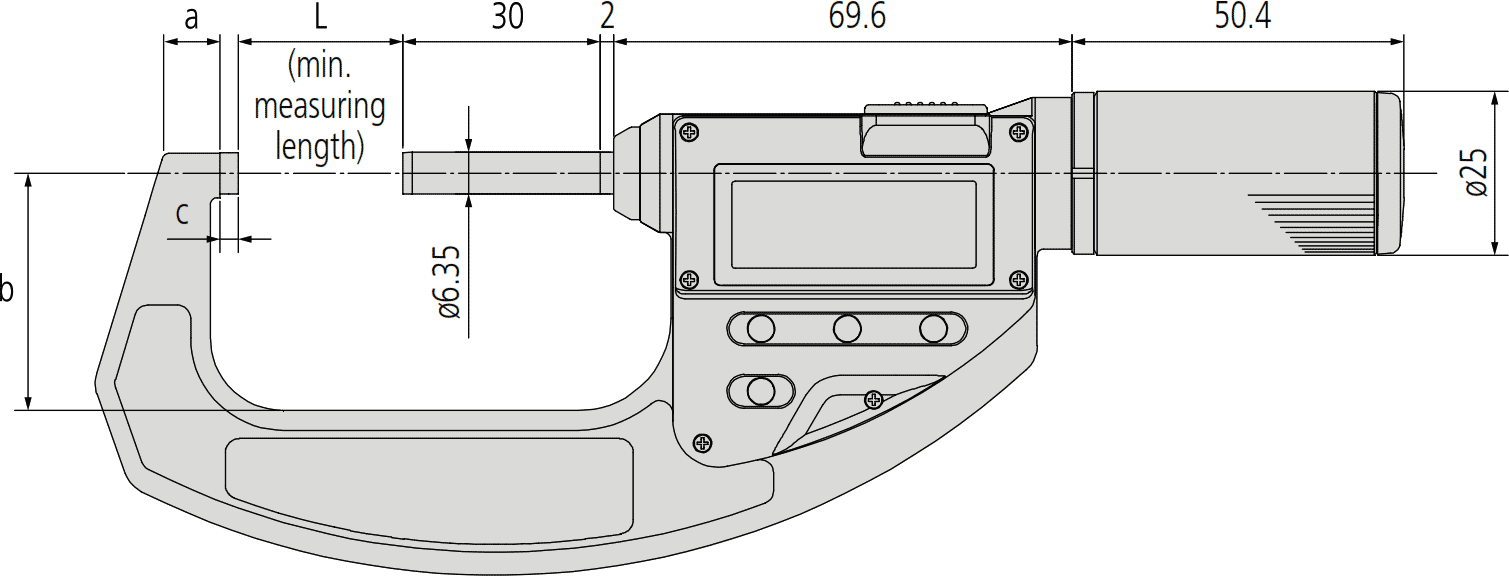

Dimensions (mm)
| Range | L | a | b | c |
|---|---|---|---|---|
| 0-1.2" | 0 | 7 | 25 | 2 |
| 1-2.2" | 25.4 | 8.5 | 36 | 2.8 |
| 2-3.2" | 50.8 | 10.3 | 47 | |
| 3-4.2" | 76.2 | 10.7 | 60 |
