Moore and Wright Traditional Drill & Standard Wire Gauge
- Wire or drill gauges
- Four models available
SKU
MW-10-X
The Moore & Wright range of Traditional Wire and Drill Gauges combines durability with practical precision. The Wire Gauges, model 1052 (covering sizes 1–36 SWG) and model 1053M (covering sizes 0.2–10.0 mm), have a compact two-part design with a corner pivot. Each slot is marked with its nominal size and precision-milled.
For drill sizing, the models 1066M (with 96 holes, in 0.1 mm increments from 0.5–10.0 mm) and 1067M (with 26 holes, in 0.5 mm increments from 0.5–13.0 mm) are made with high-grade tool steel. They have a brushed finish and laser-etched markings.
Product Range
- Moore & Wright 1052 Traditional Wire Gauge, 1-36 SWG Slots
- Moore & Wright 1053M Traditional Wire Gauge, 40 Slots, 0.2-10.0mm
- Moore & Wright 1066M Traditional Drill Gauge, 96 Holes, 0.1mm, 0.5-10.0mm

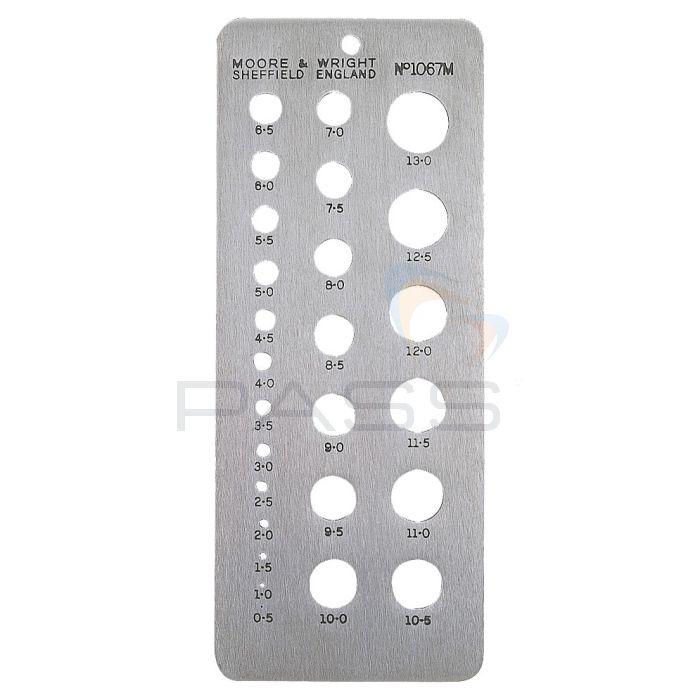

- Moore & Wright 1067M Traditional Drill Gauge, 26 Holes, 0.5mm, 0.5-13.0mm
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| No. of Slots | Range of Slot Size | Graduation (mm) | |
|---|---|---|---|
| 1052 | 36 | 1-36 SWG | |
| 1053M | 40 | 0.2-10.0mm | |
| 1066M | 96 | 0.5-10mm | 0.1 |
| 1067M | 26 | 0.5-13mm | 0.5 |
