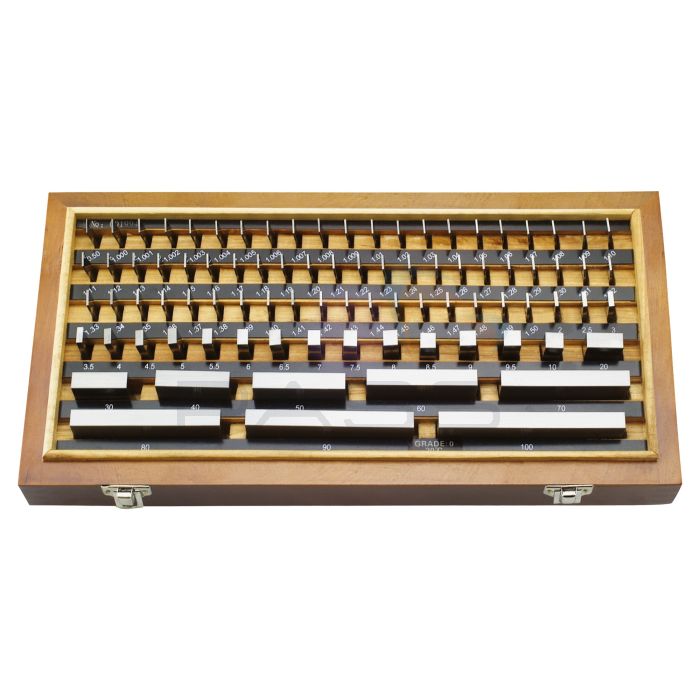

Moore & Wright Metric Carbide Gauge Blocks, 710 Series
- Excellent rigidity
- 32, 47, 87, or 103 pieces
- Grade 0, 1 or 2
SKU
MW-MW710-X
The Moore & Wright 710 Series Metric Carbide Gauge Blocks conform to DIN 861 standards. These blocks deliver exceptional wear resistance and have a service life up to six times longer than traditional steel equivalents. Available in 32, 47, 87, and 103-piece sets and Grades 0, 1, and 2. Each gauge block is individually engraved with its size and serial number for full traceability and includes a Moore & Wright certificate of conformance.
Key Features
- Standard DIN 861
- Service life is up to 6 times that of steel
- Every gauge block has its serial number
- Made from high-quality stress-relieved alloy steel
- Excellent rigidity
- Size and serial number are engraved on each gauge block
- Available in 3 grades - Grade 0 for Calibration, Grade 1 for Inspection, Grade 2 for workshop
- All sets have a MOORE & WRIGHT certificate
Product Range
- Moore & Wright MW710-01 Metric Carbide Gauge Blocks, 103 Pieces, Grade 0
- Moore & Wright MW710-02 Metric Carbide Gauge Blocks, 103 Pieces, Grade 1
- Moore & Wright MW710-03 Metric Carbide Gauge Blocks, 103 Pieces, Grade 2
- Moore & Wright MW710-04 Metric Carbide Gauge Blocks, 87 Pieces, Grade 0
- Moore & Wright MW710-05 Metric Carbide Gauge Blocks, 87 Pieces, Grade 1
- Moore & Wright MW710-06 Metric Carbide Gauge Blocks, 87 Pieces, Grade 2
- Moore & Wright MW710-07 Metric Carbide Gauge Blocks, 47 Pieces, Grade 0
- Moore & Wright MW710-08 Metric Carbide Gauge Blocks, 47 Pieces, Grade 1
- Moore & Wright MW710-09 Metric Carbide Gauge Blocks, 47 Pieces, Grade 2
- Moore & Wright MW710-10 Metric Carbide Gauge Blocks, 32 Pieces, Grade 0
- Moore & Wright MW710-11 Metric Carbide Gauge Blocks, 32 Pieces, Grade 1
- Moore & Wright MW710-12 Metric Carbide Gauge Blocks, 32 Pieces, Grade 2
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| No. Blocks | Nominal Size | Quantity | Step (mm) |
|---|---|---|---|
| 103 | 1.005 | 1 | |
| 1.01-1.49 | 49 | 0.01 | |
| 0.50-24.50 | 49 | 0.5 | |
| 25.0-100.0 | 4 | 25 | |
| 47 | 1.005 | 1 | |
| 1.01-1.09 | 9 | 0.01 | |
| 1.10-1.90 | 9 | 0.1 | |
| 1.0-24.0 | 24 | 1 | |
| 25.0-100.0 | 4 | 25 | |
| 87 | 1.001-1.009 | 9 | 0.001 |
| 1.01-1.49 | 49 | 0.01 | |
| 0.50-9.50 | 19 | 0.5 | |
| 10.0-100.0 | 10 | 10 | |
| 32 | 1.005 | 1 | |
| 1.01-1.09 | 9 | 0.01 | |
| 1.10-1.90 | 9 | 0.1 | |
| 1.0-9.0 | 9 | 1 | |
| 10.0-30.0 | 3 | 10 | |
| 60 | 1 |
