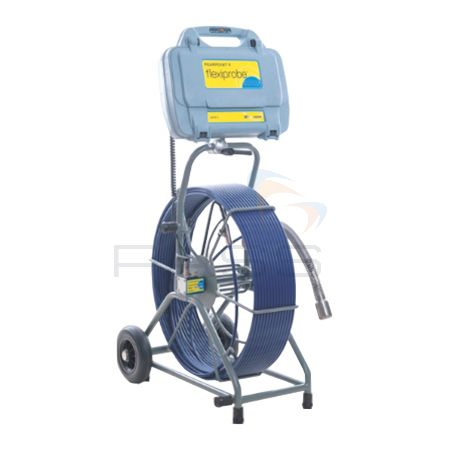

Pearpoint P540 (Dual Reel), 640Hz & P550c Inspection Camera System
- P541 reel
- P542 reel
- 1"/25mm & 2"/50mm PAL cameras
SKU
10/P540-640-P550C
These Pearpoint inspection systems offer both versatility and high performance, they are engineered to meet a wide range of inspection requirements, ensuring efficiency, accuracy, and reliability.
The robust build, high-resolution cameras, and advanced features make your inspection tasks simpler, faster, and more efficient. The controller has a high-definition 10.1" TFT display and the system supports multiple reporting standards, including WRc's MSCC3, 4, and 5 condition codes.
The systems are available with 30m or 60m black P541 reels and a choice of blue or black 60m P542 reels.
Key Features
- Intuitive Control
- Specialised Dual Reel System
- High-Resolution Cameras
- Robust Construction
- Multi-Standard Reporting
- Advanced Connectivity
What's Included?
- P540 PAL Dual Reel System with P550c Controller with Built-in Battery
- 128GB Internal Memory
- Blank USB Memory Stick
- Indoor Mains PSU/Charger with Mains Lead
- Vehicle Charge Lead
- Two Controller to Reel Link Cables
- 640Hz Flexisonde
- Two Camera Skid Balls, Skids Set
Product Range
- Pearpoint 10/P540-640-3060-550-UK P541 30m Black, P542 60m Dark Blue, 1" & 2" PAL Cameras
- Pearpoint 10/P540-640-3060-B-550-UK P541 30m Black, P542 60m Black, 1" & 2" PAL Cameras
- Pearpoint 10/P540-640-6060-550-UK P541 60m Black, P542 60m Dark Blue, 1" & 2" PAL Cameras
- Pearpoint 10/P540-640-6060-B-550-UK P541 60m Black, P542 60m Black, 1" & 2" PAL Cameras
Call for Pricing
Call 01642 931 329 or complete the form:
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Cameras | 1"/25mm camera | 1 ¼"/32mm self-levelling camera | 2"/50mm self-levelling camera |
|---|---|---|---|
| Camera Dimensions | 1" x 1.52"/25.4 x 38.7mm | 1.23" x 2.6"/31.24 x 66mm | 1.89" x 2.87"/48 x 72.8mm |
| Camera Weight | 0.1lbs /0.06kg | 0.4lbs/0.18kg | 0.8lbs/0.36kg |
| Camera Construction | Stainless steel/ polycarbonate | Stainless steel/sapphire glass /polycarbonate | Stainless steel/ polycarbonate |
| Power | 1.8W | 1.3W | 3.8W |
| Environmental | IP68 to 330' (100m)/11bar | IP68 to 230' (70m)/7bar | IP68 to 330' (100m)/11bar |
| Temperature | Storage: -4°F to 176°F/-20°C to +80°C Operating: 14°F to 122°F/-10°C to +50°C |
||
| Focus | Manually adjustable | Fixed | Manually adjustable |
| Focal range | 10mm to ∞ | Fixed | 10mm to ∞ |
| Lighting | Ultra bright white LEDs | ||
| LED luminance | ≥ 75lm | ≥ 150lm | ≥ 208lm |
| Active pixels (HxV) | 656 x 492 NTSC 768 x 576 PAL |
640 x 480 (NTSC) 640 x 576 (PAL) |
768 x 492 NTSC 765 x 582 PAL |
| Horizontal resolution | ≥ 460TVL | ≥ 420TVL | ≥ 460TVL |
| Feature | Specification |
|---|---|
| Battery capacity | Internal Li-Ion Battery (4S2P) - 14.68V, 6.4Ah (93.95Wh) |
| Battery run-time | Up to one day's typical usage, 7.5hrs view only /5hrs continuous recording* |
| Cameras | Forward View with 120 Lumen LEDs Pan/Tilt with 210 Lumen LEDs Pan, Tilt, and 10 x optical Zoom with 420 Lumen LEDs |
| Connectivity | USB 2.0 (x3), HDMI video out, analog video in (PAL/NTSC), headphones out, microphone in, rod/camera/drum connectivity and 802.11 b/g/n WiFi |
| Construction | High-impact ABS and powder-coated, zinc-plated mild steel |
| Controllers | Flexitrax P550c command module with integrated joysticks to control the camera and crawler Optional pendant controller for deployment phase |
| Dimensions | 17.5" x 15.2" x 6.1"/445mm x 385mm x 155mm |
| Display | 12.1"/307mm, 1280 x 800 color LCD |
| Drums | Manual drum or powered drum, with cable length options from 500' to 1000'/150m to 305m |
| Environmental Protection | Flexitrax P550c controller: IP55 Power supply/charger: IP54 rated for indoor use |
| Input power requirements | 10-30V, 60W |
| Power sources | Power from drum, external mains PSU or internal battery |
| Power supply | Mains input 100-240VAC, 50-60Hz, 1.7A DC output 16V, 3.75A, 60W |
| Recording formats | Video: H.264. Audio: MP3. File format: MP4 |
| Report File Formats | Basic reports, MSCC3 & 4: docx MSCC5: docx or Xml WinCan: Xml Video: MP4 Image: JPEG |
| Storage | Integral 128Gb and support of USB flash storage |
| Temperature | Storage: 4°F to 176°F/-20°C to +80°C Operating: 14°F to 122°F/-10°C to +50°C Charging: 32°F to 104°F/0°C to +40°C |
| Weight | 16lb /7.25 kg |
| Wheels | Small, medium and large solid rubber and large pneumatic for conventional/silted pipes Rasp wheels for smooth/relined pipes |
