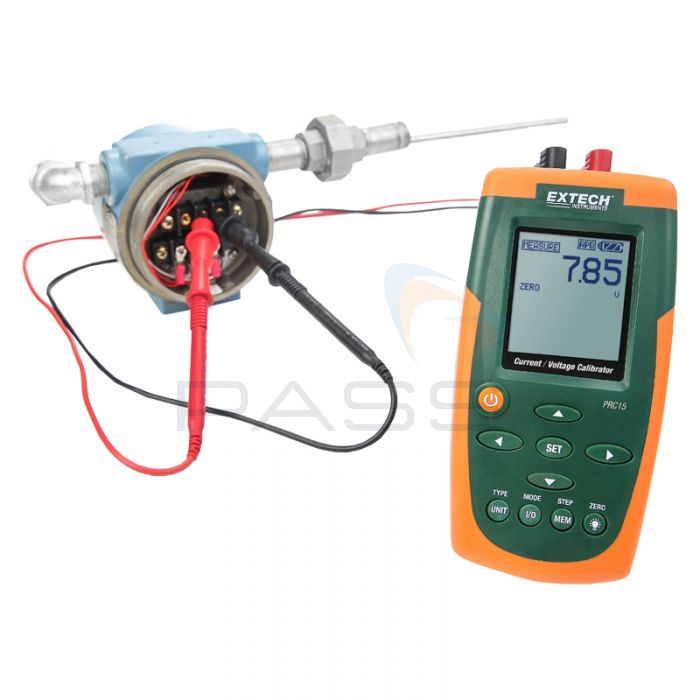

For a limited time purchases of the Extech PRC15 Current & Voltage Calibrator come with a free Extech Heavy-Duty Tool Bag.
An upgraded version of the PRC10, the Extech PRC15 is has 0-24mA (-25% to 125%) signal source and 0 to 20V DC calibration source.
Like the lesser product in this range the PRC15 is also a portable, lightweight calibrator that can be used in just one hand. This gives this tester a distinct advantage over other similar calibrators which are generally much bigger, bulkier and require two hands to operate.
The product is ideally suited for a wide variety of applications including field testing and servicing, bench research, development and calibration and simulation on devices such as transducers, transmitters, indicators, controllers and recorders.
Extech PRC15 Current and Voltage Calibrator Key Features
- Palm-sized device for ease of use
- Large dot-matrix LCD digital screen
- Standard banana I/O ports
- Large battery bank enables tester to be used for longer
- Up to five adjustable calibration presets
- External power adapter
- 0 to 24mA (-25 to 125%)
- 0 to 20V DC calibration source
Full List of Products Included
- Extech PRC15 Current and Voltage Calibrator
- Test Leads
- Alligator Clips
- 100V-240V AC Universal Adapter with 4 Plugs
- 6 x 1.5V AA Batteries
- Hard Carrying Case
Files & Downloads:
Extech PRC15 Technical Specifications
|Source||Output 0 to 24mA current for loads up to 1000 ohms (-25% to 125%); Output 0 to 20V (PRC15 only)|
|Measure||0 to 50mA current signal (-25 to 230%); 0 to 19.99V (PRC15 only)|
|Power/Measure||Provides power (24VDC) to loop & measures current (PRC10 only)|
|Ranges and Displays||Resolution|
|0 to 19.99mA||0.01mA|
|0 to 24.0mA||0.1mA|
|0 to 1999mV||1mV|
|0 to 20.00V||10mV|
